Ningbo Track Undercarriage & Gearbox Imp&Exp Co., Ltd.
China Manufacturer with main products: Track Undercarriage, Crawler Undercarriage, Tracked Undercarriage, Steel Track, Rubber Track, Track System, Track Frame, Crawler Mounted... |

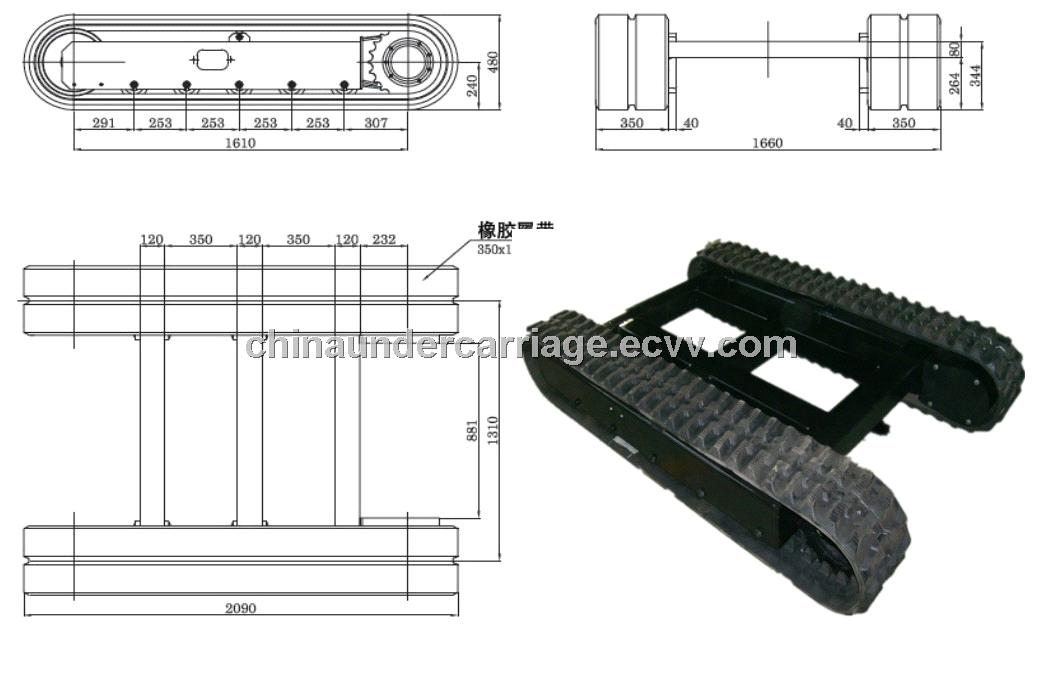

8 Ton Rubber Track Frame
| FOB Price: | 1.00 - 2,000.00 USD/Set |
|---|---|
| Supply Ability: | 1,500 Set/Sets per Month |
| Shipping: | 10 days |
| Payment Terms: | L/C, T/T |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Zhejiang in China |
| Packaging Details: | pallet |
Quick Details
- Brand Name: kemer-bonny
- Model Number: KRT series
- Load capacity: 1-60 ton
- Travelling speed: 0-10km/hr
- Track drive: dual speed final drive
- Dimension: custom built
- Contact: Cathy Hsu
- E mail: sales(at)bonnyhydraulic(dot)com
- Skype: cathy-bonny
- Tel: 0086-151 6816 2360
Specifications
8 ton rubber track chassis (track undercarriage) manufacturer
Rubber track frame, rubber track chassis, rubber track system, rubber crawler undercarriage, rubber tracked undercarriage, drilling rig rubber track undercarriage, crusher rubber track undercarriage, excavator track undercarriage
Model: KRT-8000
Load capacity: 8000kgs
Travelling speed: 0-6km/hr
Gradient: 30 degree
Track drive: Dual speed final drive
Dimension: different dimensions and requirements are available.
Delivery Time: 10-15 days
Warranty: 12 months
Export area: Australia, German, Ireland, United States, Indonesia, Turkey, India etc.
More than 100 models from 0, 5 to 60 ton of loading capacity, steel or rubber tracked, fixed or with widening system customizable on the requirement of our customers
Years of experience in this field, allow Kemer to be at now a leading manufacturer of crawler undercarriages and to have a full range of products for all applications and a capability in design new undercarriages suitable to any customer need.
The abilities and skillness gained over the years, allow now our technicians to handle undercarriage components as a tool for the realization of any project. An undercarriage is no longer an assembly of components, but a machine designed for a purpose.
Any machine has its own requirements and our engineers know what they are.
Today Kemer designs and manufactures undercarriage to major OEMs worldwide, providing a dedicated and timely service, before, during and after the undercarriage construction and ensuring a flawless after-sales service set to follow customers in 40 countries where are also working at now.
|
MODEL
|
Dynamic
capacity |
Static
capacity |
Weight
kg. |
Press. Bar
|
oil flow
L/min |
Torque
Nm to engine |
Grad.
|
Speed
km/h |
|
KRT-1500
|
1200
|
1500
|
330
|
270
|
17
|
2000
|
65%
|
1.7
|
|
KRT-2500
|
2500
|
3000
|
380
|
220
|
35
|
4723
|
65%
|
2/3.2
|
|
KRT-3500
|
3500
|
4000
|
650
|
220
|
35
|
4723
|
65%
|
2/3.5
|
|
KRT-5000
|
5000
|
6000
|
900
|
220
|
55
|
8330
|
65%
|
2/3.7
|
|
KRT-6000
|
6000
|
7000
|
1280
|
220
|
55
|
8330
|
65%
|
2/3.7
|
|
KRT-8000
|
8000
|
9500
|
1550
|
300
|
82
|
11700
|
65%
|
2.8/4.7
|
|
MODEL
|
A
Length |
B
Center Distance |
C
Height |
D
Total Width |
E
Width of track shoe |
F
Height of Cross beam |
No. of
roller |
|
KRT-1500
|
1420
|
1066
|
350
|
980
|
230
|
165
|
3+3
|
|
KRT-2500
|
1850
|
1370
|
480
|
1220
|
250
|
245
|
4+4
|
|
KRT-3500
|
1980
|
1511
|
500
|
1520
|
300
|
250
|
5+5
|
|
KRT-5000
|
2500
|
1950
|
550
|
1800
|
350
|
265
|
6+6
|
|
KRT-6000
|
2905
|
2355
|
550
|
1800
|
400
|
265
|
7+7
|
|
KRT-8000
|
2950
|
2450
|
600
|
1800
|
400
|
310
|
7+7
|
Standard model for your reference, Kemer also offers custom built units to meet specific customer requirements.
