30 Ton Steel Track Undercarriage Manufacturer

FOB Price:	1.00 - 4,000.00 USD/Set
Supply Ability:	1,500 Set/Sets per Month
Shipping:	10 days
Payment Terms:	L/C, T/T

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Zhejiang in China
Packaging Details:	pallet

Quick Details

Brand Name: kemer-bonny
Model Number: KST series
Load capacity: 1-60 ton
Travelling speed: 0-10km/hr
Track drive: Rexroth GFT track drive
Dimension: custom built
Contact: Cathy Hsu
E mail: sales(at)bonnyhydraulic(dot)com
Skype: cathy-bonny
Tel: 0086-151 6816 2360

Specifications

30 ton steel crawler undercarriage manufacturer

Steel track frame, steel track chassis, steel track system, steel crawler undercarriage, steel tracked undercarriage, drilling rig steel track undercarriage, crusher steel track undercarriage, excavator track undercarriage

Model: KST-30000

Load capacity: 30000kgs

Travelling speed: 0-6km/hr

Gradient: 30 degree

Track drive: Dual speed final drive

Dimension: different dimensions and requirements are available.

Delivery Time: 10-15 days

Warranty: 12 months

Export area: Australia, German, Ireland, United States, Indonesia, Turkey, India etc.

More than 100 models from 0, 5 to 60 ton of loading capacity, steel or rubber tracked, fixed or with widening system customizable on the requirement of our customers

Years of experience in this field, allow Kemer to be at now a leading manufacturer of crawler undercarriages and to have a full range of products for all applications and a capability in design new undercarriages suitable to any customer need.

The abilities and skillness gained over the years, allow now our technicians to handle undercarriage components as a tool for the realization of any project. An undercarriage is no longer an assembly of components, but a machine designed for a purpose.

Any machine has its own requirements and our engineers know what they are.

Today Kemer designs and manufactures undercarriage to major OEMs worldwide, providing a dedicated and timely service, before, during and after the undercarriage construction and ensuring a flawless after-sales service set to follow customers in 40 countries where are also working at now.

MODEL	Dynamic capacity	Static capacity	Weight kg.	Press. Bar	oil flow L/min	Torque Nm to engine	Grad.	Speed km/h
KST-3500	3500	4000	750	220	35	4723	65%	2/3.2
KST-6000	6000	7000	1350	220	55	8330	65%	2/3.7
KST-8000	8000	9500	1830	300	82	11700	65%	2.8/4.7
KST-10000	10000	11300	2350	350	100	14800	65%	3/5.1
KST-12000	12000	15000	2950	350	124	22500	65%	2.9/4.9
KST--15000	15000	18000	3300	350	140	24000	65%	3.2/5.5
KST-20000	20000	25000	4300	350	220	38000	65%	3.5/5.4
KST-30000	30000	37000	6500	330	260	59000	65%	2.5/4.6
KST-40000	40000	480000	7100	350	290	72800	65%	2.3/4.3

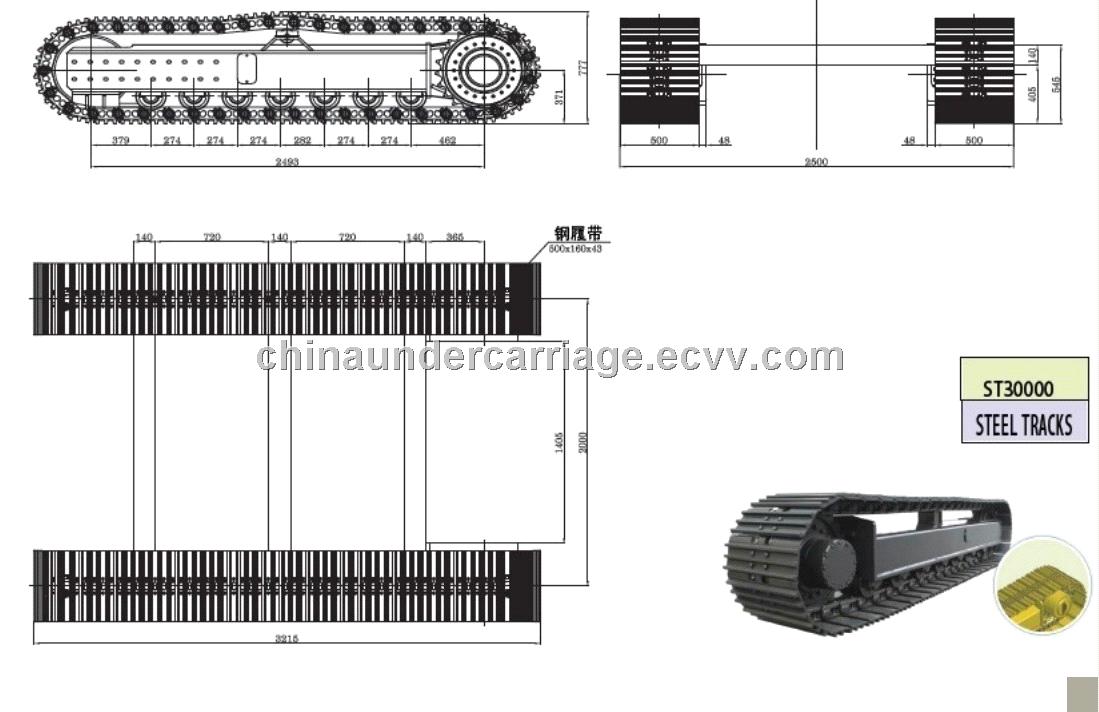

MODEL	A Length	B Center Distance	C Height	D Total Width	E Width of track shoe	F Height of Cross beam	No. of roller
KST-3500	2030	1500	485	1800	300	225	4+4
KST-6000	2467	1950	549	1700	300-400	240	5+5
KST-8000	2783	2265	548	1800	400-450	255	8+8
KST-10000	3800	3200	600	1700	400-500	280	9+9
KST-12000	3282	2575	720	2000	400-600	345	9+9
KST-15000	3666	2923	753	2000	500-800	360	8+8
KST-20000	4065	3323	786		500-800	375	8+8
KST-30000	4530	3730	836		500-800	405	9+9
KST-40000	4888	4090	880		500-800	420	10+10

Standard model for your reference, Kemer also offers custom built units to meet specific customer requirements.
