Shenzhen 3nh Technology Co., Ltd.
China Manufacturer with main products: Color Difference Meter, Color Reader, Color Light Box, Resolution Test Chart, Fluorescent Tube, Color Card, Fluorescent Tubes, Color Chart |
Colour Meter
| Supply Ability: | 10,000 Set/Sets per Quarter |
|---|---|
| Shipping: | within 2 days |
| Payment Terms: | T/T |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Guangdong in China |
| Packaging Details: | Instrument Box |
Quick Details
- Model: NR200
- Brand: 3nh
- Repeatability: 0.08
- Light Source: D65
- Storage: 20000
Specifications

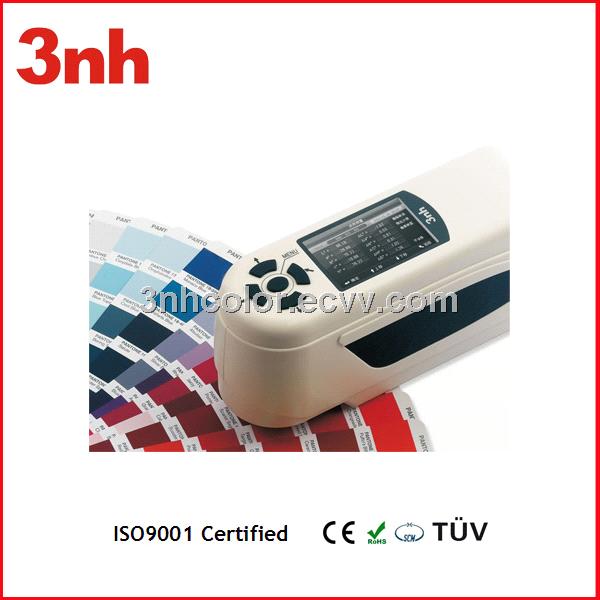

Model: NR200
3nh colorimeter are widely used in plastic, metal, electronic, paint, ink, textile, garment, printing and dyeing, food, fruit, medical, cosmetic industries. Colorimeter has the function to compare color difference and control the product quality.
Model: NR200 -Portable
Display Mode: CIE L*a*b; CIE L*a*b*C*h; CIE XYZ;
Color Difference Formula: dE*ab; dL*ab; dE*C*H
Illuminating/viewing geometry: 8/d (8 degree illumination angle/diffuse viewing)
Light Source: D65
Detector: Silicon photoelectric diode
Measuring Aperture: 8mm
Measuring Conditions: Observer: CIE 10 Standard Observer
Measuring Range: L: 0 to 100
Repeatability: Standard deviation within dE*ab 0.08 (Measurement Conditions: Average of 30 measurements of standard white plate)
Storage: 100 pcs standard samples; 20000 pcs test samples
Minimum Interval between Measurements: Approx. 1 sec
Battery Life: More than 3000 measurements
Lamp Life: more than 1.6 million times in 5 years
Display: TFT True-color; 2.8 inch@(16:9)
Interface: Model B: USB RS-232: Baud rate 19200bps
Humidity Range: 0~85% relative humidity, no condensation
Weight: 500g
Dimensions: 205 x 70 x 100 mm
Size of the Packing: 435 x 205 x 345mm
Standard Accessories: AC Adapter; Li-ion Battery; Operation Manual; Software CD; USB Cable; White Calibration Cover; 8mm Measuring Aperture
Optional Accessories: Mini-printer, Universal Test Components, Powder Test Box
Applied:
1. Color matching in injection and quality control in production process
2. Color-difference detection and color-difference batch control in printing process
3. Color-difference analysis of spray paint surface and electroplate surface
4. Color-difference of different areas of the metal treating surface
5. Quality control in color difference in sample and the product
6. Color difference inspection of batch products in outdoors
7. On-line monitoring of color difference in production process
