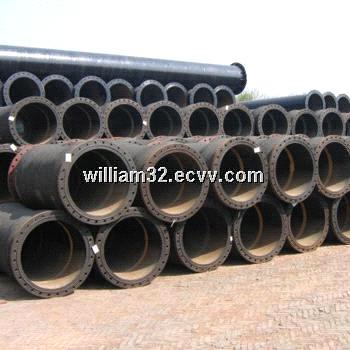

Dredge Hose / Dredge Rubber Hose / Dredging Discharge Rubber Hose / Dredging Discharge Hose Pipe
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|
Quick Details
- Brand Name: Lange
- Model Number: MDRE080-DH001
Specifications
The dredging pipes are the necessary parts for a Suction Dredger,they can be used to connect the discharge area and the Dredger.
We manufacure complete dredge pipes(or pipelines)to transport the mixture out of the dredger and discharge areas. They are key components in the transport process and dredge cycle and are thus exposed to varied but often high levels of wear. They cover a range of pipe patterns and structures varying from simple straight pieces to complex three and four branched pipe assemblies. All are designed and specified according to the application and wear challenge, and particular needs of an individual dredging vessel.
The main characteristics are
* Low initial cost
* High efficiency
* Ease of replacement
* Optimal geometrical design
* High wear resistant
Parameters:
| Discharge Rubber Hose | |||||
| Main Material: Natural Rubber | |||||
| Inner diameter | Allowable error | Working pressure | Bursting Pressure | Length | Pipe Wall thickness |
| mm | mm | Mpa | Mpa | m | mm |
| 300 | ±2 | 0.4~1.2 | 3.6 | 1-3 | 34~37 |
| 414 | ±2 | 0.4~1.2 | 3.6 | 1-3 | 35~37 |
| 560 | ±3 | 0.4~1.2 | 3.6 | 2-3 | 40~45 |
| 600 | ±3 | 0.4~1.2 | 3.6 | 2-3 | 40~45 |
| 700 | ±3 | 0.8~1.5 | 4.5 | 2-3 | 40~45 |
| 800 | ±4 | 1.2~2.5 | 7.5 | 2-3 | 50~52 |
| 900 | ±4 | 1.5~2.5 | 7.5 | 2-3 | 55~58 |
| 1000 | ±5 | 2.0~2.5 | 7.5 | 3-5 | 75 |
