Shandong Chencan CNC Machinery Co., Ltd.
China Manufacturer with main products: CNC Router, Stone Carving CNC Router, Mould Making CNC Router, Sign Making CNC Router |

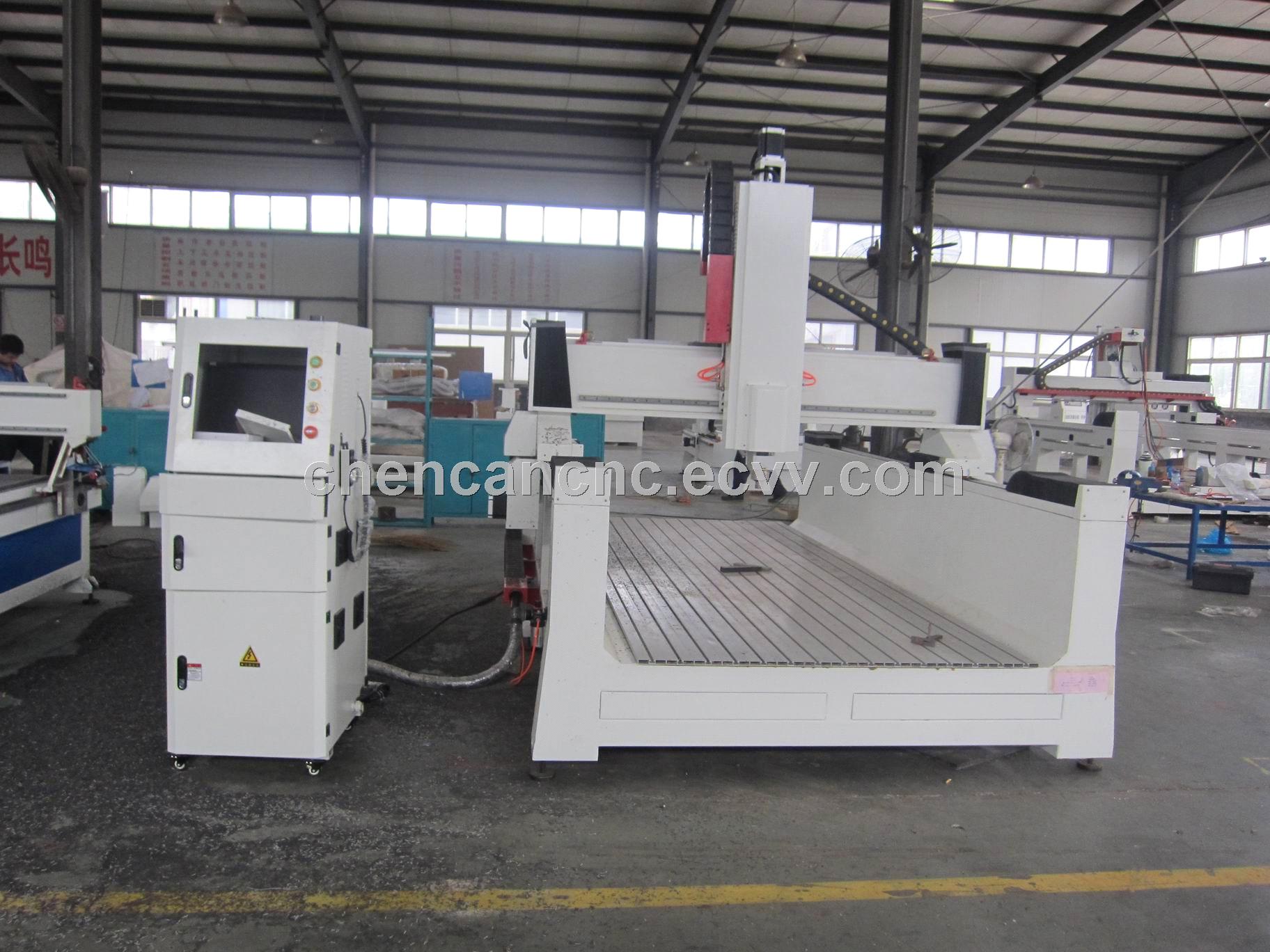

Large Scale CNC Router for MoldCC-BS1530B
| FOB Price: | 19,999.00 - 39,999.00 USD/Set |
|---|---|
| Supply Ability: | 50 Set/Sets per Month |
| Shipping: | 30DAYS |
| Payment Terms: | T/T |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Shandong in China |
| Packaging Details: | PLYWOOD CASE |
Quick Details
- Condition: New
- Brand Name: CHENCAN
- Model Number: CC-B1530B
- Voltage: 380V/220V,50HZ
- Weight: 2200KGS
- Certification: CE,ISO
- Warranty: 12MONTHS
- After-sales Service Provided: Engineers available to service machinery overseas
Specifications
Mould industry: It engraves all kinds of large nonmetallic moulds; especially automotive foam mould, wooden ships mould, aviation and train wood moulds.Mould for casting, like stone casting mould. And wood mould casting, food mould (such as moon cake mold) and other precision mould making.
1. Lathe bed is welded with thicker square tube and is processed by high temperature tempering treatment and vibrating stress relief (VSR) to relief residual stress. The stability is excellent, not easy to be deformed. It has the property of good rigidity and heavy loading.
2. Four-row imported ball bearing, widening linear guide rail, self-lubricating sliding block. When engraving, equal force in all directions, to ensure the accuracy and strength.
3.Three axes of the mould cnc router adopt Hiwin high precision square guide rail; X and Y axes adopt rack and pinion transmission, fast working, high efficiency and low cost; Z axis adopts Germany-made ball screw, with high precision and longevity.
4. Z axis can be heightened to 1,000 mm, suitable for large-scale material 3D curve working.
5. Well compatibility: CAD/CAM designing software e.g. Type 3/Artcam/Castmate/Wentai etc.
|
Description
|
Parameter
|
|
X,Y Working Area
|
1500×3000mm
|
|
Z Working Area
|
600mm
|
|
Resolution
|
0.05mm
|
|
Repositioning Accuracy
|
0.05mm
|
|
Lathe Structure
|
Seamless welded steel structure, better than cast iron one
|
|
X,Y Structure
|
Rack and pinion transmission, Hiwin square guide rail
|
|
Z Structure
|
Germany-made rolling ball screw, Hiwin square guide rail
|
|
Max. Idling Speed
|
30m/min
|
|
Spindle
|
HSD 6KW
|
|
Spindle Rotate Speed
|
0-18000r/min, variable speed
|
|
Working Voltage
|
AC380V/50Hz, 3 phase
|
|
Working Mode
|
SERVO
|
|
Command
|
G code (HPGL,U00,mmg,plt)
|
|
Operating System
|
SYNTEC
|
|
Diameter of cutter
|
φ3.175-φ20mm
|
|
Cooling Mode
|
AIR-cooling
|
|
Work-holding
|
By clamp
|
|
Net Weight
|
2200KG
|
|
Software
|
Type 3, ArtCam, Ucancam
|
