HZS 150/180 Batch Plant

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe

Quick Details

Brand Name: Focus Machinery

Specifications

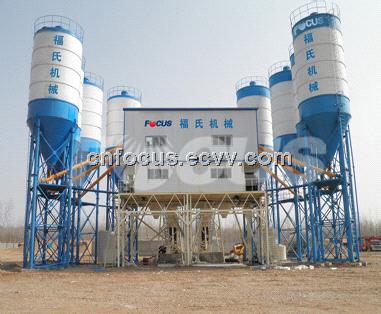

Concrete batching plant HZS150/180 which is widely used in large and medium-sized construction, road and bridge engineering, as well as the production of concrete products precast plant,ideal equipment for the production of commodity concrete. Our batching plant with high quality and competitive price sold to africa, south africa, india, australia etc.

The machine adopts JS3000 concrete mixer, it has good mixing quality and high efficiency HZS150 A Concrete mxing plant

The batching machine is measuring nicety and high produce efficiency.

The electrical system adopts import parts and has credibility performance.

Main technical data
Type	HZS180
Productivity in theory	180m³/h
Mixer	JS3000
Total power	205KW
Maximum aggregate diameter	80mm
Aggregate feeding method	Conveyor belt
Aggregate bins volume	4x18m³
Aggregate weighing	2x4000kg ±2%
Cement weighing	1800kg ±1%
Fly-ash weighing	800kg ±1%
Water weighing	800kg ±1%
Additive weighing	50kg ±1%
Discharging height	3.8m
Overall dimension(during operating) (LXWXH)	58.5mX7mX12.9m
Total weight	77T
Control	Fully automatic central plus manual control
Cement silo(optional)	On request
Cement screw(optional)	On request

Please note:

1. The total power doesn't include the power of cement silo and screw;

2. Non-standard design could be made according to clients' demand;

3. The above-mentioned data could be changed due to technical&design upgrade, please check

the updated configuration when purchasing.
