Shandong Huaying Auto Sales Co., Ltd.
China Manufacturer with main products: Heavy Truck, Dump Truck, Tractor Truck, Oil Tank Truck, Mixer Truck, Trailer, Tipper Truck, China |

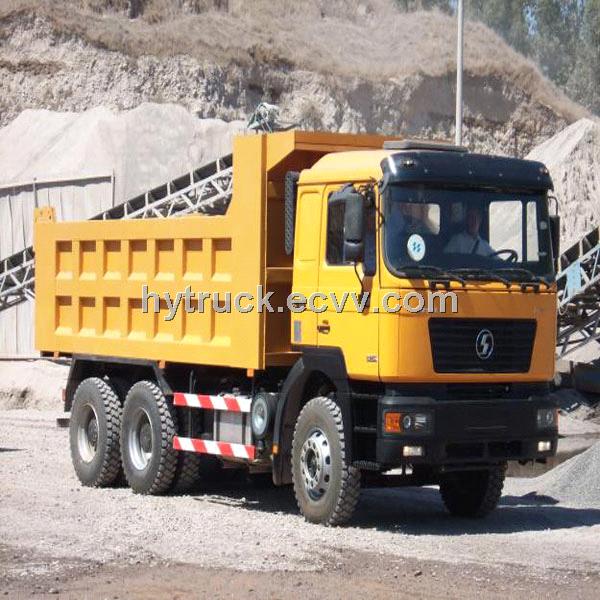

Shannxi shacman 6x4 25ton Euro2 dump truck
| FOB Price: | 38,000.00 - 55,000.00 USD/Set |
|---|---|
| Supply Ability: | 200 Set/Sets per Month |
| Shipping: | by sea |
| Payment Terms: | L/C, T/T |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Shandong in China |
| Packaging Details: | nude packing |
Quick Details
- Engine: weichai engine
- Gearbox: fast gearbox
- axle: hand man axle
- dump body: 5600x2300x1500
- emission standard: Euro2
- Load: 25ton
Specifications
Tipper truck description:
Our company are professional in trading shacman truck .We can provide you all series shacman Trucks.
Shacman heavyduty truck is based on a golden industry chain called “4 golden combinations with Man of German,
engines of weichai power,Cummins of USA,Fast transmission and HANDE axle as cores.
1. At present Our Truck with Euro 2/ Euro 3/Euro 4 Emission Standard. Shacman dump truck,tractor truck,tipper truck,oil tank,concerete mixer truck,special truck etc.
2. Engine Model: weichai(270HP-480HP);Drive model:4*2, 6*2,6*4, 8*4, etc.
3. According to different area,road situation and transport material, we will recommend the suitable product( different thickness of container steel material , different height of container) for your esteemed company.
4. The hydraulic lifting system adop of Holland Brand" HYVA " Front hydraulic lifting cylinder, with Best quality and
perfect performance.
| Model | dumper SX3251DM384 |
| Drive type | 6*4 |
| Weight | |
| Complete kerb mass (kg) | 25000 |
| GVW (kg) | 12100 |
| GCW(kg) | |
| Dimensions | |
| Outline Dimension | 8329X2490X3450 |
| Front/Rear Overhang(mm) | 1525/1654 |
| Trunk box chest | 5600x2300x1500 |
| Wheel base(mm | 3800+1850 |
| Track width(mm) | 2035/1860 |
| Performance | |
| Max.speed (km/h) | 77 |
| Min.turning circle(m) | 15 |
| Min.ground clearance(mm) | 314 |
| Approach / Departure angle (°) | 20/32 |
| Max.gradeability(%) | 34 |
| Engine | |
| Brand | WEI CHAI |
| Model | WP10.270/WP10.290 |
| Power(kw/HP) | 199/270,213/290 |
| Max Torque (N.m )/rpm | |
| Emmission Standards | EuroII |
| Transmission | |
| Brand | FAST |
| Model | 9JS135 |
| Control type | Manual |
| Gear Shift | |
| Option | |
| Clutch | |
| Type | Single plate,diaphragm spring |
| Diameter (mm) | φ430 |
| Action | mechanical type,hydraulic and pneumatic operation |
| Brakes | |
| Type | Drum |
| Service brake |
With dual-circuit compressed air brake |
| Park brake |
Power spring brake acting on rear wheel |
| Auxiliary brake | WEVB |
| Option | ABS |
| Steering | |
| Type |
Integral circulating ball power sreering |
| Option | ZF8098 |
| Suspension | |
| Front Suspension | Longitudinal leaf spring |
| Rear Suspension | Inverted leaf spring stabilizator suspension |
| Axles | |
| Brand | HANDE |
| Front axle | 7.5T STR |
| Rear axle |
13000kg(each other) Double reduction driving axle with inter-wheel differential and differential lock. |
| Ratio | 4.42-6.72 |
| Tyres | |
| Type (Standard) | 11.00-20 |
| Option | 12.00R20/11.00-20/11.00R20/12R22.5 |
| Fueltank | |
| Tank capacity (L) | 380 |
| Material | Aluminium |
| Cab | D'long F2000 Mid-lengthened flat floor |
| Equipments | 2 rear window,mechanical clerestory,4 point air suspension,air suspension driver seat with handle and seatbelts,hydraulic reversal cab,with USB can play radilo with MP3 format, integral bumper, NO sleeper |
| Option | A/C, Electric window lifter |
