Huada Superabrsive Tool Co., Ltd.
China Manufacturer with main products: Stone Quarrying Equipments, Diamond Tools, Diamond Wire Saw, Diamond Saw Blade, Diamond Cutting Blade, Diamond Wire Saw Machine, D-T-H... |

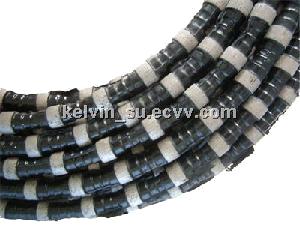

Diamond wire for Granite Quarries
| FOB Price: | 240.00 - 300.00 RMB/Meter |
|---|---|
| Supply Ability: | 15,000 Meter per Month |
| Payment Terms: | T/T, Western Union |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Fujian in China |
| Packaging Details: | paper packing |
Quick Details
- Diamond wire saw: Diamond wire saw for stone mining
- Diamond wire: wire saw
Specifications
Description:
Diamond wire-saws are widely used for granite quarries . The main specialties of diamond wire-saws are :
· To be able to used for great area granite quarries cutting
· To get high percentage of forming dimension stone
· High manufacture efficiency
· Safety, low- noise, no- dust and friendly surroundings
· Low cutting cost.
· To be able to used for great area granite quarries cutting
· To get high percentage of forming dimension stone
· High manufacture efficiency
· Safety, low- noise, no- dust and friendly surroundings
· Low cutting cost.
The advantage of rubber wire saw for granite quarry
1.the rubber adheres better to the beads and support cable, which protects it better from the action of abrasive pastes, in particular when the cable takes up small radii of curvature (beginning and end of quarry cuts).
2.the rubber easily withstands increases in temperature caused by badly controlled water spraying, which often happens in a quarry, whereas plastic softens and losses its strength properties.
3.the flexibility of a cable fitted with rubber is greater, which reduces the risk of irregular wearing of the beads (ovalisation phenomenon).
37-75KW wire saw machines are more used for granite quarry, the water spraying between 25-50 L/min according to the cut dimension.
|
Diameter (mm)
|
Beads/meter
|
Fitting
|
Application
|
Line speed
(m/s)
|
Saw speed
(m²/h)
|
Lifespan
(m²/m)
|
|
11
11.5
|
40
|
Rubber
Rubber+spring
|
Class 1-2
|
25-30
|
4-9
|
20-30
|
|
Class 3-4
|
22-25
|
3-6
|
10-15
|
|||
|
Class 5
|
18-22
|
2-4
|
5-9
|
Other specifications are available upon customer's requirements.
Recommendations:
· The rotation of the wire should be regularly checked.
· The worn condition of beads should be regularly inspected.
· The worn condition of connections & the beads near connections should be regularly checked. Change connections when it's needing.
· The cable tension is set in 250-300kg(Φ4-5mm cable).
· Adjust the linear speed of the wire according to the material being sawn:
· During the sharpening of a new wire, the liner speed should be reduced 2-3 m/s from the above standard.
· Water requirement is between 15-25L/min.
· The rotation of the wire should be regularly checked.
· The worn condition of beads should be regularly inspected.
· The worn condition of connections & the beads near connections should be regularly checked. Change connections when it's needing.
· The cable tension is set in 250-300kg(Φ4-5mm cable).
· Adjust the linear speed of the wire according to the material being sawn:
· During the sharpening of a new wire, the liner speed should be reduced 2-3 m/s from the above standard.
· Water requirement is between 15-25L/min.
