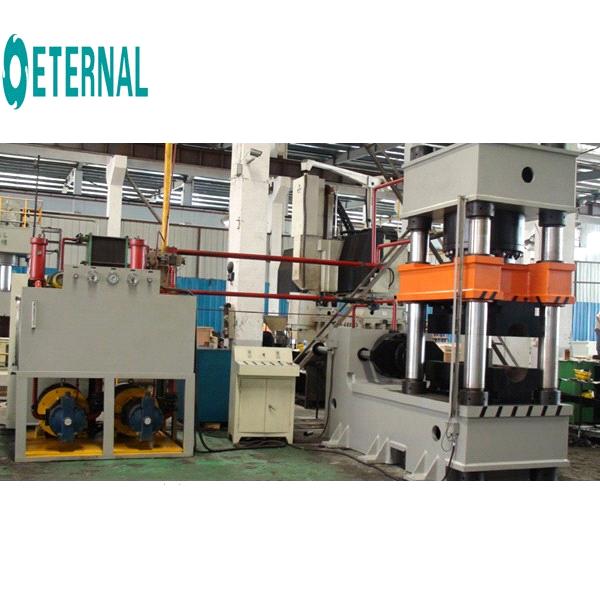

Upsetting Machine Used for Drill Pipe or Sucker Rod Upsetting

Inquiry Now

Specifications

Upsetting machine used for drill pipe orsucker rod upsetting

Application

Upsetting machine is mainly used to upset drill pipe or pipeline'end. Upsetting is to ensure the Steel pipe's strength on the crosssection of end thread.

Performance

There are three upsetting ways: External upsetting, internal upsetting and EIU.
The upsetting machine sets include upsetting machine, auxiliary machinery and heating system.

Each upsetting machine has independent hydraulic control system and electric operation button, And the hydraulic control system adopt two way cartridge inserted valve integrated system, which has good performance, compact structure and good appearance.

The machine has a central operation platform to control all of the unit.
The unit has three operation mode: Adjusting, manual operation and automatic operation.

The auxiliary machine can also be used as the devices conveying long Pipe or long axle. The whole process is controlled by the computer.

Main technical Parameter

1. Suitable pipe: Drill E75, X95, G105, S135

2. Specifications range: Based on customers' requirements

3. Steel pipe length: Based on customers' requirements

4. Production speed: Less than 40s/p for oil pipe 60-90s/p for drill pipe according to the processing requirements.

5. The daily work class: 3 class (24 hours)

6. Equirement utilization: 85%

7. Power: Voltage into line 380V

8. Total capacity: 1000KW

9. Height above the ground: 6000mm

The production line composition

It consists of upset machine, machinery feeding device, medium-frequency heating equipment, closed-type cooling system, infrared temperature measurement device, main control desk etc. Machinery feeding device includes storing desk, turning material frame, roll-way feeding device, discharging frame etc.

1 630/315 upset machine 1 set

2 machinery feeding device 1 set

3 medium~frequency heating equipment 1 set
(including closed~type cooling system and infrared
Temperature measurement device

4 die holder 1 set

5 Die 1 set

6 Operation cabinet and control system 1 set

7 Hydraulic power station 1 set

8 Foundation blot and nut 1 set

9 Hydraulic cylinder O ring 1 set
