HDMI Multiple Sender to Multiple Receiver Cascaded-Chainable Optical Extenders

Payment Terms:	T/T

Inquiry Now Start Safebuy Order

ECVV Safebuy Services

According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
Safebuy Service Guarantee

Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Taoyuan in Taiwan
Packaging Details:	HDM1000TR HDMI HD Extender - Transmitter HDM1000TR HDMI HD Extender - Receiver 2 * DC 5V / 2

Quick Details

HDMI Multiple sender to Multiple Receiver Cascadedchainable Optical Extenders

High-end quality--Made in Taiwan.

ACAFA HDM1000TR Extender over CAT.5e/6 & Fiber Optic

the HDM1000TR HDMI Extender is the innovative and powerful solution for video wall with cutting-edge technology.

IR and RS-232 over IP make long-distance control easy and convenient.

	Supports CAT. 5e/6 & Fiber Optic

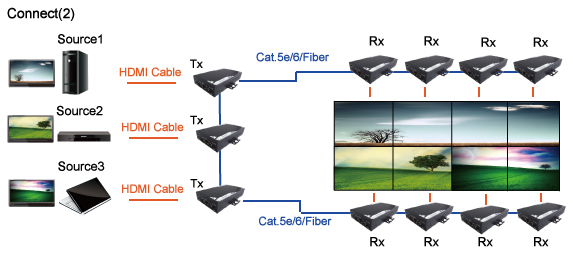

	Matrix and Daisy Chain HDMI extension
	Supports Video Wall (up to 9 x 9) and easy to configure by web UI
	Extened distance up to 100 meters (330 feet) between TX and RX (point-to-point) over CAT.5e/6 and up to 30Km over Fiber Optic
	Supports HD video 1080p Deep Color and PC resolution 1920x1200@60Hz over CAT.5e/6
	Support IR and bi-directional RS-232 over IP
	Supports DDC/DDC2B,Hot-Plug Detection (HPD) and HDCP
	Made in Taiwan

	HDM1000TR HDMI HD Extender - Transmitter
	HDM1000TR HDMI HD Extender - Receiver
	2 * DC 5V / 2A Power Adaptor

MODLE NAME				HDM1000TR (Transmitter)	HDM1000TR (Receiver)
Console Connectors	HDMI Output			HDMI ( Female )	HDMI ( Female )
	RS-232 Control Port			RJ-45	RJ-45
PC Connectors	HDMI Input			HDMI ( Femalle )	N/A
Extension Port	RJ-45			Full HD Video1080p @30Hz / Audio Extension + IR + RS-232
RJ-45				3 ( Line in or Line Out )	3 ( Line in or Line Out )
Fiber Link				1	1
Daisy Chain				Yes, up to 10 layers	Yes, up to 10 layers
Audio				Supports High Definition Audio (HD) 5.1/6.1/7.1 Surround Sound
IR				Unidirectional
LED Indicators		Local	Power	Red LED
			Link	Green LED
		Remote	Power	Red LED
			Link	Green LED
DDC Supported				DDC, DDC2, DDC2B
Extension Cable Type & Length				CAT.5e/CAT.6 Max.Length:100m
Max Video Resolution				1920x1200@60Hz, Full HD 1080p@30Hz
Wide Screen Supported				Yes
OS Compatibility				OS Independent
Power Supply				External DC 5V / 2A Power Supply
Dimension ( L x W x H )				155 x 90 x 28.5 mm
Weight				430g	425g
Housing material				Metal
Operating Temperature				32~ 122°F (0~ 50°C )
Humidity				0%~80%RH
