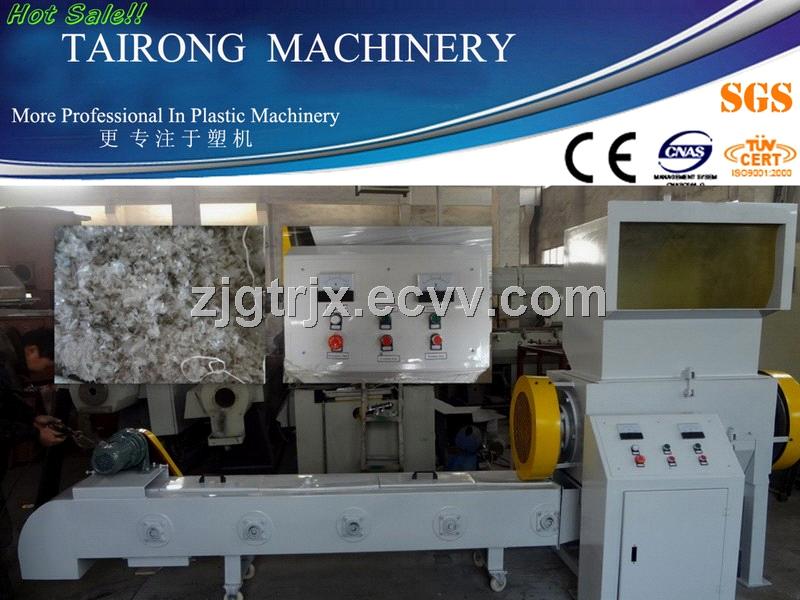

Plastic Crusher/Plastic Grinder

FOB Price:	2,000.00 - 20,000.00 USD/Set
Supply Ability:	20 Set/Sets per Week
Shipping:	Within 20 Working Days
Payment Terms:	L/C, T/T, Western Union

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Jiangsu in China
Packaging Details:	Packing in Wooden Case

Quick Details

Condition: New
Brand Name: TR
Model Number: PC
Use: Bottle Crusher
Plastic Type: PET
Shaft Design: Single
Power: 10-110KW
Capacity: 50-1000kg/h
Voltage: 380v 50hz
Power(W): 380V
Dimension(L*W*H): 2x1.5x1.9m
Weight: 2ton
Certification: CE
After-sales Service Provided: Engineers available to service machinery overseas
Motor: Siemens
color: as request
knife: skd-11
certificate: SGS

Specifications

Strong Force Plastic Crusher Plastic grinder

GS Series plastic crusher can break waste products occurred in mould injection, it may also break such material as pipe material, shaped material, piece material, TV/computer shell, plastic wash basin, plastic barrel, hard ABS plastic, plastic film, pet bottles etc.It has many advantages such as being economical, durable, easy to clean, long life span, etc.

Features:

1) Adopts lastest German technology, and it is convenient to change the mould block,
Then it is easy the change the size of produced pipe
2) The line shall be used to produce single wall corrugation pipe in PVC, PP and PE raw
Material
3) Molding corrugated pipe with smooth inside and outside surface, and even ripple
at one time by corresponding die
4) Used as wire and cable passing pipe, washing machine drain pipe,
Dust collector pipe and ventiduct
5) Small size corrugation pipe of 4mm - 6.7mm are used in car.

GS Series Strong Dint Breaker 1.Process Materials: pipe material, shaped material, piece material, film etc 2.we can also supply air-blower, absorption machine group, transport belt, etc. Features and application : Our company also can offer a series of supporting the auxiliary equipment, such as air receivers, pumping units, Conveyor belts, etc. > GS Series Toughened Breaking Machine has become perfect after years of research and development of this co. It may solve almost all problems on plastic breaking. > The out-shell of GS Series Toughened Breaking Machine has applied strong welding steel structure, it has wide universality. In the meantime, detachable slanting rotary wedge inserted may satisfy hardest requirements. > GS Series Toughened Breaking Machine can break waste products occurred in mould injection, it may also break such material as pipe material, shaped material, piece material, film, etc. It has many advantages such as being economical, durable, easy to clean, long life span, etc. In addition, we can also supply series of auxiliary equipment, such as air-blower, absorption machine group, transport belt, etc.

Incising of high technique: Rotary blade has applied latest V-shaped cutting technique. Different from normal cross cutting technique, it has not only remained all traditional advantages but also got new properties. Cutting occurs at the touching point only, it does not occur in all working range. This property has greatly reduced loss, noise, dust and saved energy. The design of V-shaped blade makes the material move toward the center of the blade so that such problems as accumulation of material, frictional heating, abrasion of side wall can be avoided.

technical parameter:

Model	SWP150	SWP200	SWP210	SWP300	SWP320	SWP380	SWP400	SWP630
Diameter of turning knife(mm)	150	200	210	300	320	380	400	630
Number of turning knife	9	3	3	3	6/2 groups	12/4 groups	5	9/3
Turing speed of knife(r/min)	730	870	500	640	650	650	500	480
Number of fixed knife	2	2	2	3	2	8/4 groups	2	4/2
aperture of screen panel	φ8	φ8	φ8	φ12orφ14	φ8	φ10	φ10	φ10
Crushing capacity(kg/h)	60-200	50-110	80-120	50-250	250-350	100-400	350-450	700-850
power	5.5	4	4	37	11	27.5	13.2	44
Current source	380V50Hz
Size of feeding gate(mm)	150×200	240×350	250×230	260×1200	500×280	268×1120	375320	820610
weight(kg)		300	320	2000	1400	800	980	5000
Outline dimension(mm)	1200820 1160	1000590 1090	800600 1400	15501300 1850	16131150 1910	18001460 1380	25001200 2000	25001550 2850

Crushing

Crushed PET

Crushed Film

If any questions,please feel free to contact us soon. Thanks.
