Home >Products Catalog > H.264 16CH 960H (960*576 ) /HDMI/ VGA Security DVR Recorder PST-DVR816H

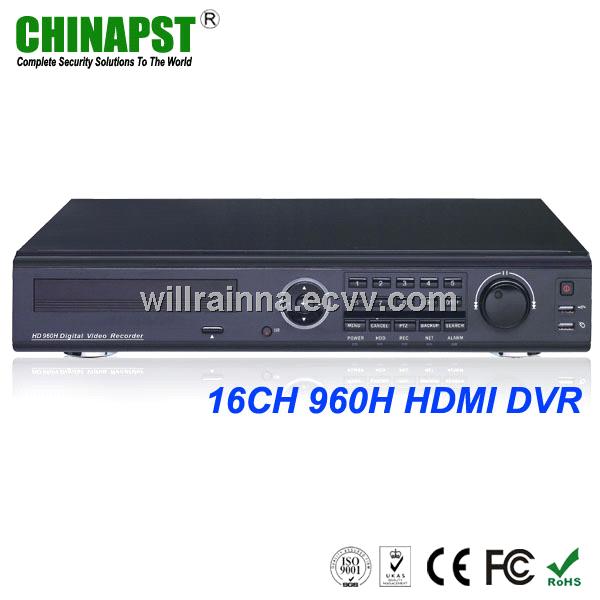

H.264 16CH 960H (960*576 ) /HDMI/ VGA Security DVR Recorder PST-DVR816H

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe

Quick Details

Brand Name: PST
Model Number: PST-DVR816H

Specifications

H.264 16CH 960H (960*576 ) /HDMI/ VGA Security DVR Recorder PST-DVR816H

PST-DVR816H Specifications
Video Compression	H.264
OS	Embedded LINUX
Language	Multi languages
System Resources	Multiplex operations: Multiple-channel record, multiple-channel playback and network operation simultaneously
Interface	User-friendly graphical user interface
Operation from	Front panel, USB mouse, remote controller
Monitor Output	1-CH Composite Video Output 1.0Vp-p/75Ω, NTSC/PAL
Spot Output	1-CH Composite Video Output 1.0Vp-p/75Ω, NTSC/PAL
HDMI Output	1-CH HDMI, Adjustable resolution: 1920×1080, 1440×900, 1360×768,1280×720, 1280×1024, 1024×768
VGA Output	1-CH VGA, Adjustable resolution: 1920×1080, 1440×900, 1360×768,1280×720, 1280×1024, 1024×768
Video Standard	PAL(625line, 50f/s), NTSC(525line, 60f/s)
Record Speed	Real-time: PAL 1f/s to 25f/s per channel and NTSC 1f/s to 30f/s per channel
Video Partition	1/4/9/16 windows, PIP1 and PIP2
Recording Mode	Manual recording, always recording, motion detection recording, schedule recording
Resolution	Real-time monitor(PAL/NTSC): 960H (960×576/960×480), D1 (720×576/720×480). Support dual streams: sub-stream resolution CIF 352×288/352×240
Playback Resolution	16-CH Real-time playback(PAL/NTSC): 960H (960×576 25f/s /960×480 30f/s), D1 (720×576 25f/s/720×480 30f/s)
Audio Compression	ADPCM, 16Kbps
Audio Input	16-CH 200-2000mv5kΩ, RCA
Audio Output	1-CH 200-3000mv5kΩ, RCA
Network	RJ45 10M/100M/1000M self-adaptable Ethernet port, support TCP, FTP, PPPOE, 3G, Web browser, CMS, NetViewer
Mobile OS	Windows mobile, Symbian, iPhone, Android, Blackberry.
Email for alarm	Support SMTP server, support SSL
DDNS	Build in free privacy DDNS, DYNDNS, 3322, perfect, myq-see and no-ip
Alarm Input	16-CH
Alarm Output	2-CH relay output
Hard Disk	5 HDD(At most 2TB SATA HDD). (HDD not included)
USB Interface	2 USB 2.0 ports
Power Adapter	DC12V/4A
Work Temperature	Temp: –10°C to 40°C
Color Box Dimension	531746cm
Standard Kit Weight	5.68Kg
PST-DVR816H Features & Functions
Video View Methods	HDMI Monitor
	VGA Monitor
	Synchronous CVBS
	Web browser/NetViewer software/CMS remote view for PC
	Mobile phone
Input	16CH BNC Video input
Input	16CH Audio input
Output	1CH HDMI output
	1CH VGA output
	1CH BNC output
	1CH Spot BNC output
	1CH Audio output
Other Interface	Mouse USB2.0 port
	USB2.0 backup port
	Remote controller signal receiver
	Support SATA DVDRW
	RS485 PTZ for speed dome camera
Basic Functions	NTSC and PAL video system
	Simultaneous recording, playback and network view
	Backup modes: network backup, USB backup, support AVI
	Recording modes: always recording, manual recoding, schedule recording and motion detection recording
	Search/Playback modes: time/date search, event search, manual search
	3G USB module for network connection
	Zoom/Hide/Cover for both live and playback viewing
	Support sending E-mail for alarm
	Multi-lever user management
	Firmware upgrade
	Reset factory setting
PST-DVR816H Standard Package List
16CH DVR Host	x1
Power Adapter	x1
Remote Controller	x1
Mouse	x1
HDD Serial line	x5
HDD Screw	x20
User Manual	x1
CD	x1
PST-DVR816H Services
PST offer 3 years product warranty since the date of shipping, unlimited after-sales service
Delivery time: 1-3 days
Payment: Bank wire transfer, Western Union, Money Gram, Escrow, L/C, Paypal
Shipping: Express(DHL, UPS, FedEx, TNT etc), Air Cargo, by sea, HK post, China Post, EMS
24 hours timely tech support via email, skype, MSN, whatsapp, phone etc
