Ningbo Track Undercarriage & Gearbox Imp&Exp Co., Ltd.
China Manufacturer with main products: Track Undercarriage, Crawler Undercarriage, Tracked Undercarriage, Steel Track, Rubber Track, Track System, Track Frame, Crawler Mounted... |
Home
>Products Catalog > Steel track undercarriage > steel track undercarriage track chassis for mining machinery

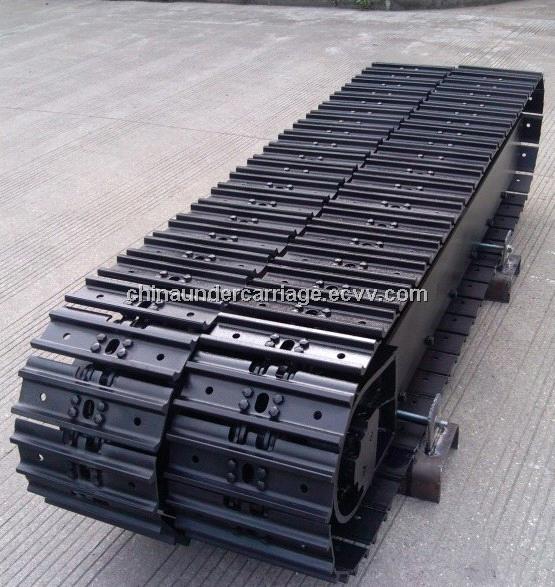

steel track undercarriage track chassis for mining machinery
| FOB Price: | 1,000.00 - 5,000.00 USD/Set |
|---|---|
| Supply Ability: | 1,500 Set/Sets per Month |
| Shipping: | 3-20 days |
| Payment Terms: | L/C, T/T |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Zhejiang in China |
| Packaging Details: | pallet |
Quick Details
- Brand Name: kemercn(at)hotmail(dot)com
- Model Number: kemercn(at)hotmail(dot)com
- Load capacity: 1-60 ton
- Travelling speed: 0-10km/hr
- Dimension: custom built
- Contact: Cathy Hsu
- Skype: cathy-bonny
- Mail: kemercn(at)hotmail(dot)com
- Tel: 008615168162360
Specifications
We are an experienced company specialized in manufacturing steel track undercarriage and rubber track undercarriage. we make custom track systems for your mobility needs, and our track undercarriage can carry up to 50ton,and supporting dual-speed final drive and travel 0-7km/h at grades up to 60%.
Application
Special design catered to customer specifications. With years of experience we can offer the track design flexibility, rapid response and solutions that are always highly effective.
For application on drilling rigs, excavators, crushers, cranes, aerial platform, etc. with high efficiency and adaption of vile working condition.
Customize Solution
We have many professional engineers devoting to design the track undercarriages to meet different customers requirements. With our years of experience, we can take your concept from prototype to production. We are committed to our goal of exceeding your expectations and requirements for quality, reliability, and on-time delivery.
Competitive Price
We can provide our track undercarriage with most competitive price,great quality and best service.
If you have any question or need any help, please feel free to contact with us. Our service team is ready to provide best service for you.
Features:
1. Adopt steel tracks or .steel tracks and block rubber.
2. The track motor can be fixed displacement or variable displacement concealed planetary gearbox and hydraulic motor, such as Nabtesco (Japen), Brevini (Italia). If you need, we can also provide track motor made by our own factory.
3. The beam is made of Q345B with high loading capacity.
4. It can also be designed and manufactured on customers' request.
5. It is widely applied in all kinds of large drilling rig, excavator, paver, Aerial Working Platform and construction engineering machines.
For the following dimension and specification, it is just for your reference, we can also design and manufacture the undercarriage with load capactiy from 500-50,000kgs for widely application based on your requirements.
|
MODEL
|
Dinamic
capacity |
Static
capacity |
Weight
kg. |
Press. Bar
|
oil flow
L/min |
Torque
Nm to engine |
Grad.
|
Speed
km/h |
|
ST-3500
|
3500
|
4000
|
750
|
220
|
35
|
4723
|
65%
|
2/3.2
|
|
ST-6000
|
6000
|
7000
|
1350
|
220
|
55
|
8330
|
65%
|
2/3.7
|
|
ST-8000
|
8000
|
9500
|
1830
|
300
|
82
|
11700
|
65%
|
2.8/4.7
|
|
ST-10000
|
10000
|
11300
|
2350
|
350
|
100
|
14800
|
65%
|
3/5.1
|
|
ST-12000
|
12000
|
15000
|
2950
|
350
|
124
|
22500
|
65%
|
2.9/4.9
|
|
ST-15000
|
15000
|
18000
|
3300
|
350
|
140
|
24000
|
65%
|
3.2/5.5
|
|
ST-20000
|
20000
|
25000
|
4300
|
350
|
220
|
38000
|
65%
|
3.5/5.4
|
|
ST-30000
|
30000
|
37000
|
6500
|
330
|
260
|
59000
|
65%
|
2.5/4.6
|
|
ST-40000
|
40000
|
480000
|
7100
|
350
|
290
|
72800
|
65%
|
2.3/4.3
|
|
MODEL
|
A
Length |
B
Center Distance |
C
Height |
D
Total Width |
E
Width of track shoe |
F
Height of Cross beam |
No. of
roller |
|
ST-3500
|
2030
|
1500
|
485
|
1800
|
300
|
225
|
4+4
|
|
ST-6000
|
2467
|
1950
|
549
|
1700
|
300-400
|
240
|
5+5
|
|
ST-8000
|
2783
|
2265
|
548
|
1800
|
400-450
|
255
|
8+8
|
|
ST-10000
|
3800
|
3200
|
600
|
1700
|
400-500
|
280
|
9+9
|
|
ST-12000
|
3282
|
2575
|
720
|
2000
|
400-600
|
345
|
9+9
|
|
ST-15000
|
3666
|
2923
|
753
|
2000
|
500-800
|
360
|
8+8
|
|
ST-20000
|
4065
|
3323
|
786
|
|
500-800
|
375
|
8+8
|
|
ST-30000
|
4530
|
3730
|
836
|
|
500-800
|
405
|
9+9
|
|
ST-40000
|
4888
|
4090
|
880
|
|
500-800
|
420
|
10+10
|
