Home  >Products Catalog > woodworking cnc router > Wood Engraving Cutting CNC Router

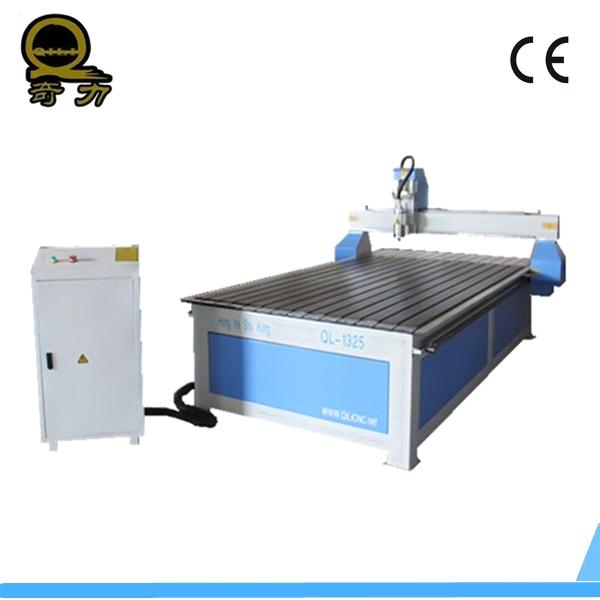

Wood Engraving Cutting CNC Router SafeBuy Supplier Member

FOB Price: 2,100.00 - 9,999.00 USD/Set
Supply Ability: 400 Set/Sets per Month
Shipping: shanghai,tianjin port
Payment Terms: T/T, Western Union
In Stock
Export Markets: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin: Shandong in China
Packaging Details: wooden case

Quick Details

  • Condition: New
  • Brand Name: qili
  • Model Number: QL1325II
  • Voltage: 380V,50HZ
  • Power(W): 3.0KW
  • Dimension(L*W*H): 3200*1840*1900mm
  • Weight: 1000kg
  • Certification: CE SGS
  • Warranty: one year
  • After-sales Service Provided: Engineers available to service machinery overseas
  • motor: stepper
  • Certificate: CE SGS
  • table: vacuum table
  • rails: square or round rails
  • Machine structure: Steel structure lathe bed T-slot table
  • Work Holding: By Clamps
  • Working speed: 10.000mm/min
  • Spindle: 3.0kw water cooling spindle
  • Available Tools: 3.175-12.7
  • Working Voltage: AC380V 50HZ
  • Control system: NcStudio

Specifications

Wood engraving cutting cnc router

Technical specifications :
Model
QL-1325-I/QL-1325-II
optional
Working area (X*Y*Z, mm)
1300*2500*100/1300*2500*200
customization is available

Machine structure
steel structure lathe bed and T-slot of sectional material
Square tube lathe bed , vacuum system
Working holding
By clamps
by vacuum

Overall dimension
3100*1810*1750/3100*2060*1850

Precision(mm)
0.07


Position accuracy(mm)
0.02


Repeatability(mm)
0.02


Lding speed (mm/min)
15,000


Working speed(mm/min)
10,000


Spindle
2.2kw/3kw, water-coolin(0-24000rpm)
air-cooling(0-18000rpm), multi-head, specified power

Available tools(mm)
φ 3.175~φ 12.7

Automatic tool changer
Drive system
Stepper motors
Servo motors
Working voltage
AC220V± 30V, 50HZ
AC380V± 30V, 50HZ for 2.2kw spindle
Command code
G Code(*. Nc, *.Mmg, *.U00, etc), *.Eng


Control system
NcStudio/DSP Hand-held

Compatible software
Window98/XP/7 G code
