Home >Products Catalog > Rigid Box Making Machine > Automatic Rigid Box Making Machine for perfume box(HM-ZD600)

Automatic Rigid Box Making Machine for perfume box(HM-ZD600)

Supply Ability:	8 Set/Sets per Month
Shipping:	20days after our bank get payment
Payment Terms:	L/C, T/T

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Guangdong in China
Packaging Details:	Wooden Case sindyshuai (AT) dghongming.com Skype: sindyshuai

Quick Details

Type: Wrapping Machine
After-sales Service Provided: Engineers available to service machinery overseas
Certification: CE
Weight: 5800kg
Dimension(L*W*H): 4500*4000*2600mm
Model Number: HM-ZD600
Brand Name: Hongming
Power: 13KW
Voltage: 380V
Driven Type: Mechanical
Automatic Grade: Automatic
Packaging Material: Wood
Packaging Type: Cartons,Case
Application: Commodity
Condition: New
Box Length: 100-600mm
Box Width: 50-400mm
Box Height: 12-130mm
Folding-in Depth: 10-45mm
Power: 17KW
Voltage: AC380V
Net Weight: 5800kg
Paper Thickness: 80-160gsm
Paper sheet Length: 180-850mm
Paper Sheet Width: 95-610mm

Specifications

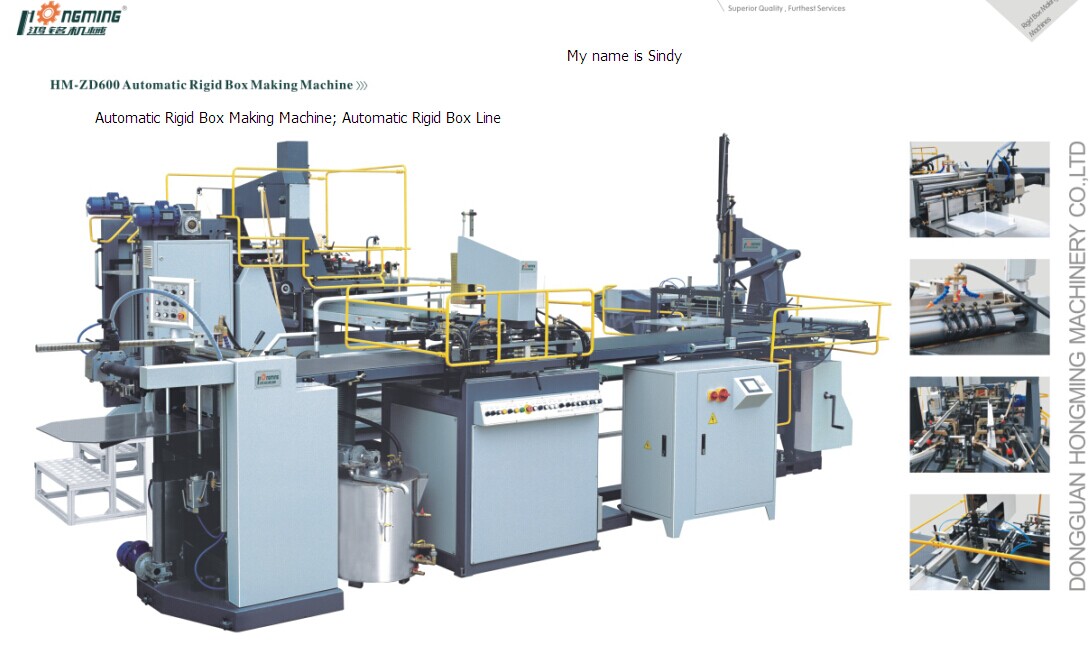

HM-ZD600 Automatic Rigid box Making Machine for perfume Box

HM-ZD600 Automatic Rigid Box Making Machine

Hongming Machinery special for producing rigid box making machine, rigid box maker, rigid box line, rigid box set up machine.

HM-ZD600 Automatic Rigid Box Making Machine is the very first fully auto box machine by our machine. Specializing in mass producing every kinds of big rigid boxes, such as shoe box, cellphone box, shirt box, toy box, tea box, book type box, etc

This machine adopts Japanese Panasonice PLC and Man-machine control, electric eye tracing system, hydraulic pneumatic rectifying system, and can automatically feed paper, feed greyboard, paste four corners, spot greyboard, drag box, wrap box, fold corner edge and form box.

1.Suitable for all kinds of rigid boxes in mass production;

2.Employ Japanese Panasonic PLC and man-machine control to automatically form boxes in one process;

3. Computer control with error auto stop and display;

4. Automatically feed paper and greyboard;

5. 24-hours control for glue pre-heating;

6. Automatically cut and heat the tape to paste on the greyboard box's quad stayer (four corners), with independent man-machine control;

7. Spotter by electric eye tracing system and hydraulic pneumatic recifying system to spot correctly (spotting accuracy ≤0.2mm);

8. Conveyor by vacuum suction fan to keep the glued paper from deviating;

9. Wrapper can automatically and continually deliver box, wrap paper, fold corner edge, fold in and form box;

10. Remodel for irregular boxes and plastic boxes (optional);

11. Automatic control system for glue viscosity meter (optional).

Automatic Rigid Box Making MachineTechnical Parameters

Model		HM-ZD600
Paper Wrap Size (L=Length, W=Wide)	Widest (W)	610mm
	Narrowest(W)	95mm
	Longest (L)	850mm
	Shortest (L)	180mm
Box Size L=Length W=Wide H=Height T=Thichness	Longest(L)	600mm
	Shortest (L)	125mm
	Widest(W)	400mm
	Narrowest(W)	50mm
	Highest (H)	130mm
	Lowest (H)	12mm
	Thick (T)	3mm
	Thinnest(T)	1.0mm
Thickness of Paper(m^2/g)	Range	80g-160g/m²
Size of Folding Edge	Range	10mm-20mm
Speed		20-30pcs/min
Power		17KW
Net Weight		5800kg
Machine Overall Dimension		680045003300mm

Automatic Rigid Box Making Machine; Automatic Rigid Box Maker; Automatic Rigid Box Line
