Home >Products Catalog > wheel loader > 5.0 T loaders in the park

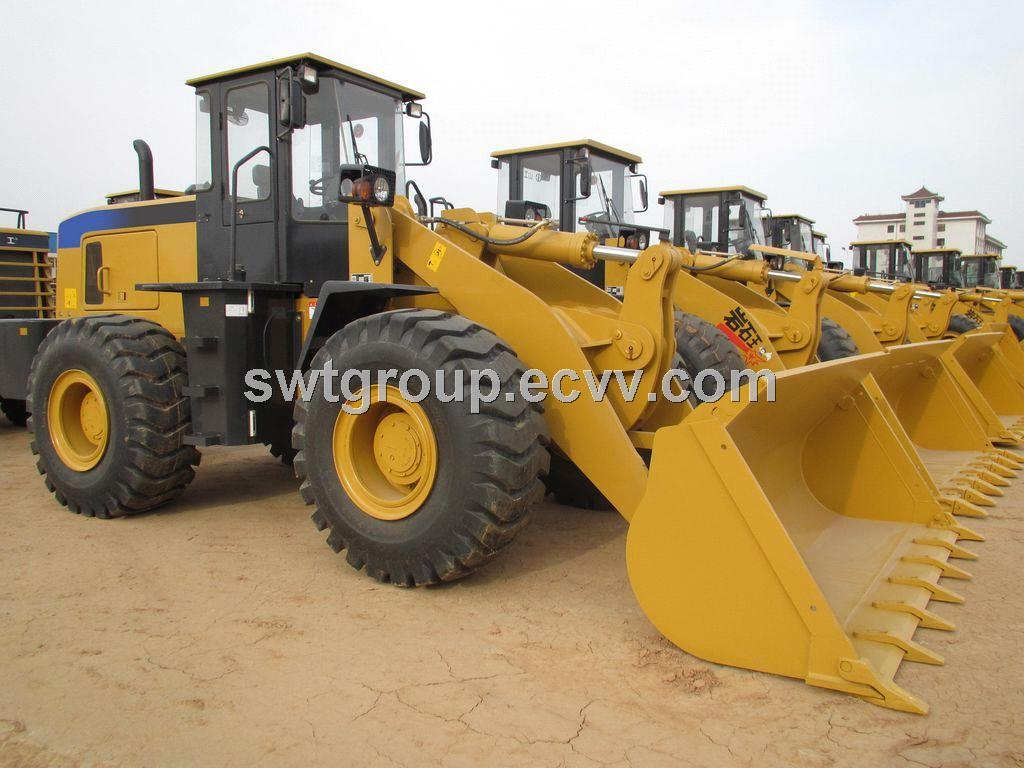

5.0 T loaders in the park

FOB Price:	40,000.00 - 48,000.00 USD/Set
Payment Terms:	L/C, T/T, Western Union

In Stock

Inquiry Now

Related products from verified members

FW550 Skid steer loader

Price:

Min. Order:
WZ25-20 Backhoe Wheel Rock Loader

Price:10.00-500,000.00 USD/Set

Min. Order:1 Set
Used Loader (WA300)

Price:13,000.00-15,000.00 USD/Piece

Min. Order:1 Piece
Wheel Loader

Price:42500.00-44000.00 USD/Piece

Min. Order:1 Piece
used caterpillar 966H wheel loader

Price:

Min. Order:
Used CAT 966F Wheel Loader Sale -China Supplier

Price:

Min. Order:1 Set
Used JCB 3CX backhoe loader

Price:19,000.00-20,000.00 USD/Set

Min. Order:1 Set
komatsu used loader from Japan made WA380

Price:25,000.00-30,000.00 USD/Set

Min. Order:1 Set

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Packaging Details:	nude

Quick Details

Condition: New
Brand Name: SWT
Model Number: ZL50G
Type: Front Loader
Dimension(Long * Breadth * High): 7920*3050*3400
Rated Load: 5000kgs
Certification: CE ISO EPA
Warranty: 1 year or 1000 working hours
After-sales Service Provided: Engineers available to service machinery overseas

Specifications

Model	ZL10F	ZL16F	ZL20F	ZL928F	ZL936F	ZL50F	ZL860
Rated load (kg)	1000	1600	2000	2800	3600	5000	6000
Rated bucket capacity(m3)	0.5	0.8	1.0	1.3	1.7	3.0	3.3
Max. dumping height(mm)	2700	2900	3100	3200	3100	3150	3450
Dumping reach(mm)	900	950	900	1084	1050	1250	1255
Bucket lifting time(s)	≤4	≤5	≤5	≤5	≤5.3	≤6	≤7.0
Total time(s)	≤10	≤10	≤10	≤10	≤9.2	≤11	≤12.0
Max. breakout force(kN)	≥22.5	≥25	≥40	≥58	≥96	≥170	≥198
Max.gradeability(°)	30	30	30	30	30	30	30
Max. speed(km/h)	25	25	30	30	30	38	40
Overall operating weight(kg)	2850	3340	4200	5000	10000	17100	19800
Min. turning radius(mm)	4000	4200	4300	4500	5700	6300	6500
Min. ground clearance(mm)	220	300	310	320	320	450	500
Wheel base(mm)	1580	1580	2200	2470	2750	3200	3350
Tread(mm)	1400	1400	1400	1400	1800	2250	2250
Size(mm)	460015002500	490016002700	530017502600	615019703000	699025003190	792030503400	825031003400
Drive method	4WD, shaft transmisson	4WD, CVT	4WD, CVT	4WD, CVT	4WD, CVT	4WD, CVT	4WD, CVT
Diesel engine model	Quanchai 2105	Weichai 490	Weichai 4102	Weichai 4105	Deutz engine	Weichai engine	Weichai engine
Rated power/speed	24kw/2400rpm	38kw/2300rpm	55kw/2200rpm	51.5kw/2400rpm	92kw/2600rpm	162kw/2400rpm	175kw/2200rpm
Gearbox type	Mechanical	hydraulic	hydraulic	hydraulic	hydraulic	hydraulic	hydraulic
Tyre size	9.00-16	15/90-16	16/70-20.5	16/70-20	17.5-25	23.5-25	26.5-25
Brake type	Mechanical	mechanical	Hydraulic disc type	Hydraulic disc type	Hydraulic disc type	Hydraulic disc type	Hydraulic disc type
Options:	Air conditioner, pilot operation, wood-catching fork, grass-catching fork, screening bucket, drums folder, snow-pushing board, road-sweeping machine etc.
