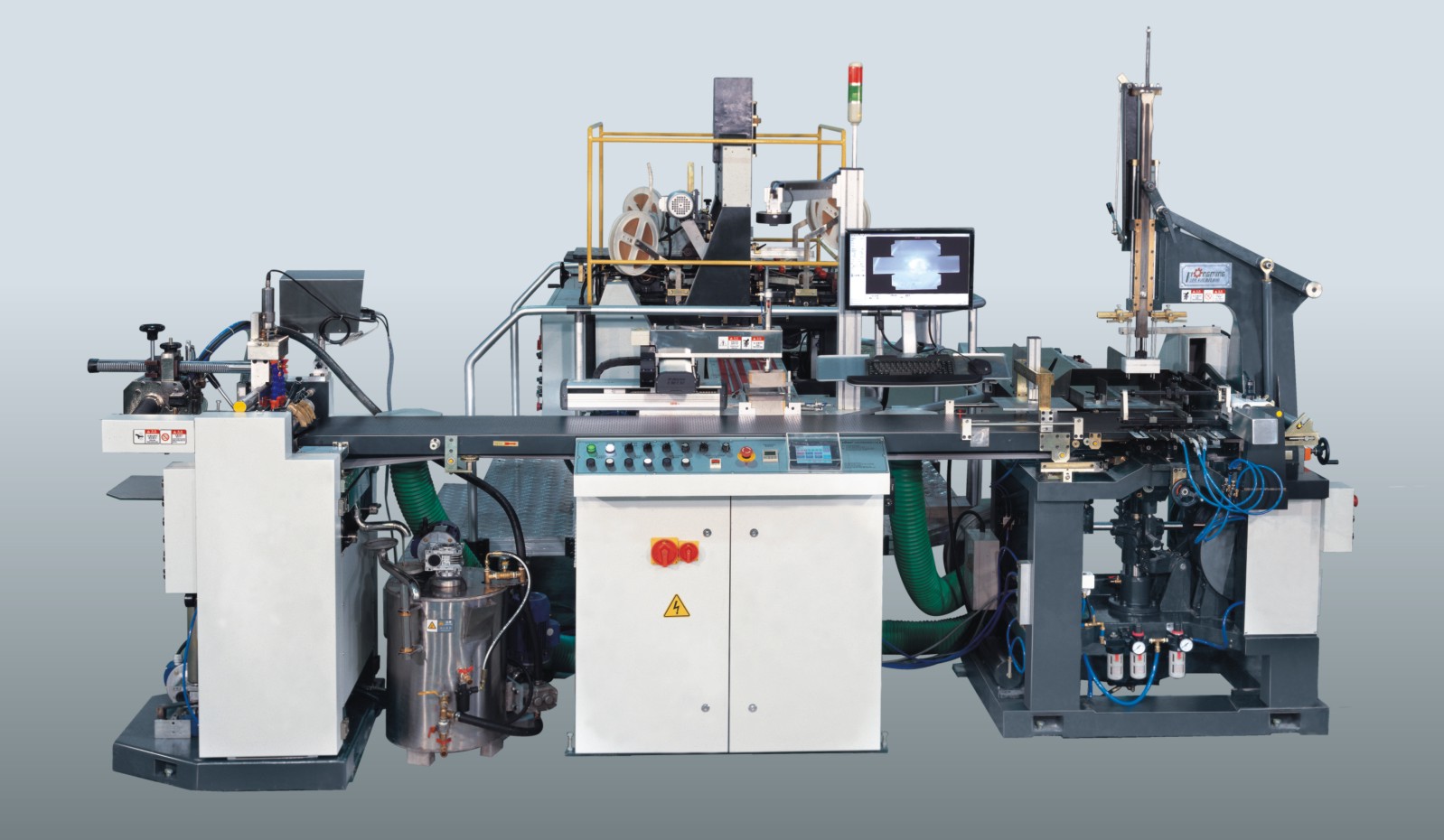

HM-ZD240 Automatic Watch Box Making Machine

Supply Ability:	25 Set/Sets per Month
Shipping:	20days after our bank get payment
Payment Terms:	L/C, T/T

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Guangdong in China
Packaging Details:	Wooden Case

Quick Details

Brand Name: Hongming
Model Number: HM-ZD240
ring box machine: Jewellery Box

Specifications

Model:HM-ZD240 Automatic Watch Box Making Machine

HM-ZD240 Automatic Watch Box Making Machine is now china's most advanced and most efficient equipment of producing perfect bottom-locked cardboard cartons lke shoes boxes, shirt boxes,garment box,gift boxes, and other boxes.

Features and Function:

1. Suitable for all kinds of rigid boxes automatic production.

2.The whole computer parameters set.auto display error and stop the machine working.(Standard)

3. Automatic sending and suck in the coverpaper and cardboard.(Standard)

4. 24 hours control glue pre-heating.( Standard)

5. Four angle clinging and heating, Single man-machine interface control.( Stardard)

6.Introduce Panasonic PLC and man-machine control system for the whole machine.(Standard)

7.Image positioning system(Positioning inaccuracy +-0.05mm). (Standard)

8. Box Automatically leading and suction device.(standard)

9. Remodel for automatic production of different kinds of boxes. (Optional)

10. Automatic control system for glue viscosity( America).(Optional)

Technical Parameters

Model		HM-ZD240
Paper Wrap Size (L=Length, W=Wide)	Widest (W)	305mm
	Narrowest(W)	45mm
	Longest (L)	450mm
	Shortest (L)	110mm
Box Size L=Length W=Wide H=Height T=Thichness	Longest(L)	220mm
	Shortest (L)	45mm
	Widest(W)	120mm
	Narrowest(W)	35mm
	Highest (H)	80mm
	Lowest (H)	10mm
	Thick (T)	3mm
	Thinnest(T)	0.5mm
Thickness of Paper(m^2/g)	Range	80g-160g/m²
Size of Folding Edge	Range	8mm-20mm
Speed		25-30pcs/min
Power		13KW
Net Weight		3300kg
Machine Overall Dimension		450040002600mm

Automatic rigid box machine, Automatic rigid box line, Set up box machine, shoe box machine, box making machine, Automatic rigid box making machine, cardboard box machine, mobile phone box machine, Rigid box machine, paper box machine, box machine, cosmetic box machine, Automatic rigid box maker, box maker, Rigid Box Line, Machine for gift box, Slip Case Hot glue Machine, Jelly Glue Machine, Tape Machine, Case Maker, Hard Cover Making Machine
