BestScope BS-1000 Monocular Zoom Microscope

Shipping:	According to the order condition
Payment Terms:	L/C, T/T

Inquiry Now

Related products from verified members

Solar Module Temperature Humidity Test Chamber

Price:

Min. Order:1 Set
Spring Impact Hammer Calibrator IEC60068-2-75

Price:4,800.00-8,800.00 USD/Set

Min. Order:1 Set

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Beijing in China
Packaging Details:	According to the requirements of clients

Quick Details

Brand Name: BestScope
Model Number: BS-1000

Specifications

Introduction

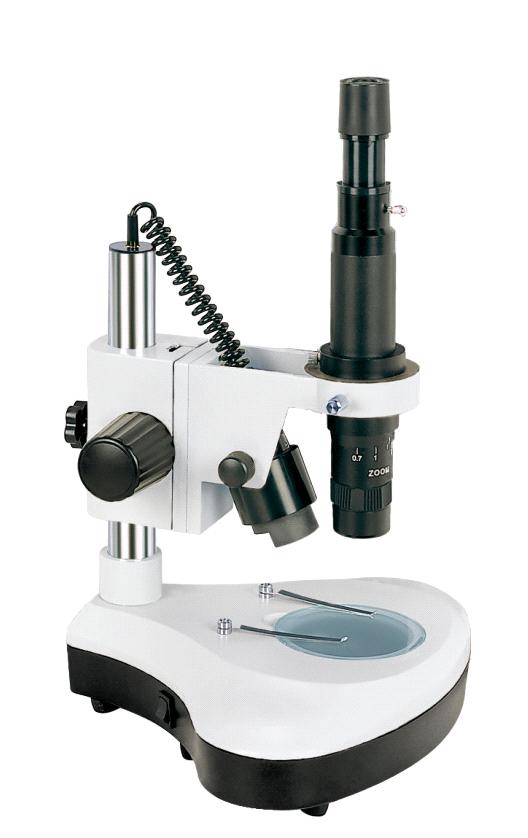

BS-1000 Monocular Zoom microscope is a precise optical system providing high resolution, sharp and strong stereoscopic images. 7×-45× zoom images can be observed by easily operation. It is a very good microscope and can be used in semi-conductor and integrated circuit board inspection and measurement. It is also can be used in educational demonstration and agriculture research area.

Monocular Zoom Body BS-1000 also can be flexibly equipped with a frame of semi-conductor and integrate circuit board production line. With a microscope digital eyepiece MDE-130, it turns a digital microscope. It then can be connected to a PC and analyze the samples.

Features

1. Infinite and high quality zoom optical system 1:6.5.

2. Integration structure design makes it occupy less working Space.

3. MDE-130 Digital camera and other digital cameras can be used to connect the microscope to computer to for image analysis..

4. A wide range of accessories to be equipped with the microscope for multi-purpose application.

5. Wider viewing field (eye survey up to 85mm).

6. Higher magnification (up to 400× with 15" monitor).

Application

BS-1000 series Monocular Zoom Microscope are widely used in educational demonstration, agriculture research, semi-conductor and integrated circuit inspection and so on.

Specification

Model				BS-1000	BS-1000A
Body	Eyepiece WF10×			●	●
	Auxiliary Objective	0.3×		○	○
		0.5×		○	○
		2×		○	○
	Medium Adapter 0.5×			○	○
	Zoom Ratio: 1: 6.5(0.7×-4.5×)			●	●
	Total Magnification: 7×-45×			●	●
	Working Distance: 90mm			●	●
Stand	Focusing Range: 55mm				●
	Φ90mm Frosted Glass or Black/ White Plate & Clips				●
	Various Stand				○
	Mechanical Stage				○
Illumination	Reflect Illumination		6V/15W Halogen Lamp with Reflector		●
			Annular LED Illuminator BAL-8	○
			Cold Light Illuminator	○	○
	Bottom Illumination		6V/20W Halogen Lamp		●
Video System	C Mount			●	●
	MDE-130 Digital Eyepiece			○	○
Dimension & G.W.	*38.5cm34cm37cm, 7kg*				●

Note: ●Standard Outfit, ○Optional
