Wuxi Kingunion S & T Co., Ltd.
China Manufacturer with main products: Candy Machine, Chocolate Machine, Packing Machine, Food Machine, Raw Materials, Chemical Machine, Energy Products, Agriculture Machine |

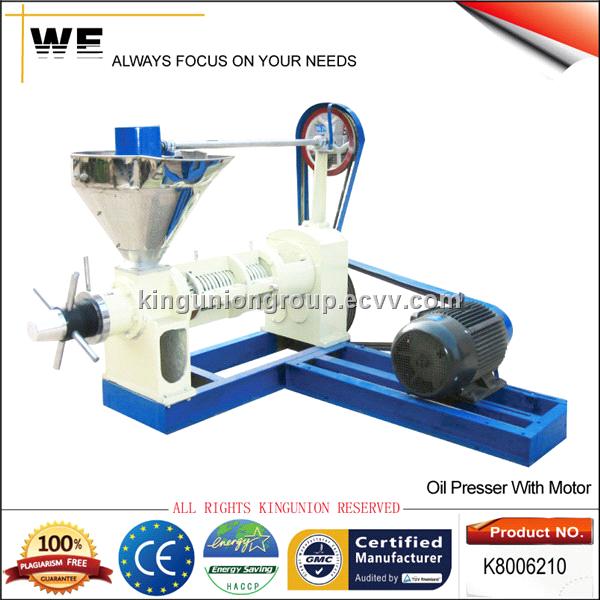

Oil Presser with Motor (K8006210)
| Supply Ability: | 10 Unit/Units per Month |
|---|---|
| Payment Terms: | L/C, D/P, T/T, Western Union, MoneyGram |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Jiangsu in China |
| Packaging Details: | International Standard Wooden Cases |
Quick Details
- After-sales Service Provided: Engineers available to service machinery overseas
- Certification: HACCP CE FDA GMC SGS
- Weight: 140kg-1650kg customized
- Dimension(L*W*H): customized
- Power(W): customized
- Voltage: customized
- Model Number: K8006210
- Brand Name: kingunion
- Production Capacity: customized
- Automatic Grade: Automatic
- Type: Food machine
- Usage: multiple kinds of oil
- Condition: New
Specifications
Legal
Notice
Recently, we have detected that
some unprofessional companies or privates are embezzling the same pictures &
information as Kingunion Group's for making biz, which has frequently launched
bad influence on the image of kingunion and damaged benefits of customers.
Accordingly, we, as the law department, would like to reclaim that all products'
pictures & technical information are designed & translated by kingunion
team, and we will take the law or other measures to protect our privilege if any
plagiarism is detected or reported.
Main
Description
This oil pressing machine ,
which consists of feed hopper , extracting system , heating system , controlling
system & machine frame ,is widely used in squeezing oil from vegetable oil
seed, such as Soybean, peanut, sunflower seed, cotton seed, sesame, tea seed,
copra, jatropha curcas, castor seed, etc.
Main
Principle
Materials Feeding -----Controller starting
-----Pressing system heating -----Materials Extracting -----Oil Cake extruded
----Oil Pressing -----Finished Oil
Main Parameter
| Model | Production capacity | Overall power | Rotation speed | Worm diameter | Overall weight | Overall dimension |
| KU-68 | 1-1.5t/d | 5.5kw | 130-160r/min | 68mm | 140kg | 1000×538×1050mm |
| KU-80 | 2-4t/d | 5.5kw | 45-50r/min | 80mm | 330kg | 1320×540×1020mm |
| KU-95 | 4-5t/d | 7.5kw | 30-40r/min | 95mm | 600kg | 1610×615×1260mm |
| KU-100 | 5-7t/d | 7.5kw | 30-40r/min | 100mm | 500kg | 1640×640×1200mm |
| KU-120 | 6-8t/d | 15kw | 45-55r/min | 120mm | 600kg | 1750×570×1320mm |
| KU-125 | 7-10t/d | 15kw | 35-39r/min | 125mm | 600kg | 1750×570×1320mm |
| KU-130 | 10-12t/d | 18.5kw | 35-39r/min | 130mm | 780kg | 1980×680×1460mm |
| KU-160 | 14-18t/d | 22kw | 35-39r/min | 130mm | 980kg | 2020×700×1480mm |
| KU-180 | 18-20t/d | 22kw | 35-39r/min | 130mm | 1650kg | 2300×800×1650mm |
| PS: All Specifications can be Customized | ||||||
Main
Feature
1. Adopting advanced
extracting technology ensures continuous in extracting performance, oil
extracting rate with more than 85%.
2. More options in different
oil applications ,compact structure design, easy operation & cleaning
,energy-saving.
3. All Food Grade 304 SS makes materials cater HACCP CE
FDA GMC SGS International Standards.
4. Imported electric appliances, such
as Omron, Siemens, Schneider, etc. ensure the stable working performance without
default.
PS: To issue FORM A, FORM B, FORM E, FORM
P, C/O, etc. for the privilege for local
Custom Duty.
Oil Expeller from this supplier
FOB Price: 1,000.00-3,000.00 USD/Set
Min Order: 1 Set
