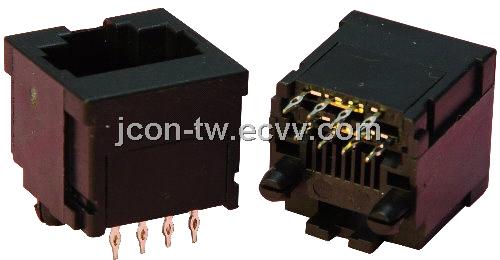

RJ45-J259-8P8C-TH PRESS FIT
| Payment Terms: | T/T |
|---|
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
Related products from verified members
Specifications
Electrical:
1.Voltage Rating: 125 Vac Rms.
2.Current Rating: 1.5 Amp.
3.Contact Resistance: 40 Milliohms Max.
4.Insulation Resistance: 1000 Megohms Min @500 Vdc.
5.Dielectric Strength: 1000 Vac Rms 60Hz, 1Min.
Mechanical:
1.Operating: 750 Cycles Min.
1.Operating: 750 Cycles Min.
Environmental:
1.Storage: -40℃ To +85℃.
2.Opertion: -20℃ To +75℃.
Mates With Modular Plug Conforming To FCC Part 68,Subpart F.
1.Storage: -40℃ To +85℃.
2.Opertion: -20℃ To +75℃.
Mates With Modular Plug Conforming To FCC Part 68,Subpart F.
Materials :
1.Housing: Engineering Thermoplastic.
Thermoplastic UL94V-0.
2.Plating: Gold Plating Over Nickel In Contact.
Tin Plating Over Nickel In Solder Area.
3.Contact: Phosphor Bronze.
.
1.Housing: Engineering Thermoplastic.
Thermoplastic UL94V-0.
2.Plating: Gold Plating Over Nickel In Contact.
Tin Plating Over Nickel In Solder Area.
3.Contact: Phosphor Bronze.
.
