Home >Products Catalog > Knitting Machine > High Speed Computerized Jacquard Belt-Weaving Machine

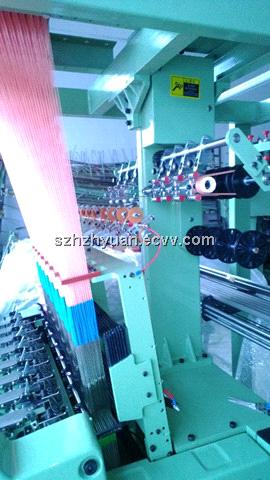

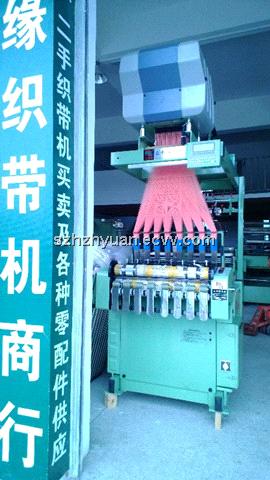

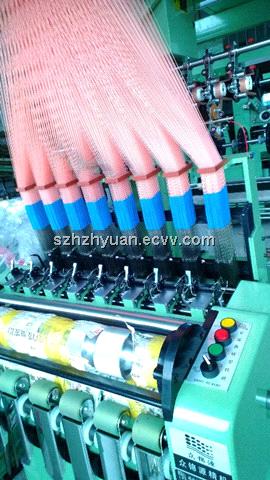

High Speed Computerized Jacquard Belt-Weaving Machine

Shipping:	2weeks after payment
Payment Terms:	T/T

Inquiry Now

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe

Quick Details

Condition: New
Product Type: Belt
Type: Jacquard
Brand Name: Chong Kin Yuan
Model Number: 2/110/640;4/65/640;4/80/640;6/45/384;6/55/512;6/65/640;8/30/240;8/35/320;8/45/384;10/30/240;
Knitting Style: Flat
Knitting Method: Single
Computerized: Yes

Specifications

High Speed Computerized Jacquard Belt-weaving Machine
Spcification:

Model	2/110/640	4/65/640	4/80/640	6/45/384	6/55/512	6/65/640	8/30/240
Tapes	2	4	4	6	6	6	8
Reed width(mm)	110	65	80	45	55	65	30
Jacquard hooles	640	640	640	384	512	640	240
Weft density	3.5-36.7WEFT/CM
Speed	800-1000RPM
Heald frame	6-10pcs
Motor	1.5kw
Pattern chain cycle	8-40
Standard attachment	21-36 beam position creel

Jacquard Machine: For the production of patterned elastic jacquard fabrics like underwear tape, pants band, lanyard, shoelace, ribbon; More suitable for weaving fine warp threads.
