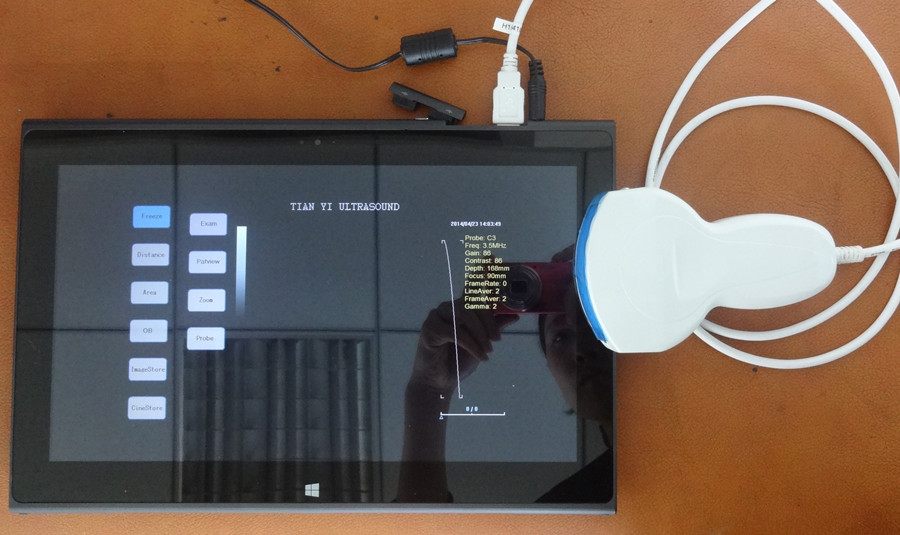

Tablet ultrasound scanner with USB probe

FOB Price:	2,100.00 - 2,300.00 USD/Unit
Supply Ability:	50 Unit/Units per Month
Shipping:	FOB china
Payment Terms:	T/T

In Stock

Inquiry Now Start Safebuy Order

ECVV Safebuy Services

According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
Safebuy Service Guarantee

Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Hubei in China
Packaging Details:	Packing size:267x173x15mm;carton

Quick Details

Brand Name: Tianyi
Model Number: TY-6858A-1
Portable: Yes
Warranty: 18mths
Certification: CE,ISO9001,ISO13485

Specifications

It integrates ultrasound power in a probe,
an ideal device for emergency,first-aid,
bedside ultrasound diagnosis. It also makes
a good choice for musculoskeletal application,
as well as for veterinary uses.
Apply to any computer/ tablet in system of
Windows 2000/ Windows XP/Windows 7/Windows 8
_{Image Processing}

TGC
Gross gain 25 levels (0-100db, step=4)
Contrast 25 levels (0-100, step=4)
Focus C: 15 levels (25-150mm, step=5mm)
L: 15 levels (15-85mm, step=5mm)
MC: 15 levels (25-150mm, step=5mm)
Image invert: Horizontally invertible

^Functions
Cine loop: at least 512-frame cine loop memory
Storage media: 16GB ROM, TF memory card slot
Zoom: 3 levels (1.4/1.7/ 2)
New (Patient): ID, Name, Gender, Age
PatView: image, cine
Measurement & Calculation
B mode: distance, circumstance, area
M mode: heart rate, time, distance, velocity
Obstetrics: BPD, FL, CRL, HC, AC, GA, FW

^{Available in :}
USB Electronic convex array transducer C3: CA3.5MHz/R60
USB Electronic linear array transducer L7: LA7.5MHz/L40
USB Electronic micro-convex array transducer M3:CA3.5MHz/R20
