3 axle 38000 Liters fuel tanker semi trailer (38CBM)

Supply Ability:	20,000 Unit/Units per Year
Shipping:	30 days after receiving 30% deposit by T/T
Payment Terms:	L/C, T/T

Inquiry Now

Export Markets:	South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia
Place of Origin:	Shandong in China
Packaging Details:	nude

Quick Details

Main Dimensions
Overall Length	11240mm
Overall Width
Overall Height	2800mm
Tare Weight	11500KGS
Loading Capacity	38m3

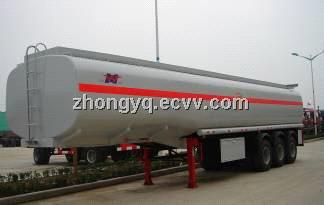

Photo only for reference, final product can be made according to exact requirements
Tank Body
Shape	Mono block Cylinder
Total Volume(m3)	38CBM
Tanker Body Material	6mm steel / Q235 high tensile strength steel
End plate	6mm steel sheet/Q235 high tensile strength steel
Manhole cover	Aluminum alloy API manhole cover, ∮500mm , 2 sets with 2 breather valve
Bottom Valve	1-2 sets of Aluminum API Pneumatic Bottom Valve
Discharging valve	2-4 set ∮100mm discharging valves
Discharging Pipe	4”rubber hose, 2 pcs, 6m long
Chassis
Main Beams	Special design I beam, connected by bolts and nuts with tanker body, removable from tanker body for separate transportation;
Axle	3 axles
	L1 12 Ton
Landing Gear	JOST brand Two-speed, manual operating, heavy duty landing gear
King Pin	JOST brand 2” bolt-in king pin
Suspension	German design heavy duty mechanical suspension
Pneumatic Braking System	WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber; 45L air tanks.
Wheel rim	8.25R22.5 wheel rim, 13 pieces
Tire	11R22.5 tubeless tire with one spare tire, 13 pieces
Painting	Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint
Accessories	One standard tool box
