Home  >Products Catalog > LED Flood light > High Efficiency IP66 130lm 400W/600W/800W/1000W LED Football Field Stadium Flood Lighting

High Efficiency IP66 130lm 400W/600W/800W/1000W LED Football Field Stadium Flood Lighting

Supply Ability: 40,000 Piece(s) per Month
Shipping: 5-7 days for samples order; 15-20 days for mass production
Payment Terms: L/C, T/T, Western Union, Paypal
Export Markets: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin: Guangdong in China
Packaging Details: 1PCS/BOX

Quick Details

  • Item Type: Flood Lights
  • Brand Name: Rayborn
  • Certification: CE,EMC,LVD,RoHS,UL,VDE
  • CRI (Ra>): 80
  • Lamp Power(W): 400
  • Input Voltage(V): AC 100-277V
  • Model Number: Rb-Fll-400wsd
  • IP Rating: IP65
  • Lamp Body Material: Aluminum
  • Working Lifetime(Hour): 50000
  • Color Temperature(CCT): Pure White
  • Lamp Luminous Efficiency(lm/w): 130
  • Lamp Luminous Flux(lm): 52000
  • LED Power: 400W
  • Input Voltage: AC 100-277V
  • LED Type: SMD3030
  • CCT: 3000K,4000K, 5000K, 6000K
  • Luminous Flux: 52000lm
  • IP Rate: IP65
  • Driver: Meanwell
  • Power Factor: >0.98
  • Viewing Angle: 60/90/60*150degree

Specifications


High Efficiency ip66 130lm 400W/600W/800W/1000W LED Football Field Stadium Lighting


Specifications:
LED Floodlight/Outdoor LED Flood lighting (10-1000w)

400W LED Floodlight Main Technical Parameters
Item No.: RB-FLL-400WSD
Input Voltage: AC 100-277V
Freqency Range: 50Hz~60Hz
Power Factor: >0.98
Power Efficiency: >92%
Lamp Driver Meanwell *2PCS
LED Chip: SMD3030
LED Power 400W
LED QTY:  384pcs
LED Working Voltage: DC36 ~42V
System Consumption: 408W
LED Luminous Flux Warm White 48000LM
Pure White 51200LM
Cool White 52000LM
Viewing Angle: 60/90/60*150
Illuminance Uniformity: >0.6
Color Temperature Warm White 3000K~3500K
Pure White 5000K~5500K
Cool White 6000K~6500K
Color Rendering Index Ra>80
Light Distribution: LED points visible
Light Design: LED+The secondary light distribution lens
LED Junction Temperature: 115oC
Working Temperature: -35oC~55oC
IP Grade: IP65
Working Life-span: 50000 H
Power Line: 1.0 mm three line
Connect Wire Brown L
Blue N
Yellow / Green G
The color of the lamp shell Black
Size: 598*373*130mm
High Efficiency IP66 130lm 400W600W800W1000W LED Football Field Stadium Flood Lighting

LED Flood light Features :

LED Chip: SMD3030 LED Chips which is the most famous Brand in chips field, high efficiency high lumuns and long lifespan, high quality.

Power Supply: SUNPER LED flood light use Meanwell UL approved driver, IP65 and high quality, it improved lights performance. Power efficiency 92.

Colour temperature: LED floodlight provide a range of colour temperatures from 3000, 4000 and 6000 Kelvin helping to enhance a building's exterior.

Optics: Optical assembly: hermetically sealed providing IP65. Great light uniformity: Thanks to the advance LED optical systems the fixture maximize the utilization of light onto the target area, improving the uniformity of light.

Housing: Die cast aluminum housing electrostatically sprayed with a polyester powder paint finish, following anti-corrosion priming, and oven cured at 180oC.

Cable: silicon rubber cable for power input. Fasten with screw in the cable gland.

Warranty: 5 years. Do not attempt to take housing apart as this will ruin the seal and void all warranty.

Certification: DLC FCC CE RoHS approval.

Quality Control: Rigorous product testing includes high-low temperature tests, waterproof tests, shockproof tests, burn-in testing, tensile test, salt spray test and more to ensure long-term performance.

Angle Adjustable: Adjustable stainless steel mounting bracket allows you to direct light where you need it.



LED Flood light Competitive Advantage :

1.  High efficiency to meet rigorous photometric requirements.
2.  System rating 50,000 hours LM80 to reduce maintenance.
3.   LED Flood light has high-pressure cast aluminum electrical box painted electroplating both inside and outside, stainless steel or plating chromium fittings, making the installation flexible and convenient. Scuba patent technology making the optical system precision and efficiency.
4.  LED high efficiency and long life, not only provides a bright, diversity, lasting and innovative lighting environment, but also greatly reduce the purchase system and maintenance costs.
5.  Passed DesignLights Consortium (DLC) qualifications.
6.  Vented housing design isolates LED module from driver for long life and improved performance.
7.  Tempered glass lens protects LEDs and allows for easy cleaning/debris removal.
8.  Adjustable mounting bracket allows you to direct light where you need it.
9.  IP65 Rated.

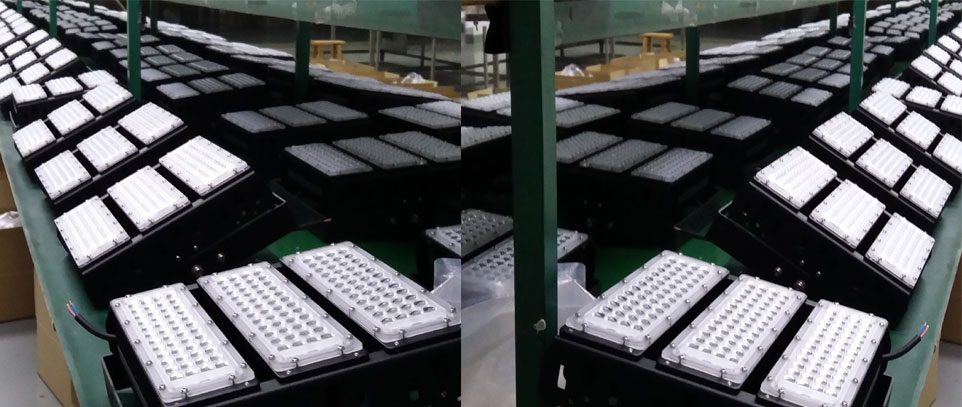

LED Flood light 12hours aging test :

Before shipping, all the LED flood lights will be over 12 hours aging tested, inspection department will test 100% products including light up test , power wattage test , high-Voltage test , waterproof test , ground connection test and so on, defective rate is controlled  less than 0.1%. Quality is ensured, you can be assured.
High Efficiency IP66 130lm 400W600W800W1000W LED Football Field Stadium Flood Lighting

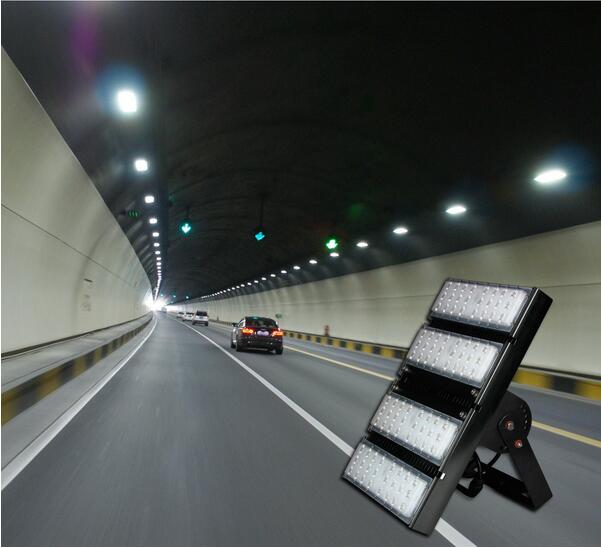

Outdoor LED Flood light Applications

1. Advertising board,playground and stadium lighting.
2. Parking lot and airport lighting.
3. Highway and Railway tunnel lighting.
4. Bridge and culvert lighting.
5. Square,garden,and building lighting.
Widely used in factory,gymnasium,billboards,buildings,lawns,landscaping,offices,the site of light project and decorative lighting project etc.
High Efficiency IP66 130lm 400W600W800W1000W LED Football Field Stadium Flood Lighting

Payment terms

1. Payment: T/T, L/C at sight, Western Union ,Paypal available
2. Samples can be available within 5-7 working days; Order: 10-20Days
3. Shipping freight is quoted under your requests
4. Shipping port:Shenzhen , China
5. Discouts are offered based on order quantities


FAQ

1. What is the general business process?

Answer : Send Inquiry to Rayborn. Specification Confirmation Quotation Sample List Confirm Proforma Invoice Payment Bank Slip Sample Delivery Sample Satisfactory Bulk Order List Proforma Invoice 30% Deposit Payment in Advance Production Ready 70% Balance bank slip Delivery After Sale Service

2. What is the warranty?

Answer : 3~5 years warranty is offered depending on different types of lights. If item fails due to quality problem during warranty, we can send new replacement with freight on ours immediately if urgently. Or we prefer to send replacement with next order.

3. What is the payment term?
Answer : For sample order, we can accept T/T, Paypal, West Union, 100% in advance. For bulk order, 30% deposit in advance by T/T, 70% balance before shipping. For very big order, L/C is negotiable

4. Can I add my logo on the product label?
Answer : Yes, but order quantity is requested depending on different lights.

5. I don't know how many Led Flood Light should I use, can you advise?
Answer : Yes, we can offer our professional solution for you, IES file is available if you have the design team.
