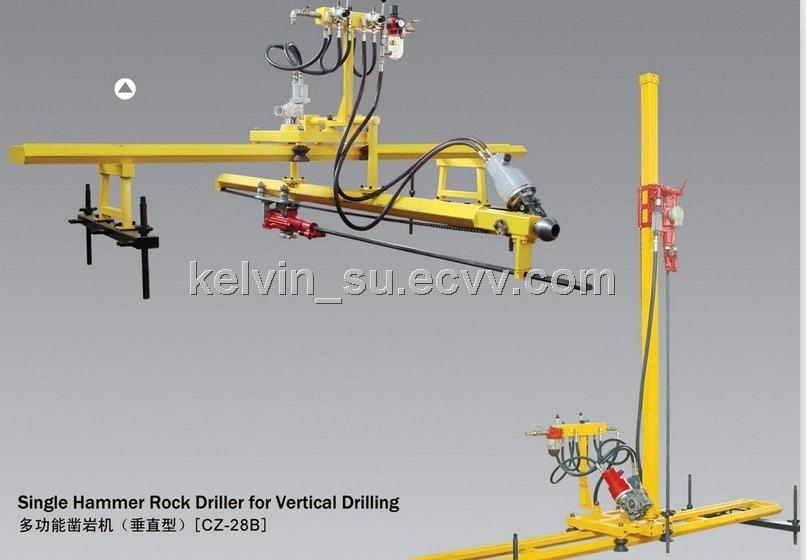

Multifunctional Rock Driller --one hammer

Payment Terms:	L/C, T/T, Western Union

Inquiry Now Start Order

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Fujian in China
Packaging Details:	wooden case

Quick Details

Warranty: half year warranty

Specifications

Production description:

The type of Multifunctional driller is mainly used in quarry , available for horizontal , vertical and slantwise drilling with accuracy to divide large blocks into smaller pieces , which is necessary to assist diamond wire saw machine working in stone quarries.

Driller Code	CZH-29B (horizontal)
Model	YT-29A
Rated track length	3m
Max. drilling depth	6m
Drilling diameter	34mm-42mm
Min.air pressure	0.6MPa
Drilling speed	30m/h
Total compressed air consumption	7m3/min
Track travel	2m
Advance device	Pneumatic motor , chain
Cross travel device	Handwheel , gear , rack
Drilling direction	Any direction
Number of the hole hammer	1
Total weight	300kg
