PAN-ASIA SHIP ENGINEERING CO.,LIMITED
China Manufacturer with main products: tug boat, crane barge, floating crane, dredger, cutter suction dredger, trailing suction hopper dredger, barge, split hopper barge, IHC,... |
Related products from verified members
Specifications

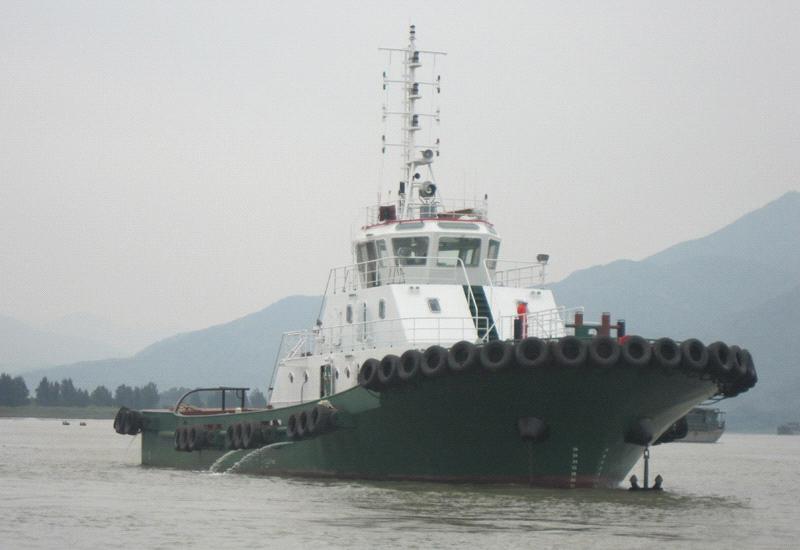

4800hp ASD
|
items
|
description
|
specs
|
|
Main items
|
Vessel type
|
4800hp ASD |
|
|
LOA
|
34.9m
|
|
|
Design water line
|
32.5m
|
|
|
breadth
|
12m
|
|
|
depth
|
4.6m
|
|
|
Design draft
|
3.4m
|
|
|
Design load placement
|
700.3t
|
|
|
Accommodation
|
12
|
|
|
Class
|
zc
|
|
|
Navigation area
|
offshore
|
|
|
Speed
|
13kn
|
|
|
Design bollard pull
|
50t
|
|
|
Endurance
|
>1500nm,about12days
|
|
|
GT
|
460t
|
|
|
NT
|
138t
|
|
Anchor
|
Weight,no.
|
660kg*3
|
|
|
Length of anchor chain
|
302.5m
|
|
|
Diameter of anchor chain
|
22m
|
|
Towing cable
|
type
|
6x24+7FCφ18mm
|
|
|
No.,length
|
180m×2
|
|
|
Breaking strength
|
133kN
|
|
Mooring rope
|
type
|
φ28mm
|
|
|
No.,length
|
120m×4
|
|
|
Breaking strength
|
126kN
|
|
Environment condition
|
Sea water tempature
|
32℃
|
|
|
ambient temperature
|
45℃
|
|
|
atmospheric pressure
|
0.1MPa
|
|
|
relative humidity
|
60%
|
|
Main engine
|
Type,no
|
LC8250ZLC-2*2
|
|
|
Power,rpm
|
1765kW ,825rpm
|
|
|
fuel consumption
|
≤210g/kW·h
|
|
|
lubricating oil consumption
|
≤1g/kW·h
|
|
Gear box
|
no.
|
2
|
|
|
speed ratio
|
i=1: 4.8
|
|
Diesel generator set
|
Type,no.
|
CCFJ90J-WJ*2
|
|
Prime motor
|
Type,no.
|
TBD226-6CD*2
|
|
|
Rated power
|
110KW
|
|
|
Rated rpm
|
1500rpm
|
|
|
fuel consumption
|
≤198g/kW·h
|
|
|
lubricating oil consumption
|
≤0.8g/kW·h
|
|
alternating-current generator
|
Type,no.
|
MP-H-90-4*2
|
|
|
Power,rpm
|
90Kw,1500rpm
|
|
|
Volt
|
400V
|
|
Mooring generator set
|
Type,no.
|
CCFJ30J-WJ*1
|
