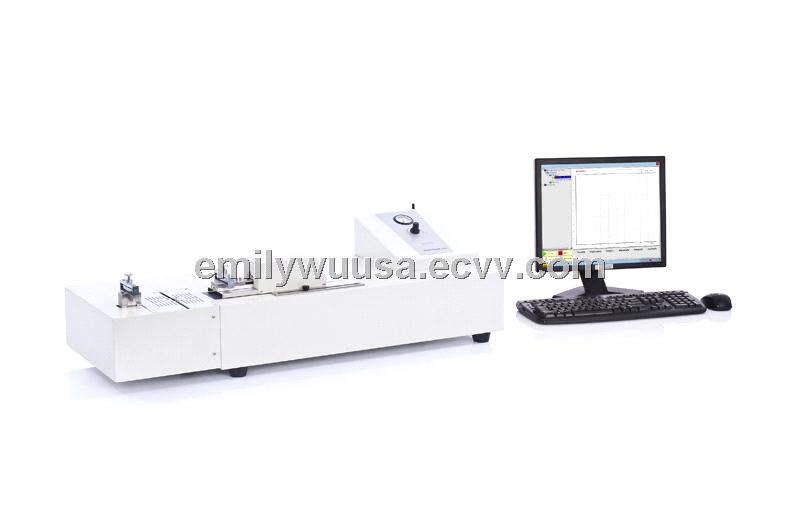

i-THERMOTEK 2500 Hot Tack Seal Tester for Flexible Barrier Materials

Supply Ability:	10 Set/Sets per Week
Payment Terms:	T/T

Inquiry Now

Related products from verified members

Weather Strip

Price:

Min. Order:
Impregnator - One StepSeries

Price:

Min. Order:

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	United States
Packaging Details:	Veneer Case

Quick Details

Brand Name: Labthink
Model Number: i-THERMOTEK 2500

Specifications

i-THERMOTEK 2500 Hot Tack Seal Tester for Flexible Barrier Materials is applicable to the determination of hot tack and heat seal performance for plastic films, composite films and other packaging materials as well as peel and tensile tests for adhesive, adhesive tapes, composite films, plastic films, paper and other flexible materials.

Features:
1.With Digital P.I.D temperature control system, the preset temperature can be reached in a short time without fluctuations
2.Four force testing ranges and six testing speeds are available to meet the requirements of distinct customers
3.Hot tack testing function is available in this instrument
4.Automatic zero, error alert, overload protection and stoke protection guarantee the safety operation

5. i-THERMOTEK 2500 Hot Tack Seal Tester for Flexible Barrier Materials can be started manually or by pedal switch which is convenient for customers operation
6.Embedded computer control system provides safer and more reliable data management as well as test operation.
7.i-THERMOTEK 2500 Hot Tack Seal Tester for Flexible Barrier Materials can be easily operated with a mouse, a keyboard, and a monitor, without requiring a PC.

Technical Specification:
Test Range:0~200 N (30 N, 50 N, or 100 N is optional)
Test Accuracy:1% of reading value
Resolution:0.01 N
Sealing Temperature:Room temperature~250 °C
Accuracy:±0.2 °C

i-THERMOTEK 2500 Hot Tack Seal Tester for Flexible Barrier Materials conforms to the following standards:ASTM F1921, ASTM F2029, QB/T 2358-1998, YBB 00122003
