Home >Products Catalog > Desktop RF Jammer > New design!High power 8 antennas GSM 3G+ GPS + WIFI + Wimax+4G Signal Jammer shield blocker

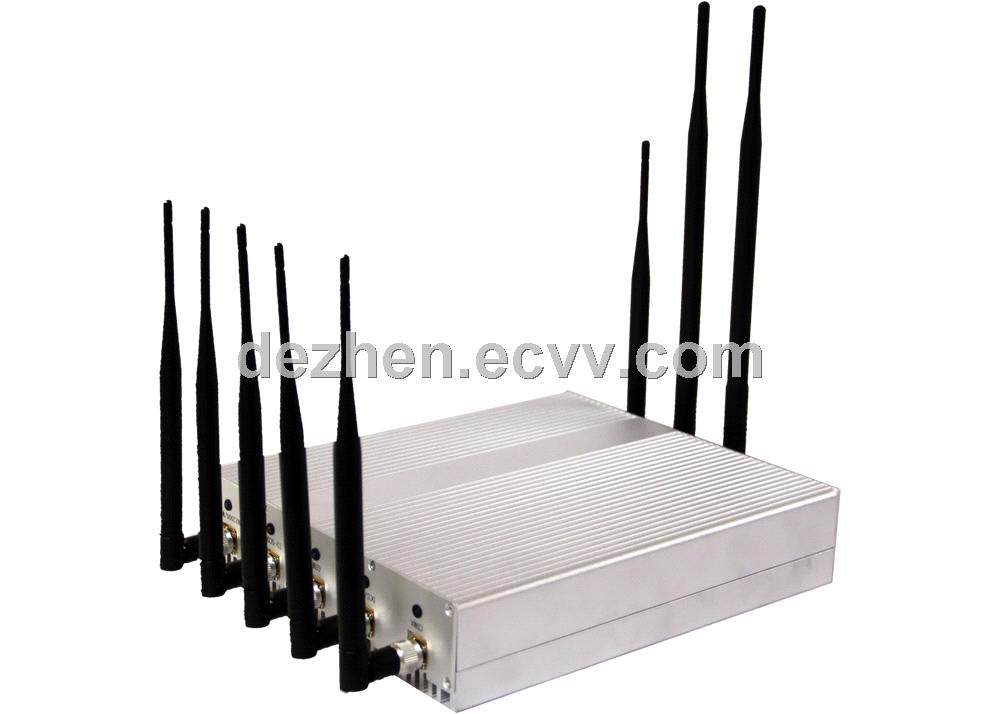

New design!High power 8 antennas GSM 3G+ GPS + WIFI + Wimax+4G Signal Jammer shield blocker

Supply Ability:	30,000 Set/Sets per Month
Shipping:	Usually one working day depend on quantity
Payment Terms:	T/T, Western Union

Inquiry Now

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Guangdong in China
Packaging Details:	Polyform and neutral box

Quick Details

Brand Name: DEZHEN
Model Number: DZ-101B-8

Specifications

Technical

◎ Taking use of technology of interferencing superhigh frequency.

◎ High effective channel power with rater big semidiameter of interception.

◎ Effectively making subsections, just interferencing downlink and causing no interception of base station.

◎ Imported elements: Slow start up design of circuit can avoid the appearance of sparking when turn on or turn off the machine. Furthermore, these elements can maintain the stable operation condition with high intergration.

Specification

Output port	Frequency	Average out-putting power	Channel out-putting power
CDMA	851-894MHz	34dBm	6dBm/30KHz(min)
GSM	925-960MHz	34dBm	6dBm/30KHz(min)
DCS/PCS	1805-1990MHZ	33dbm	5dbm/30Khz (min)
GPS	1575.42MHZ	33dBm	2dBm/30KHz(min)
WIFI	2400-2500MHZ	33dBm	2dBm/30KHz(min)
3G	2110-2170MHZ	30dBm	2dBm/30KHz(min)
Wimax	2300-2400MHz	30dBm	2dBm/30KHz(min)
Or 4G	725-770 MHz	30dBm	2dBm/30KHz(min)
4G	2620-2690 MHz	30dBm	2dBm/30KHz(min)
Running temperature: -10 to +55℃ Power supply: AC adapter (AC110-240V, DC19V/4.5A) Jamming range(radius): 2-50m (Depend on local signal intensity) Omni Antenna: 8 pcs Operate time: 24 hours continuous
Output power: 20W Energy consumption: 50w Weight: 3.5 KG Dimension: 240mm(L)× 210mm(W)× 51mm(H) Packing: neutral packing; Logo can be printed per customer' s requirement based on quantity.
