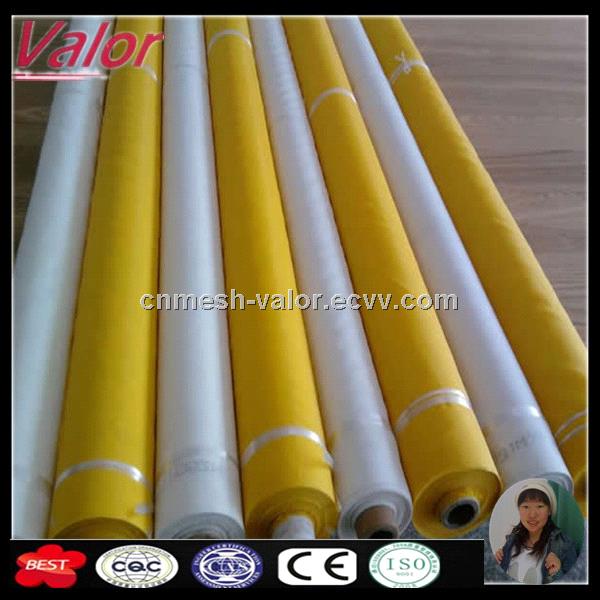

Polyester Filter Mesh

FOB Price:	1.00 - 20.00 USD/Square Meter
Supply Ability:	500,000 Meter/Meters per Month
Shipping:	tianjin xingang port, delivery within 15 days after receive advance charge
Payment Terms:	L/C, T/T, Western Union

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Hebei in China
Packaging Details:	packed on a cardboard tube with polywoven bag or customized

Quick Details

Brand Name: Valor
Model Number: NM03
Application: Screen
Material: ppPolyester
Wire Gauge: 023mm
Mesh Size: 20-100
Hole Shape: Square
Surface Treatment: Galvanized
Technique: Crimped
Thickness: 50-100micron
Usage: Liquid Filter,industrial filtration and separation
color: white,yellow,black
Width: 115,127,158,165,182,218,254,316 or customized

Specifications

Polyester Filter Mesh

FDA Certificate
ISO9001:2008Certified management system by SGS
Feature:industrial filtration and separation

Polyester was introduced to the screen printing market over 40 years ago and quickly replaced traditional silk as the fabric of choice among screen printers all over the world. It is a material that is uniquely suitable for screen printing because of its tensile strength, elastic memory and resistance to chemicals, abrasion heat and moisture. There are 3 types of polyester fabrics used in screen printing and they are monofilament, low-elongation monofilament and multifilament. Most of today's screen printers use monofilament polyester, but the traditional type is rapidly being replaced with "Low-Elongation" fabric, which brings many new benefits to the screen printing process.

Polyester Filter Mesh is one of the most advanced high-tech fabric products for screen printing. We provide polyester mesh for screen printing with a mesh variety of 20 mesh/inch, 25 mesh/inch, 30 mesh/inch, 40 mesh/inch, 50 mesh/inch, 60 mesh/inch, 80 mesh/inch, 90 mesh/inch, 100 mesh/inch, 110 mesh/inch, 120 mesh/inch, 135 mesh/inch, 160 mesh/inch, 180 mesh/inch, 200 mesh/inch, 230 mesh/inch, 250 mesh/inch, 280 mesh/inch, 305 mesh/inch, 355 mesh/inch, 380 mesh/inch and 420 mesh/inch(7T-165T).

Color Availability: White, Yellow and Black

Max. Width of polyester filter mesh: 3750mm

Advantages of Polyester Filter Mesh:
* Faster tensioning without damage to the threads
* Improved fabric strength
* Faster tension stabilization
* Higher tension threshold and breaking point
* Less tension loss during the stretching process
* Faster turnaround time from the screen room to the pressroom

Polyester Filter Meshcan be categorized into three types, the PP spun thread filter mesh, PP filament filter mesh and PP monofilament filter mesh.

Mesh: 6mesh-30mesh

Width: 36.5cm-1.8

Monthly output: 3000m

Features:
* Excellent chemical resistance
* UV resistance - poor
* Hydrolysis resistance - good
* Good resistance to acid and alkaline and also resistant to hydrolysis

* Improved registration due to stable tension

Technical data sheet

Fabric	Mest		Thread diameter	Mesh	Open	Fabric	Weight
number	count		Thread diameter	opening	surface	thickness	Weight
NO.	Cm		micron	micron	%	micron	g/m2
NO.	mesh/inch		micron	micron	%	micron	g/m2
JPP4	4	10	550	1950	61	950	262
JPP5	5	12	500	1500	56	850	271
JPP6	6	16	400	1267	58	780	208
JPP7	7	18	350	1079	57	675	186
JPP8	8	20	350	900	52	685	212
JPP9	9	24	250	860	60	455	145
JPP10	10	25	300	700	49	576	195
JPP12	12	30	250	583	49	470	162
JPP12	12	30	300	533	41	585	234
JPP14	14	35	300	414	34	595	273
JPP16	16	40	200	425	46	370	139
JPP16	16	40	250	375	36	485	217
JPP20	20	50	150	350	49	375	98
JPP20	20	50	200	300	36	385	173
JPP24	24	60	150	267	41	285	117
JPP28	28	70	120	237	44	215	87
JPP30	30	76	120	213	41	225	94
JPP32	32	80	100	213	46	165	69
JPP36	36	90	100	178	41	178	78
JPP40	40	100	100	150	36	190	87
JPP43	43	110	80	152	43	135	60
JPP48	48	120	80	130	38	145	62
JPP56	56	140	60	120	44	85	44
JPP59	59	150	60	110	42	98	46
JPP64	64	160	60	100	37	105	50
JPP72	72	180	50	90	41	82	39
JPP80	80	200	50	75	36	90	43
JPP100	100	250	40	60	36	65	35
JPP120	120	305	40	43	25	70	42
JPP130	130	330	40	37	23	75	45
