Particle counter, Oil condition monitor

Specifications

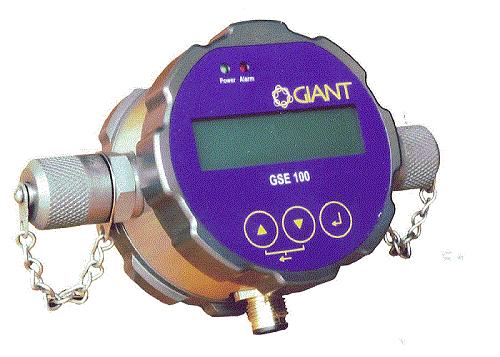

-GSE 100 is a compact particle monitor for continuous monitoring of the contamination in
  hydraulic fluids and lubricants and other special fluids.

[[[[[Design characteristics]]]]]

[[[Recognizing changes in your hydraulic fluid]]]

Particle monitors precisely display any change of contamination in your system. In that way you can react quickly when an increase in particle concentration occurs and the appropriate measures
can be taken to protect your system.

[[[High pressure range]]]

GSE 100 is designed for operating with pressures of up to 420 bar. In that way it can be mounted directly to a pressure line.

[[[Intuitive operating menu]]]

GSE 100 is equipped with an intensely illuminated graphic display and a keypad by which you may set up all required adjustments. The menu navigation is made up intuitively and logically. Users can adjust or set up parameters quickly and easily.

[[[Wide communication]]]

GSE 100 exports data to a serial interface or optionally to a CAN-Bus (CANopen).
Parallel, the configurable 4-20 mA interface can be connected.
Readings can either be run time-controlled, manual or started and stopped over digital input. The data can also be saved on the integrated memory unit.

[[[Other characteristics]]]

On the fluid side the GSE 100 is equipped with two minimess connections respectively, to connect the sensor generally in the off-line circuit to the system.
The electrical connection is installed via an 8-pole M12x1 circular plug. The integra-ted data memory allows data recording over a longer period. Besides all its technical functions the GSE 100 scores by its compact and optical design.
