Ningbo Eonkey Fiber Telecommunication Co., Ltd.
China Manufacturer with main products: Optical Fiber Splitter, Optical Fiber Splice Closure, Optical Fiber Patch Panel, Optical Fiber Splice Tray, Optical Fiber Patch Cord, Optical... |

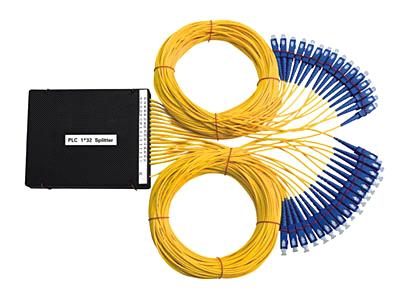

PLC splitter data sheet
| Supply Ability: | 30,000 Piece/Pieces per Week |
|---|---|
| Shipping: | Ningbo or Shanghai port |
| Payment Terms: | T/T, Western Union, MoneyGram |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Packaging Details: | Each packed in a plastic bag ,and then put in cartons |
Quick Details
- Brand Name: EONEY
- Model Number: PLC splitter data sheet EK03P-02
Specifications
Features
● Ultra-end insertion loss and associated loss of polarization
● good spectral uniformity
● wide wavelength bandwidth,
● a wide range of working environment
● High reliability
● Small Size
Applications
● can be widely used for FTTX
● Passive Optical Network (OPN)
● Cable TV Network (CATV)
● other optical signal splitter system
Standard compliance
● Telcordia GR-1209-CORE
● Telcordia GR-1209-CORE
● YD/T1117-2001
|
1x N |
|||||||||||||
|
Parameter |
Unit |
Specification |
|||||||||||
|
1x2 |
1x4 |
1x8 |
1x16 |
1x32 |
1x64 |
||||||||
|
Operate wavelength |
nm |
1260-1650 |
|||||||||||
|
Insertion loss |
standar |
dB |
3.6 |
7.0 |
10.2 |
13.3 |
16.5 |
20.0 |
|||||
|
MAX(p/s) |
3.8/4.0 |
7.2/7.4 |
10.5/10.7 |
13.5/13.9 |
16.5/17.2 |
20.0/21.5 |
|||||||
|
PDL |
dB |
≤0.2 |
≤0.2 |
≤0.2 |
≤0.3 |
≤0.3 |
≤0.3 |
||||||
|
Lossuniformaity |
dB |
≤0.6 |
≤0.8 |
≤1.0 |
≤1.4 |
≤1.6 |
≤1.9 |
||||||
|
Return loss@1550nm |
dB |
≥55 |
≥55 |
≥55 |
≥55 |
≥55 |
≥55 |
||||||
|
Wavelengthdependent loss |
dB |
≤0.5 |
≤0.5 |
≤0.5 |
≤0.5 |
≤0.5 |
≤0.5 |
||||||
|
Fiber length |
m |
1.2(±0.1) or customer specified |
|||||||||||
|
Fiber length |
Corning SMF-28eor customer specified |
||||||||||||
|
Fiber type |
dB |
≤0.5 |
|||||||||||
|
Temperature stability(-40 to +85) |
dB |
≤0.5 |
|||||||||||
|
Operating/storage temperature |
℃ |
-40 to +85 |
|||||||||||
|
Max optical power |
mW |
300 |
|||||||||||
Remark: 1. Operating wavelength is warranty by the design,the testing result offers the data of the 1310 to 1550nm.
2. The data above include the loss of the connector.
