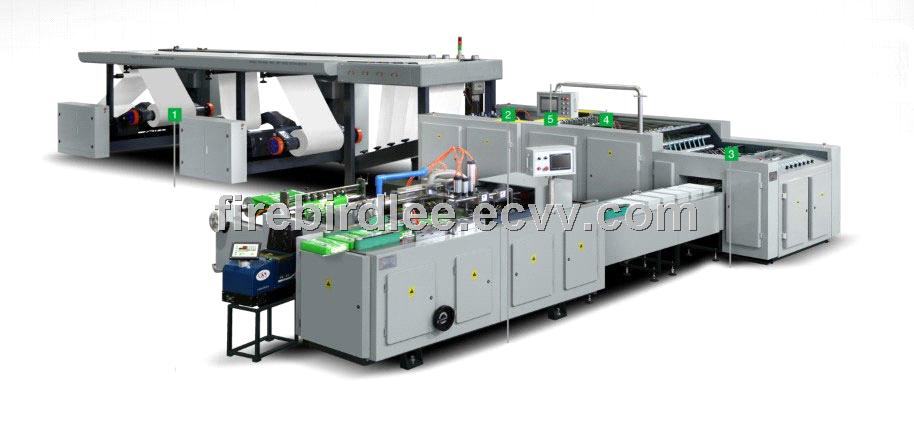

A4 Copy Paper Slitting, Sheeting & Ream Wrapping Machine

Specifications

Copy Paper Slitting, Sheeting & Ream Wrapping Machine(WTCP--A4) is our fully new creation. Advance technology is adopted, enhancing production speed greatly. The cutting precision is highly accurate, and achieving international standards of full automatic production\the effect of saving labor and time are realized simultaneously.

Features and Structures:
It is a integration of electric automatization\PLC controlling system and mechanical automation. The whole process consists of paper roll unfolding\cutting\counting, transporting \reams exhausting\packaging, so that labor intensity is decreased
1: Non-shaft roll-loading control system-----------------------------------: 2 sets
2: Advanced tension controlling system------------------------------------: 4 sets
3: Anti-warping mechanisms ------------------------------------------------: 4 sets
4: Slitting knife groups -------------------------------------------------------: 5 sets
5: Simultaneous cross-cutting knife group --------------------------------: 1 set
6: High speed paper feeding system ----------------------------------------: 3 sets
7: Low speed paper feeding system ----------------------------------------: 2 sets
8: Edge trimming and discharging system --------------------------------: 1 set
9: 2D oscillation, making sheets orderly; Screw lift used to collect sheets for reams ------------------------------------------------------------:
1 set
10: PLC counting device ------------------------------------------------------: 1 set
11: Reams of paper longitudinally ejecting equipment -------------------: 1 set
12: PLC failure alarm and machine haulting system and PLC control equipment -------------------------------------------------------------------:
1 set

Main Technical Parameters:
Max. Width of paper roll: 850mm
Net Cutting width: 550mm
Number of cutting: 4cuttings-A4 210mm(width)
Diameter of paper roll: 400-1200mm
Diameter of paper roll's core: 3"(76.2mm) or 6"(152.4mm)
Weight of paper sheet: 60-100g/ m2
Length of sheet: A4(297mm)
Paper quantity: 0-500 PCS
Max. Ream height: 65mm
Designing speed of paper cutting: 160m/min
Cutting Speed: 538times/min
Cycle time of ream exhausted: 4.3/min
Working Speed of paper cutting: 130m/min
Working Cutting Speed: 437times/min
Ream delivery speed: 3.5/min(14 reams/min)
Load of paper cutting: (max)400G/M2 (4× 100g/ m2
Paper cutting accuracy: ± 0.2mm
Paper cutting condition: 1. Stable Speed
2. Paper roll with no breakage
3. Qualified paper.
Transmission: AC Frequency conversion, stepless speed regulating
Main power source: 3phase/380V/50Hz
Control voltage: 220V AC/22V DC
Total Power: 35KW
Air consumption: 300NL/min
Pneumatic pressure: 6bar
Overall dimension(cutting unit): 15000× 2750× 2100mm
Weight(cutting unit): 12 T
Overall dimension(packing unit): 6000× 3400× 1600mm
Weight(cutting unit): 2.5 T
