698-2700MHz, 2/3/4-way Cavity RF Power Splitter/Divider(200W, IBS used)
| FOB Price: | 0.10 - 30.00 USD/Piece |
|---|
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
Related products from verified members
Quick Details
- Brand Name: setsail
- Model Number: YF-CPS-0727-XX-NF
- Frequency: 698-2700MHz
- product name: power divider/power splitter
- PIM3: -140dBc
- Connector: NF connector
- Company style: Manufacturer
- Power Capacity: 200W
- VSWR: 1.25
- Impedance: 50Ohm
- Color: Black-plated
- Company style: Manufacturer
Specifications
Specifications
1. We are Manufacturer of RF Power Splitter
2. OEM Service is available
3. 1000pcs in stock
4. Power Splitter

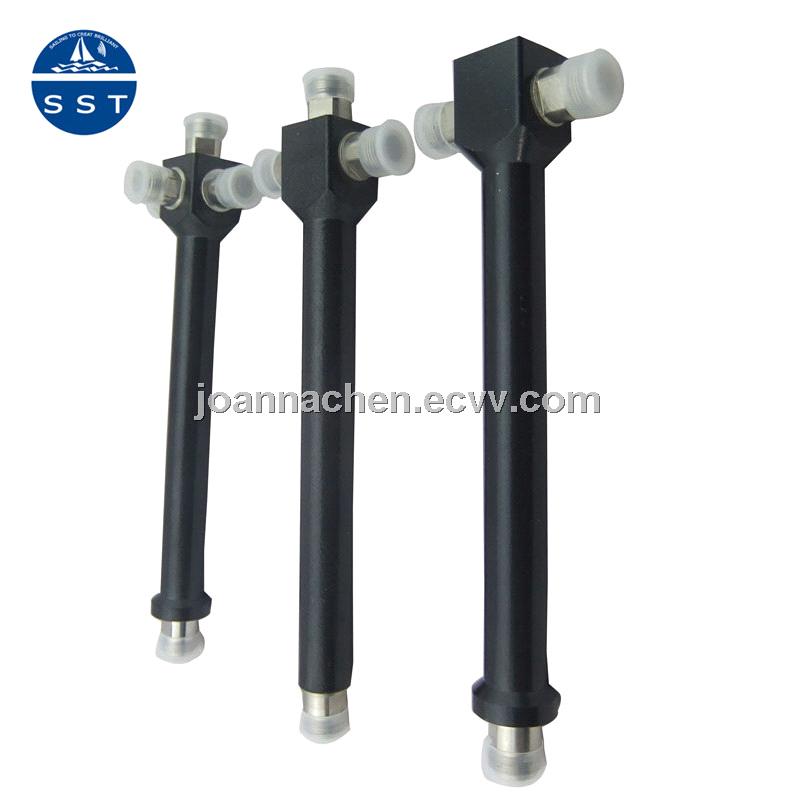

698-2700MHz Cavity Power Splitters (N-female Connector, 200W, PIM3=-140dBc)
Technical Specification:
|
Model |
YF-CPS-0727-02-NF |
YF-CPS-0727-03-NF |
YF-CPS-0727-04-NF |
||
|
Frequency(MHz) |
698-2700 |
||||
|
Insertion loss(dB) |
3.3 |
5.4 |
6.5 |
||
| Color |
Black-plated |
||||
|
VSWR |
1.25:1 |
||||
|
Power Capacity (W) |
200 |
||||
|
3rd order PIM |
-140dBc@2×43dBm |
||||
|
Impedance(ohm) |
50 |
||||
|
Temperature(deg) |
-35 deg to +60 deg |
||||
|
RF connector |
DIN-female |
||||
|
Relative Humidity |
5%-95% |
||||
|
Size(mm) |
2210.1×60.4×20 |
223.4×60.4×18 |
223.4×60.4×18 |
||
|
Wight(kg) |
0.17 |
0.21 |
0.235 |
||
