Wuxi Anmai Construction Machinery Co., Ltd.
China Manufacturer with main products: Anchor Drilling Rig, Jet Grouting Drilling Rig, Hydraulic Drilling Rig, Crawler Drilling Rig, Multi Functional Drilling Rig, Dth Drilling Rig... |
Portable Anchor Drilling Rig Machine MX-60A
| FOB Price: | 15,800.00 - 16,500.00 USD/Set |
|---|---|
| Supply Ability: | 80 Set/Sets per Month |
| Shipping: | 35-45 DAYS AFTER DEPOSIT RECEIVED |
| Payment Terms: | L/C, T/T |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Jiangsu in China |
| Packaging Details: | Nude Packing: 3400*650*1400 mm |
Quick Details
- Model Number: MX-60A
- Brand Name: ANMAI
Specifications
Portable Anchor Drilling Rig Machine MX-60A:
Hole diameter(mm)
φ90~φ185
Hole depth (m)
50~80
Drill Rod diameter (mm)
φ73, φ89
Hole angle(°)
-10-90
Rotary speed (r/min)
12, 25, 45, 60, 100, 125
Max torque (N.m)
2500
Power head feeding stroke(mm)
1800
Mast sliding frame stroke(mm)
600
Lifting force (kN)
42.5
Lifting speed (m/min)
0~1.65(adjustable), 1.65, 5.8, 7.5
Feeding force (kN)
25
Feeding speed (m/min)
0~2.7(adjustable), 9.5, 12
Power (Electric engine)(kW)
Power (Diesel engine) (kW)
22+1.5+0.15
30
Transportation Dimension(L*W*H)(mm)
3400*650*1400
Weight (kg)
500+115+885
Remark:Technical specifications are subject to change without prior notice and incurring responsibility for machines previously sold. The shown machines may have optional equipment. Technical data do not consider power losses.
2. Main Features:
2.1 Compact structure, light weight, detachable, easy moving, strong applicability to construction site, suitable for constructing upon staging in hills.
2.2 Power head:Large torque, longer stroke, low gravity center, and good stability.
2.3 High efficiency in drilling and high quality of boring. It can work with special casing-followed drill tools (such as drill rod, casing tube, eccentric bits etc), using the casing tube-wall protecting-boring technology in unstable stratum and deploying the spheroid drill bit to finish the boring.
2.4 Fully hydraulic control, easy operating, time saving, energy saving.
2.5 With orifice dust-collecting device to reduce environment pollution and to improve working environment

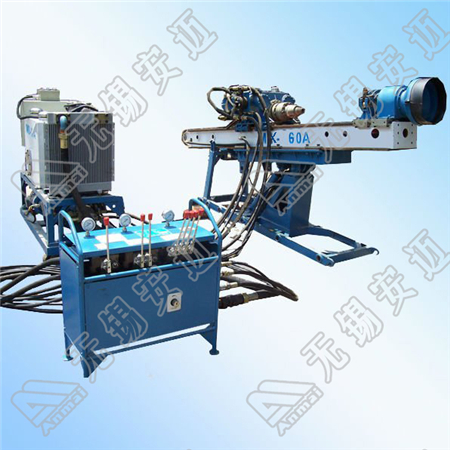

3. Machine Mounting Type
Separated type, it is divided into three parts: Console, Pump station and Main frame.
It's easy to assemble and disassemble. The operator can operate this anchor drilling machine far from the hole to improve work environment. When the work environment is small, you can select the mast of 1200mm length.
This small anchor drill is mainly for the anchoring engineering of slop/coast and dangerous rock/cliff mass for geological disaster prevention activity, and the anchoring engineering of high-edge slope or dangerous rock body etc to control displacement of building, and also for pit drilling and groundwork reinforcing engineering in urban construction site, for engineering of blowing up holes etc.
1. Technical Specifications:
