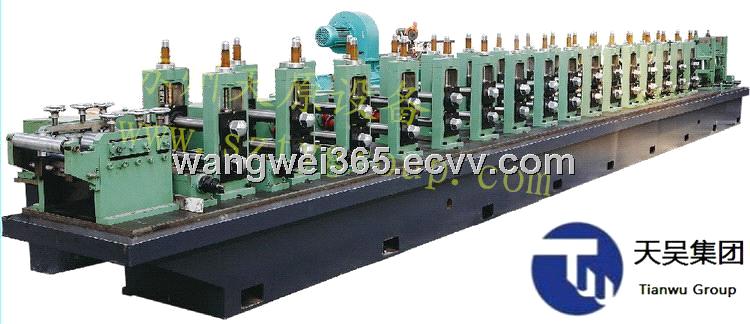

hollow guide rail producing line

FOB Price:	80,000.00 - 88,000.00 USD/Set
Supply Ability:	18 Set/Sets per Month
Shipping:	in the nine days to send the equipment to buyers
Payment Terms:	L/C, T/T

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Jiangsu in China
Packaging Details:	length 20m xwidth 3m

Quick Details

Brand Name: Tianyuan
Model Number: Ellipsis

Specifications

Hollow Guide Rail producing line is designed for making various Elevator Hollow Guide Rails with the wall thickness from 2.3mm to 3.2mm. This new type producing line has advantages like high precision, high processing speed. Its processing speed can be 4 times of traditional one.

Configuration of Pipe Mill:

1. Double-head decoiler

2. Leveling machine

3. Servo feeding

4. Punch(die)

5. Forming unit

6. Flying saw

7. Gear case

8. Pneumatic jack device

9. Run-out table

main technical parameters are as follows:

1) Metal strip width: 230mm

2) Metal strip thickness: 2mm

3) Charging speed greater than 20m/min

4) Frequency conversion driver: 18Kw

5) Reducer machine: 35.1:1Kw
