Home >Products Catalog > Laser Engraving & Cutting Machine for Soft Magnet/ Leather/Cloth/Arylic Cutter and Engraver Ql-1610

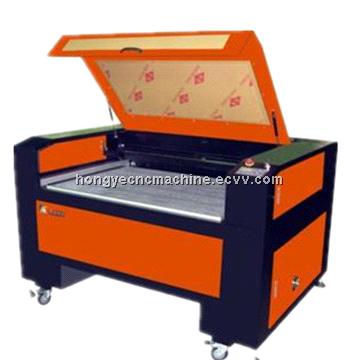

Laser Engraving & Cutting Machine for Soft Magnet/ Leather/Cloth/Arylic Cutter and Engraver Ql-1610

FOB Price:	1,900.00 - 21,000.00 USD/Set
Supply Ability:	420 Set/Sets per Month
Shipping:	Tianjin Shanghai , China
Payment Terms:	T/T, Western Union

In Stock

Inquiry Now

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Shandong in China
Packaging Details:	standard wooden case

Quick Details

Condition: New
Laser Type: CO2
Applicable Material: Acrylic,Crytal,Leather,MDF,Paper,plastic,Plexiglax,Plywood,Wood
Cutting Thickness: 20mm
Cutting Area: 1600*1000mm
Cutting Speed: 0-60000mm/min
CNC or Not: Yes
Cooling Mode: Water Cooling
Control Software: DSP
Graphic Format Supported: AI,DXF,BMP,DXP
Brand Name: QL
Model Number: QL-1610
Certification: CE,SGS
color: red and black/ grey/blue and white or optional
control system: Advanced DSP control system
Gassing system: Air compressor or air pump
Locating precision: 0.01mm

Specifications

laser engraving & cutting machine for soft magnet/ leather/cloth/Arylic cutter and engraver ql-1610

A.Machine Features details

1. Integration of photographic, mechanic and electric technologies, giving more stable performance.
2. Great processing precision, maximum tolerance at 0.05mm.
3. Extremely high engraving speed, 1000/s.
4. The leading technology of uninterrupted and fast curve cutting: With standard model at 60/s and advanced model at 300/s.
5. Optimized function of selecting shortest path, greatly improving working efficiency.
6. Customer optional cooling water machine for laser tube, greatly prolonging the working life of the tube and bettering engraving effect.
7. Imported big-diameter galvanized silicon reflection mirror of 10.6um length wave and ZnSe focus lens provide slighter light wane and finer focus.
8. Seamlessly compatible to such image processing softwares as AutoCAD, CorelDRAW, and, Wenti, giving output of original photos.
9. Support hand any drawn curves of AutoCAD.
10. Support files of various formats such as BMP, PLT, DXF, GIF and AI for image processing.
11. Advanced color management, supporting the combination of any colors, engraving in freely defined sequence, partial or total output in one time.
12. Perfect grade and grayness engraving.Techincal Parameter

B.Machine detail parameters

Machine Model	ql-1610
Working Size	1600*1000mm
Laser Power	80W/100W/150W/180W

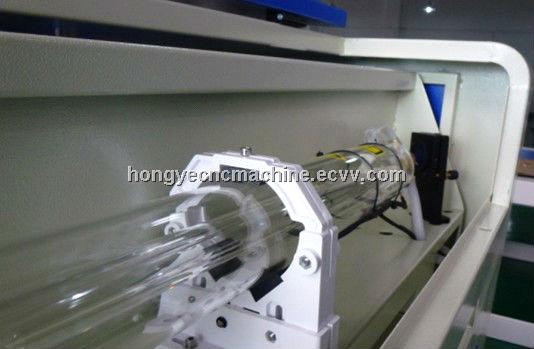

Laser Type	CO2 sealed high quality, water-cooling
Driving System	Stepper Motor Optional: Servo Motor
Cutting Speed	0-40000mm/min / 0-1575in/min
Engraving Speed	0-70000mm/min /0-2756in/min
Resetting Position Accuracy	≤±0.01
Power Supply	220V/50Hz, 110V/60Hz,
Operating Temperature	0-45°C
Operating Humidity	5-95%
Min. Shaping Character	English 1.0*1.0mm
Operating System	Windows 2000, Windows98, Windows XP, Vista
Graphic Format Supported	BMP, PLT, AI, DST, DXF
Software Supported	CorelDraw, Photoshop, AutoCAD,
Machine Dimension	268023001120mm / 1069144in
Packing Dimension	278024001300mm /1099451in
Net Weight	450 kg

Optional Spare Parts Up-down clump, Rotary System, Honeycomb table, , Laser Tube
Recommended Spare Parts Laser Tube and Lens

C.Applicable industries and materials:

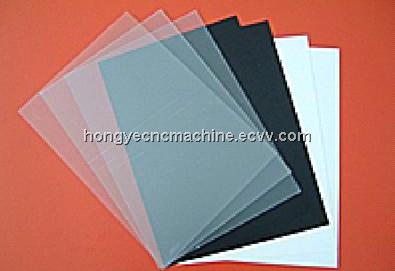

Non-metal materials such as wood, bamboo, organic glass, crystal, plastic, garments, paper, leather, rubber, ceramic and other Ganments sampling, large width tailoring, leather, shoemaking, decoration, Furniture, advertisement, packing and printing, molding and art craft industries etc.
