1x32 PLC Splitter Horizontal Fiber Optic Closure

Specifications

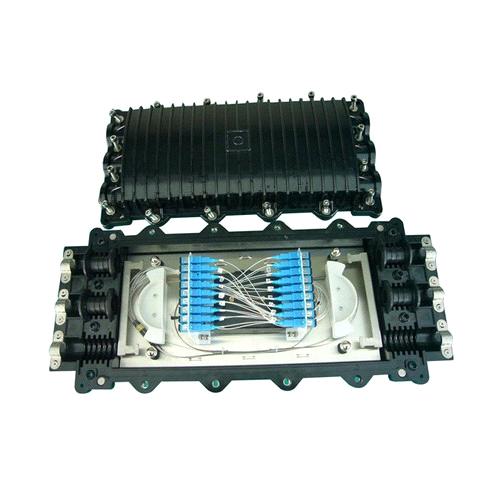

1x32 PLC Splitter Horizontal Fiber Optic Closure
We supply dome and horizontal fiber optic closure with competitive price. Splitter Fiber Distribution Closure is a compact and flexible closure that provides for connections between fiber optic cables and passive optical splitters in the inside Plant. The closure can be mounted to support aerial applications. It offers a robust, user-friendly, and cost effective solution for connecting feeder and distribution cables via optical splitters in FTTP networks and is distinctive for such applications as rural and brownfield deployments.

Features
1. Dimension: 580*255*140 mm
2. Factory price, span-life: 30 years
3. Support PLC splitter
4. Splitter types supported:1 X16, 1 X32, 2 X32, dual 1 X16, dual 1 X8, dual 1 X4, dual 1 X2 splitter
5. Splitters are easy to insert and remove without affecting splitter

Applications
1. FTTH application
2. Gigabit Ethernet, GPON, EPON
3. Telecommunication and fiber optic data transmission networks
4. Wide Area Networks (WAN), Local Area Network (LAN), CATV Network

Technical Parameters
Insulation resistance: ≥2X104MΩ
Atmospheric pressure:70-106KPa
Environmental temperature: -40 to +75°C
Components:
Seal tape, Insulation tape, Nylon tie, heat shrinkable sleeve, metal hook, seal fittings, internal hexagonal spanner.
Optic property:
The curvature radius of the spare fiber is over 37.5mm; no additional optic attenuation.
Seal Performance:
After the closures are sealed, then pressurized up to 100KPa & plusmn; 5KPa in water, immersed in 15 minutes, there are no air bubbles; Or observed for 24 hours, there is no change of air pressure.
Re-encapsulation Performance:
The closures are pressurized up to 100KPa & plusmn; 5KPa in water, immersed in 15 minutes, there are no air bubbles; Or observed for 24 hours, there is no change of air pressureafter three times of repeat encapsulation.
Voltage-resistance strength: Under the effect of 15kv/DC/1min, non-puncture, and no arc-over.
Mechanical Performance:
After all the following tests, the box and all the components inside don't change, check through gently or open it if necessary. When the closures are pressurized up to 60KPa, it can still meet the seal performance standard after the mechanical performance test.
Can withstand 1000N horizontal pull force;
Can withstand 3000N/10cm vertical pressure;
Can withstand 16Nm impact three times;
Can withstand 50Nm twist force 10 circling times 10 cycles of ±90° twisting angle.
