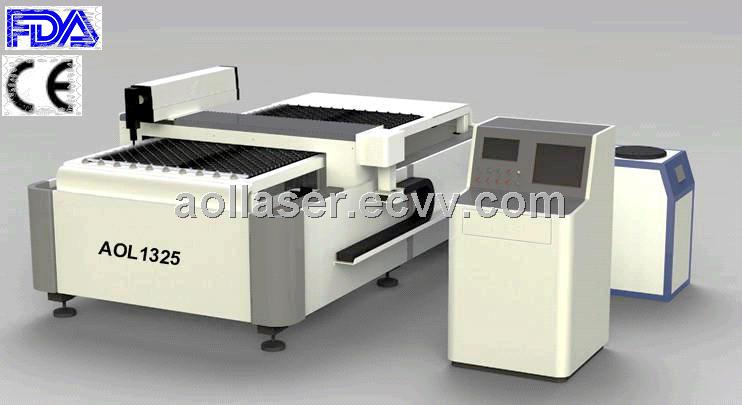

YAG600W Laser Metal Cutting Machine AOL-1325 in China
| FOB Price: | 40,300.00 - 40,800.00 USD/Set |
|---|---|
| Supply Ability: | 500 Set/Sets per Month |
| Shipping: | Dispatch the goods in 15 working days after your confirm. |
| Payment Terms: | L/C, T/T, D/P, Western Union |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Shandong in China |
| Packaging Details: | strong wood case for export |
Quick Details
- Condition: New
- Brand Name: Aol
- Model Number: 1325
- Voltage: AC380+-30V,50HZ
- Rated Power: 600W
- Weight: <=3000KG

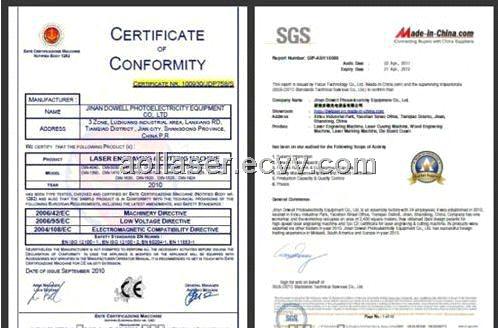

- Certification: CCC ISO CE
- Warranty: one year
- After-sales Service Provided: Engineers available to service machinery overseas
- Working area: 1300*2500mm
- Cutting thickness: <=6mm(stainless steel)
- Laser working media: ND
- Laser wavelength: 1064nm
- Pulse frequency: 1-450HZ
- Location speed: <=15m/min
- Min. cutting line width: 0.15mm
- Control system: Gugao controller+PC
- Machine dimension: 3800*2200*1600mm
Specifications
YAG600W laser Metal cutting machine AOL-1325
Features:1 .The machine is all welded as seamless steel structure. Steady structure and long life time2. High configuration, high cutting speed and precision.3. Auto ARC starting. Steady performance.4. Control system: DSP handset control, with USB interface5. Gantry Structure, X,Y Axis adopt Precise Ball Screw & Linear Guideway6. Advanced Plasmaspecial DSP Numerical Control System, restore the function enable the machine stop running automatically when power off, and then automatically resume to work when power on, and also can store the break point which for later operation to start, with the function of anticipating the working time. USB Interface can ensure process offline of computer without occupying any resource.7.The cutting accuracy reaches the excellent target for the cutting of Aluminum Sheet, Stainless Steel Plate, Titanium Plate, Copper Plate, Galvanized Sheet, Advertising with Luminous ThreeDimensional Characters and Metal Panel with Tshot. The cutting incision is small, tidy and neat, with no burr, so that avoid the second process.Applicable Industry:Processing shells of machinery and electronic products, advertising signs, crafts, iron garden, car manufacture, boat building, electrical accessories, board cutting. Applicable Scope:Application,Iron sheet, Aluminum plate, Titanium Plate, Stainless Steel Plate, Galvanized sheet, White Steel plate and other metal materials. Specification
Type
AOL-YAG-1325
1
Working area
1300×2500mm
2
Cutting thickness
≦6mm(stainless steel)
3
Laser working media
ND:YAG
4
Laser wavelength
1064nm
5
Pulse frequency
1-450HZ
6
Max. laser power
600W
7
Location speed
≦15m/min
8
Min. cutting line width
0.15mm
9
Control system
Gugao controller+PC
10
Laser Power Devices Power
≦20KW
11
Machine weight
≦3000KG
12
Machine dimension
3800×2200×1600mm
The reason for you to choose AOL laser cutting machine1.CE&ISO&FDA Certification2.24h perfect aftersales service and technical support3.our machine is special produce for global markets Key points:Please kindly tell us your engraving or cutting materials, and materials' size. Then we can quickly check and recommend to you the right machine with right working area. Looking for agents from all over the world!
