Jinan Hongye CNC Machine Co., Ltd.
China Manufacturer with main products: CNC Machine, CNC Routers, CNC Engraving Machine, Woodworking Engraving Machine, Advertising Engraving Machine, Metal Engraving Machine, Mable... |
14th
Home
>Products Catalog > laser cutting machine > Woodworking Laser Cutting &engraving Machine Ql-1610
Woodworking Laser Cutting &engraving Machine Ql-1610
| FOB Price: | 2,000.00 - 20,000.00 USD/Set |
|---|---|
| Supply Ability: | 450 Set/Sets per Month |
| Shipping: | Tianjin Shanghai Qingdao |
| Payment Terms: | T/T, Western Union |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Shandong in China |
| Packaging Details: | standard wooden case |
Quick Details
- Condition: New
- Laser Type: CO2
- Applicable Material: Acrylic,Crytal,Glass,Leather,MDF,Paper,plastic,Plexiglax,Plywood,Rubber
- Cutting Thickness: 15mm
- Cutting Area: 1600*1000mm
- Cutting Speed: 0-50000mm/min
- CNC or Not: Yes
- Cooling Mode: Water Cooling
- Control Software: DSP
- Graphic Format Supported: AI,DXF,BMP,DXP
- Brand Name: QL
- Model Number: QL-1610
- Certification: CE,SGS
- color: red/blue / customerized available
- option: lifting culomn
Specifications
woodworking laser cutting &engraving machine ql-1610 Machine feature details:
1. Integration of photographic, mechanic and electric technologies, giving more stable performance.
2. Great processing precision, maximum tolerance at 0.05mm.
3. Extremely high engraving speed, 1000/s.
4. The leading technology of uninterrupted and fast curve cutting: With standard model at 60/s and advanced model at 300/s.
5. Optimized function of selecting shortest path, greatly improving working efficiency.
6. Customer optional cooling water machine for laser tube, greatly prolonging the working life of the tube and bettering engraving effect.
7. Imported big-diameter galvanized silicon reflection mirror of 10.6um length wave and ZnSe focus lens provide slighter light wane and finer focus.
8. Seamlessly compatible to such image processing softwares as AutoCAD, CorelDRAW, and, Wenti, giving output of original photos.
9. Support hand any drawn curves of AutoCAD.
10. Support files of various formats such as BMP, PLT, DXF, GIF and AI for image processing.
11. Advanced color management, supporting the combination of any colors, engraving in freely defined sequence, partial or total output in one time.
12. Perfect grade and grayness engraving.Techincal Parameter
2. Great processing precision, maximum tolerance at 0.05mm.
3. Extremely high engraving speed, 1000/s.
4. The leading technology of uninterrupted and fast curve cutting: With standard model at 60/s and advanced model at 300/s.
5. Optimized function of selecting shortest path, greatly improving working efficiency.
6. Customer optional cooling water machine for laser tube, greatly prolonging the working life of the tube and bettering engraving effect.
7. Imported big-diameter galvanized silicon reflection mirror of 10.6um length wave and ZnSe focus lens provide slighter light wane and finer focus.
8. Seamlessly compatible to such image processing softwares as AutoCAD, CorelDRAW, and, Wenti, giving output of original photos.
9. Support hand any drawn curves of AutoCAD.
10. Support files of various formats such as BMP, PLT, DXF, GIF and AI for image processing.
11. Advanced color management, supporting the combination of any colors, engraving in freely defined sequence, partial or total output in one time.
12. Perfect grade and grayness engraving.Techincal Parameter
| Machine Model | ql-1610 |
| Working Size | 1600*1000mm |
| Laser Power | 80W/100W/150W/180W |

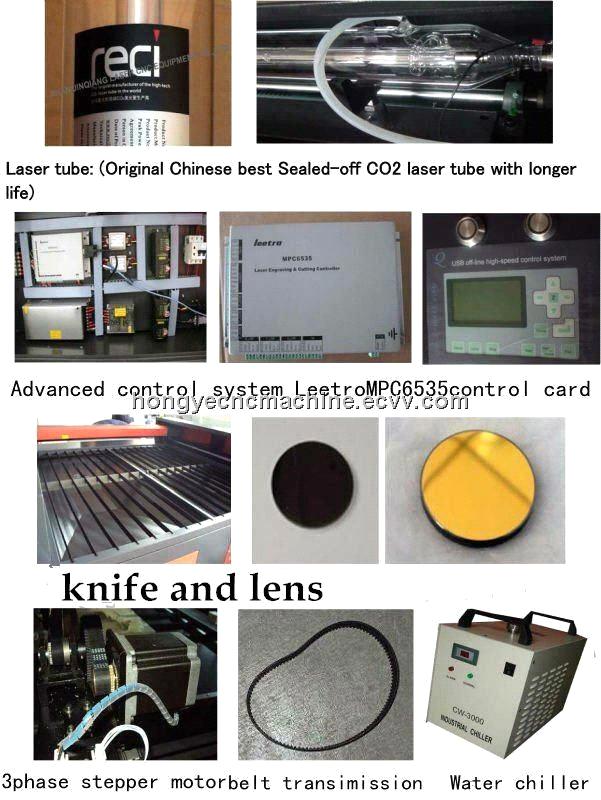

| Laser Type | CO2 sealed high quality, water-cooling |

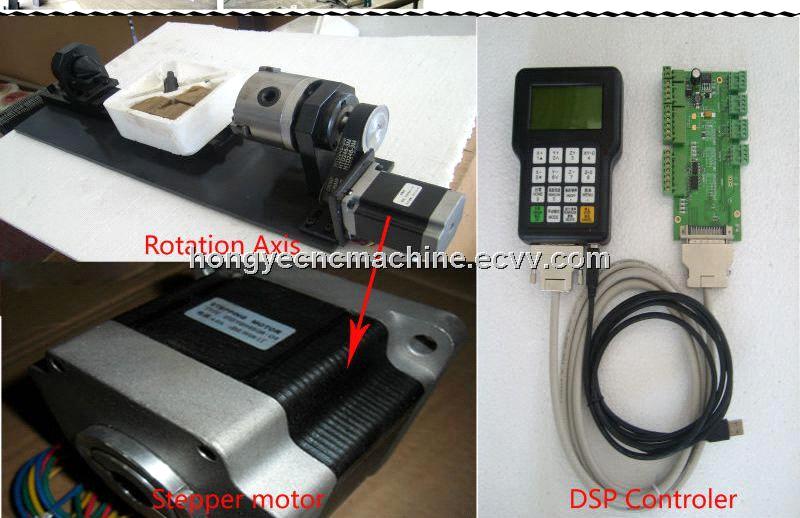

| Driving System | Stepper MotorOptional: Servo Motor |
| Cutting Speed | 0-40000mm/min / 0-1575in/min |
| Engraving Speed | 0-70000mm/min /0-2756in/min |
| Resetting Position Accuracy | ≤±0.01 |
| Power Supply | 220V/50Hz, 110V/60Hz, |
| Operating Temperature | 0-45°C |
| Operating Humidity | 5-95% |
| Min. Shaping Character | English 1.0*1.0mm |
| Operating System | Windows 2000, Windows98, Windows XP, Vista |
| Graphic Format Supported | BMP, PLT, AI, DST, DXF |
| Software Supported | CorelDraw, Photoshop, AutoCAD |
Recommended Spare Parts Laser Tube and Lens Applicable industries:decoration, Furniture, advertisement, packing and printing, molding and art craft industries etc Applicable materials:
Non-metal materials such as wood, bamboo, organic glass, crystal, plastic, garments, paper, leather, rubber, ceramic and other Ganments sampling, large width tailoring, leather, shoemaking,
The warranty:
1).CE and SGS certificate,the machines are produced according to standard.
2).One years quality guarantee for whole machine except of laser tube and lens
