Quick Details
- Brand Name: Cummins
- Model Number: 6CTAA8.3-C195,6CTAA8.3-C215,6CTAA8.3-C220
- Condition: New
- Moving Type: Wheel Excavator
Specifications

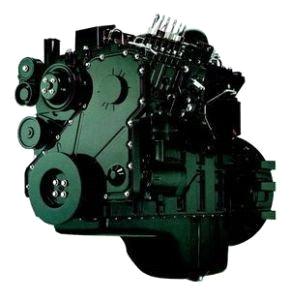

Dongfeng Cummins Construction Machinery Engine 6CT Series
1. Cummins Construction Machinery Engine
2. Cummins Construction engine
3.6CT Series Construction Engine
4. Cummins Diesel engine
Application: Construction Machinery; Scraper Machinery; Excavating Machinery; Hoisting Machinery; Air Compressor; Rotary Transfer Machines...
Specification
High fuel efficiency. Fewer fuel consumption at leading level than other competitive products.
The turbocharger with wastegated design optimizes operation acrosss the torque ourve resulting in excelentlow-end torque.
Compacted yet durable and dependable engine. B series engine contaions up to 40% fewer parts than competitive engines in its class. This results in a better power-to-weight ration. A less chance of failure and lower repair cost.
Advanced design and manufacturing. Make the engine delivers superior performance and lower cost 6.6KW starters and intake air heater.
Excellent performance and advantage. Adopt adcanced design to achieve higher horsepower and lower weight. Horsepower per liter reached 22.4kw/L.
| Engine 6CTAA8.3 | ||||
| Cylinders | 6 | |||
| Type: | Four stroke, 6 cylinder inline | |||
| Displacement | 8.3L | |||
| Bore | 114mm | |||
| Stroke | 135mm | |||
| Cylinders | 6 | |||
| Technical Specification | ||||
| Aspiration | Turbocharged | |||
| & Aftercooled | ||||
| Pump Type | PB | |||
| Governor | RSV | |||
| Weight Dry | 637kg | |||
| Instant inertia of rotational part (Without flywheel) | 0.37kg.m2 | |||
| Center Of gravity Distance From Front End Of Cylinder Body | 427mm | |||
| Center Of Gravity Distance Above Crank Centre Line | 163mm | |||
| Performance Data | ||||
| Rated Power | 108kW/1900r/min | |||
| Peak Torque | 674N.m/1400r/min | |||
| Engine Model | Advertised Power/Speed(kw/r/min) | Peak Torque/Speed(N.m/r/min) | Aspiration | Legislation |
| 6CTA8.3-C145 | 108/1900 | 674/1400 | Turbo charged | Euro II |
| 6CTA8.3-C175 | 128/1850 | 820/1100 | Turbo charged | Euro II |
| 6CTA8.3-C180 | 134/2000 | 837/1400 | Turbo charged | Euro II |
| 6CTA8.3-C195 | 145/1900 | 820/1500 | Turbo charged | Euro II |
| 6CTA8.3-C215 | 160/2200 | 908/1500 | Turbo charged | Euro II |
| 6CTA8.3-C215H | 160/2200 | 908/1500 | Turbo charged | Euro II |
| 6CTA8.3-C230 | 172/2200 | 1000/1500 | Turbo charged | Euro II |
| 6CTA8.3-C240 | 179/2200 | 1028/1500 | Turbo charged | Euro II |
| 6CTA8.3-C260 | 194/2200 | 1135/1500 | Turbo charged | Euro II |
| 6CTAA8.3-C195 | 146/1950 | 960/1300 | Turbo charged | Euro II |
| 6CTAA8.3-C215 | 160/2200 | 980/1500 | Turbo charged | Euro II |
| 6CTAA8.3-C220 | 164/1950 | 1100/1300 | Turbo charged | Euro II |
| 6CTAA8.3-C240 | 179/2200 | 1040/1400 | Turbo charged | Euro II |
| 6CTAA8.3-260 | 194/2200 | |||
