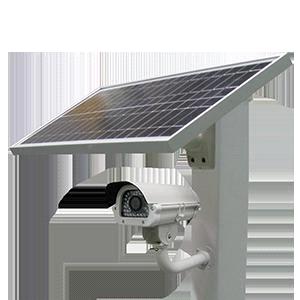

GPRS wireless camera with 3Megapixel,auto sleep,solar

Specifications

It is a GSM/GPRS enabled IR camera that can be located anywhere in the world with GSM coverage to deliver full colour JPEG images or video clips from remote locations by FTP to server. The video and single images can be viewed on a PC ,and can be recorded on a local  SD card and later downloaded or reviewed via built-in Web server. There exists a Central Management System to manage up to three thousand front GSM IP cameras and ten customer consoles to access on line the same time. There are several ways to trigger the camera to take pictures: On demand, motion detection and schedule. It has higher stability and scalable architecture as it adopts the double-CPU system: One for Image process as well as system controlling and the other for GSM/GPRS  module.
Product Feature
1. There exists a Central Management System to manage up to three thousand front IP cameras and ten customer consoles to access on line the same time.
2. Built-in Web server for monitoring via standard browser
3. Video clip (desirable time duration) and/or single snapshot images
4. Up to 3 Megapixel Image resolution.
5. Store and forward function. When the GSM/GPRS network temporary is not available, the pictures will be stored in the camera and then be forwarded to the center server when the GSM network is available.
6. GSM/GPRS Mobile Network, build in GSM/GPRS modem (SIM slot) with external antenna,quad band 850/900/1800/1900 MHz GPRS/EDGE network.
7. Two-way speaking. The center server can initialize the voice speaking.
8. Several modes power supplier: Main power supply and backup battery supply. Once the failure of the main power, the backup battery will act on. Solar panel is optional
9. Multi communction ways(SMS, push Email, FTP, smart and scalable integrated PC software)
10. Various image formats (2560x1920, 2048x1536, 1600x1200, 1280x960, 640x480, 320x240 is optional)
11. Picture trigged by several ways:
A. On schedule time
B. On demand from user
C. Signal from one of the sensors and etc.
12. Up to 32 GB SD/SDHC card local storage
13. Night vision: Infrared LEDs, effective range up to 20Meters, enables the camera to capture images in dark environment.
14. Watchdog built-in assure its stabilityProduct Specification/Models
Camera
Image Sensor  1/2.5" Progressive Scan CMOS
Min. Illumination  Color: 0.6Lux  F1.2  B / W: 0.08Lux   F1.2
Electronic Shutter  1/25s~1/100,000s
Lens Mount  CSMedia Compression Standard
Picture Compression  JPEG
Video Compression  H.264/ MPEG-4
Audio Compression  OggVorbis
Bit rate  32 Kbps~16MbpsImage
Max. Image Resolution  2560x1920
Frame Rate  7.5fps(2560x1920)
Video Parameter  Saturation, Brightness, Contrast adjustable through client software or web browserNetwork Protocol
Protocols  TCP/IP, HTTP, FTP, DHCP, DNS, DDNS, RTP/RTSP, PPPoE, SMTP, NTPGSM/GPRS/3G Network
Frequency bands  GSM/GPRS: 1900/1800/900/850MHz
Data rate  GPRS---UL: 53.6 kbps/DL: 53.6 kbps
CSD--- 9.6kbpsInterface
Intelligent Alarm  Motion Detection, Network Disconnect, Storage exception
Alarm Input  1 channel
Alarm Output  1 channel
Local Storage  Support SD/SDHC
Basics  Reset button, Anti-flicker, Heartbeat, Password ProtectionGeneral
Operating Condition     -10degree~60degree  Humidity 90% or less
Power Supply     DC12V(Plus or minus 10%)
Power Consumption    4W MAXOptional
Ethernet Interface  1 RJ45 10M/100M self-adaptive. PoE is optional.
Other powering  Solar and Battery powering is optional
GPS  GPS is optional
Application
1. Geology and forestry monitoring rockslides, floods, fires, wildlife and vandalism1. Geology and forestry monitoring rockslides, floods, fires, wildlife and vandalism
2. Transformer station surveillance
3. Construction site monitoring working progress and valuable equipment
4. Ferryboats, dredges and other marine acquiring the pictures you require from the vessel
5. Oil and gas pipelines surveillance
6. Power station surveillance
7. GSM BS Surveillance
8. Home surveillance
9. Traffic control
10.hydropower station surveillance
11.Insects observation
12.Agriculture observation
13.Street lamp monitoring
14.Meteorological station surveillance
