JINAN SINOTRUK VEHICLE CO.,LIMITED
China Manufacturer with main products: Howo 6x4 Dump Truck, Howo 6x4 Tipper Truck, Howo 6x4 Tractor Truck, XCMG Wheel Loader Spare Parts, XCMG Spare Parts, XCMG Motor Grader Spare... |

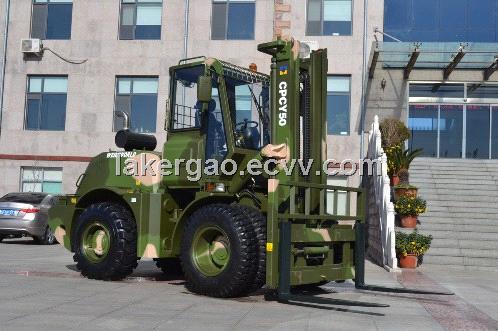

5ton CPCY50 Off Road Forklift
| Supply Ability: | 100 Unit/Units per Month |
|---|---|
| Shipping: | 3days |
| Payment Terms: | L/C, T/T |
| Export Markets: | South America, Africa, Mid East |
|---|---|
| Place of Origin: | Shandong in China |
| Packaging Details: | nude package |
Quick Details
- Condition: New
- Brand Name: ST
- Model Number: CPCY50
- Type: Manual Pallet Truck
- Power Souce: Diesel Engine
- Rated Loading Capacity: 5000KG
- Max. Lifting Height: 4305mm
- Overall Dimensions: 5700*2185*4305mm
- Certification: ISO9001
- After-sales Service Provided: Overseas service center available
Specifications
5ton Cpcy50 Off Road ForkliftSpecifications
Strengthen front axle
Electronic control gear box(With ZF Converter)
Cummins Turbo Engine
Adjustable dashboard
| No | Item | Unit | Standard model | Optional model | |
| 1 | rated load | Kg | 5000 | 5000 | |
| 2 | Length | No fork | mm | 4420 | 4420 |
| with fork | mm | 5700 | 5700 | ||
| 3 | width | mm | 2185 | 2185 | |
| 4 | height | height of the mast | mm | 3100 | 3100 |
| Height of the cab | mm | 3125 | 3125 | ||
| full height when max lifting | mm | 4305 | 5805 | ||
| 5 | Wheelbase | mm | 2185 | 2185 | |
| 6 | Front overhang distance | mm | 880 | 880 | |
| 7 | front wheel tread | mm | 1575 | 1575 | |
| 8 | Rear wheel tread | mm | 1545 | 1545 | |
| 9 | ground clearance | mm | 285 | 285 | |
| 10 | Max lifting height | mm | 3000 | 4500 | |
| 11 | Free lifting height | mm | ----- | ----- | |
| 12 | Fully free lifting height | mm | ----- | ----- | |
| 13 | forward / rear tilting angle of mast | (.) | 6/12 | 6/12 | |
| 14 | standard Dead weight (no-load) | kg | 9500 | ||
| 15 | full-load Max lifting speed | mm/s | 300 | 300 | |
| 16 | Min turning radius | mm | 5920 | 5920 | |
| 17 | Max speed | Km/h | 20.0 | 20.0 | |
| 18 | Max climbing degree (full load) | % | |||
| 19 | Max Drawbar pull(full load ) | kN | 30.0 | 30.0 | |
| 20 | Load center distance | mm | 500 | 500 | |
| 21 | engine model | ------ | Cummins 4BTA3.9-C100 | Cummins 4BTA3.9-C100 | |
Standard configuration Roll over protection structureStrengthen front axleElectronic control gear box(With ZF Converter)Cummins Turbo EngineFront axle with double tireAdjustable dashboardZF gear positioner ,double tyres
Excellent workmanshipGlamour luxurious seatOPTIONAL DEVICESLuxurious cabin Air-conditioning 3 Stage4.5M Mast Fork Positioner Side shifter The forklift is more easy to operate ,disassemble and maintenance
