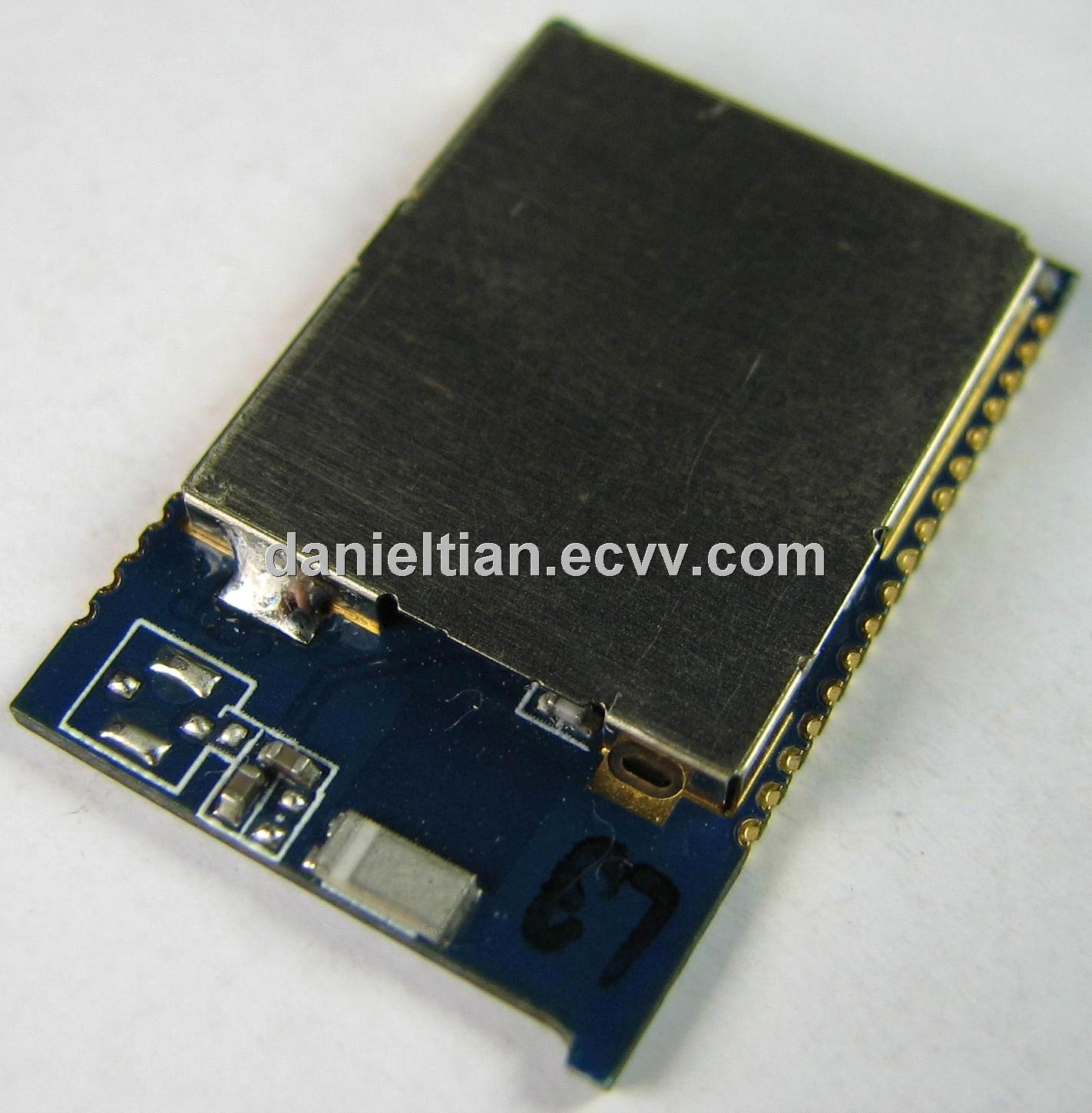

CSR BC5-MM class 2 module
| FOB Price: | 5.80 - 6.20 USD/Piece |
|---|---|
| Supply Ability: | 50,000,000 Piece/Pieces per Month |
| Shipping: | 30days,EXW |
| Payment Terms: | T/T, Other, Credit Card |
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Guangdong in China |
| Packaging Details: | 1000PCS/Carton |
Quick Details
- Brand Name: Rayson
- Model Number: BTM-760
- CSR BC5-MM class 2 module with Antenna: Bluecore5-MM class 2 module with Antenna
- Bluetooth class 2 Multi-media APTX module with Antenna: Bluetooth class 2 Multi-media A2DP module with Antenna
- Bluetooth Module: Module
Specifications
Product Description
This is a Bluetooth Class2 (max 4dBm) module with on board antenna. The on board antenna eliminate the need of matching circuit on the main board and therefore save the costs of production test. It is based on CSR Bluecore 5 (BC5)-MM chip set. It can support Bluetooth V2.1+EDR system. The Embedded Kalimba DSP Co-Processor supports the advanced features such as echo cancellation, noise reduction and stereo audio (A2DP profile) communications.Thanks to the 16M bits program flash memory, the module can be integrated with fruit of Bluetooth profiles stack to meet various kinds of application. Further more, advanced stereo audio codec such as APTX and AAC are allowable. That is, to provide high quality audio with low latency time.The integrated stereo DAC provide high quality audio performance with SNR up to 95dB.Support digital audio bus such as PCM, I2S or SPDIF. And the on chip Switched-Mode Regulator and Li-ion battery charger eliminate the needs of external components and costs. The host Interfaces include USB and UART, that are programmable for data communication, module control or firmware upgrade.
The powerful and flexible design allows the module to support HSP/HFP/A2DP/AVRCP SPP, PBAP,…all kinds of Bluetooth profiles.
Applications
ú High quality wireless stereo headset.
ú High quality wireless stereo speaker.
ú High quality wireless stereo transmitter.
ú High quality wireless microphone
ú Wireless USB audio class device.
ú Dual paring mono headsets with noise reduction capability.
ú Hands-free car kits.
ú VOIP or land line phones wireless headsets.
ú Bluetooth Audio Gateway
Product Benefits
ú Powerful and flexible that fits various kinds of the Bluetooth applications.
ú Compact Bluetooth stack firmware, easy to use.
ú On board antenna that eliminate the need of matching circuits.
ú 16M bits program flash memory that allows more integrated functions.
ú Advanced stereo audio codec
ú Embedded Li-ion battery charger.
Product Specification
|
Dimension |
16x24x2.6 mm |
|
Bluetooth Standard |
V2.1+EDR |
|
RF Power |
-6dBm to +4dBm |
|
Receiving Sensitivity |
-82dBm |
|
Program Flash Memory |
16M bits |
|
Audio Interfaces |
Analog, PCM, I2S and SPDIF |
|
Host Interface |
USB and UART |
|
Supply Voltage |
3.3V – 4.2V |
