XY Series Core Drilling Rig

Payment Terms:	T/T

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe

Quick Details

Condition: New
Type: Core Drilling Rig
Brand Name: Tianyuan
Dimension(L*W*H): 3190*1495*2140
Weight: 3500kgs
Warranty: 1 year

Specifications

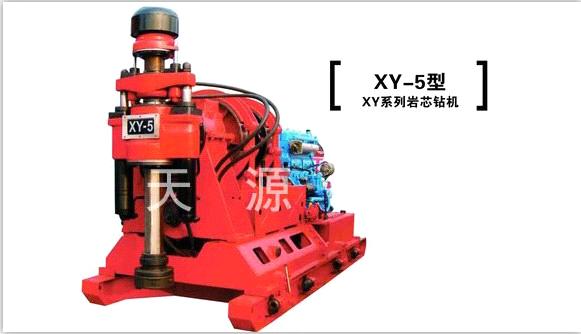

XY-5 Core Drilling Rig

Usage

This model of drilling rig is is a deep hole drilling equipment used for exploration in area of geology, hydrological well, coal filed, oil ,natural gas and so on. It concentrates the advantage of spindle type rigs and can be used for drilling in small caliber, big caliber, vertical hole and inclined hole.

Structural Features

1High rotating speed of spindle and adjustable in wide range.

2.Equipped with water brake to ensure descending drilling tools steadily and safely

3.Oil-immersed clutch equipped with brake make startup smooth

4.There is a special slide valve in hydraulic operating system available for matching with pipe breakout machine

5.Long distances for main machine to move forward and backward. It is convenient to operate around the opening hole.

6. Large diameter of spindle can meet various of drilling processes requirement.

7. The whole machine is designed well and easy to disassemble and transport.

Main Technical Parameters

Drilling depth (m)		1000～1500
Bore dia of spindle (mm)		Φ80
Rotating speed of spindle (r/min)		Forward: 80 166 261 294 355 577 906 1232 Reverse: 65 225
Pulling capacity (kN)		135
Max. hoisting capacity of winch(single rope) (kN)		40
Feeding force (kN)		90
Feeding stroke (mm)		500
Hoisting speed of winch (m/s)		0.89-6.08
Movable cylinder stroke (mm)		450
Power	Diesel Engine (kw)	4135 G 80
	Electric Motor (ps)	Y250M-4 55
Weight (no include power) (kg)		3500
Overall dimensions (L×W×H) (mm)		3190×1495×2140
