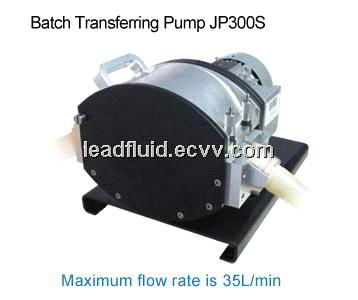

Batch Transferring Pump JP300S (longer tube life,flow 34L/min)

FOB Price:	2,600.00 - 3,900.00 USD/Piece
Supply Ability:	1,000 Piece/Pieces per Year
Shipping:	air Freight
Payment Terms:	T/T, Western Union

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Hebei in China
Packaging Details:	carton and pearl wood

Quick Details

Brand Name: lead fluid
Model Number: JP300S

Specifications

Batch Transferring Pump is suitable for the tube wall thickness of 4.8mm,6.3mm. Maximum flow rate is 35L/min, the largest pressure is 0.3Mpa. It has reasonable tight composition, easy to load the tube. The roller adopts planetary gear transmission, safe and reliable, at the same time it can prolong the tubing life.
Function and features
   Flow range is wide, can reach 2m3/hour, suitable for batch transferring.
   The pressure of transmission is high, suitable for massive viscosity and high-lift  materials.
   It adopts planetary gear design, safe and reliable, with high-power.
roller driving force rotation, rolling friction with tube, prolong tubing life.
   Press tube gap is adjustable.
   AC motor with frequency control of motor speed control, it can be achieved networking     operation with PLC, IPC and computer.
Specification:
1, Flow rates: Maximum 35L/min, can reach 2m3/hour
2, Suitable tubing: 88# 92#; 86# 90#
3, Shall material: aluminium alloy
4 Roller: 304 Stainless steel
5, Speed range: 30-300rpm
6, Gap adjustment: adjustable
7, Operating condition: temperature 0 ~ 60℃
8, Chemical compatibility: resist acid-base,organic solvent.
9, Power supply: AC 220V ±20%/400W
