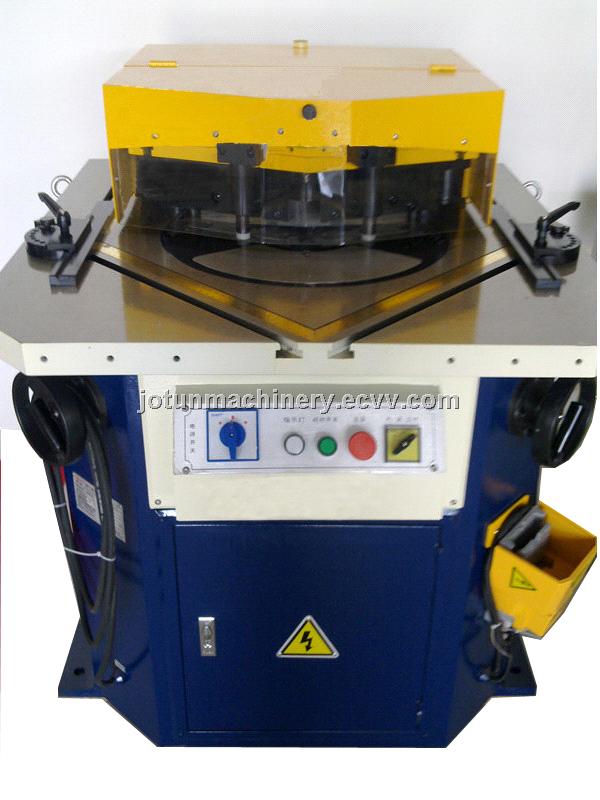

Double head notching machine/hydraulic corner notching
| Shipping: | 15days |
|---|---|
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Packaging Details: | wooden case and bottom steel |
Quick Details
- Condition: New
- Brand Name: Jotun
Specifications
HYDRAULIC NOTCHING MACHINE:
|
TECHNICAL FEATURES
|
|||||
|
No
|
Model
|
QF28Y-4*200
|
QF28Y-6*200
|
QX28Y-4*200
|
QX28Y-6*200
|
|
1
|
Cutting thickness(mm) |
4
|
6
|
4
|
6
|
|
2
|
Cutting length(mm)
|
200
|
200
|
200
|
200
|
|
3
|
Cutting angle range |
90°
|
90°
|
45°～135°
|
60°～135°
|
|
4
|
Power(Kw)
|
3
|
4
|
3
|
5.5
|
|
5
|
Dimension(mm)
|
1000×1000×1200
|
1000×1000×1200
|
1500×1000×1400
|
1500×1000×1400
|
|
6
|
Net weight(Kg)
|
550
|
580
|
1450
|
1470
|
Fixed Angle Notching Machine:
Fixed angle blades positioned at 90° Cuts in a wide variety of materials and thickness' (from 1mm to 6mm).
Absolute rigidity is provided by our monoblock steel casting (65kg/mm2) incorporating a 3-guide system holder assures unmatched cutting precision and blade life.
You may select between single step mode or step by step mode.
The standard stroke adjustment which limits the stroke to a preset position. You can therefore produce defined shears, not necessarily ending at the edge of the material and you can increase your stroke rate with the shortest possible stroke for each task.
Variable Angle Notching Machine:
Variable angle blades adjust between 30° And 140°. For variable angle notching with multi attachment the angle can be changed non symmetrical individually for each side. Cuts in a wide variety of materials and thickness (from 1mm to 6mm).
Absolute rigidity is provided by our monoblock steel casting (65kg/mm2) incorporating a 3-guide system holder assures unmatched cutting precision and blade life.
You may select between single step mode or step by step mode.
The standard stroke adjustment which limits the stroke to a preset position. You can therefore produce defined shears, not necessarily ending at the edge of the material and you can increase your stroke rate with the shortest possible stroke for each task.
