Underwater and Borehole CCTV Camera

FOB Price:	1.00 USD/Set
Supply Ability:	300 Set/Sets per Month
Shipping:	7days
Payment Terms:	L/C, T/T, Western Union

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Chongqing in China
Packaging Details:	wooden box

Quick Details

Brand Name: Gold
Type: Digital Camera
Sensor: CCD

Specifications

1) Applications:

1. Well drilling, water well inspection, 2. oil field, 3. coal field,4. engineering geology, 5.dam, reservoir, oceaneering

2) Specification:

No.	Product Configurations	Dimension	Specification

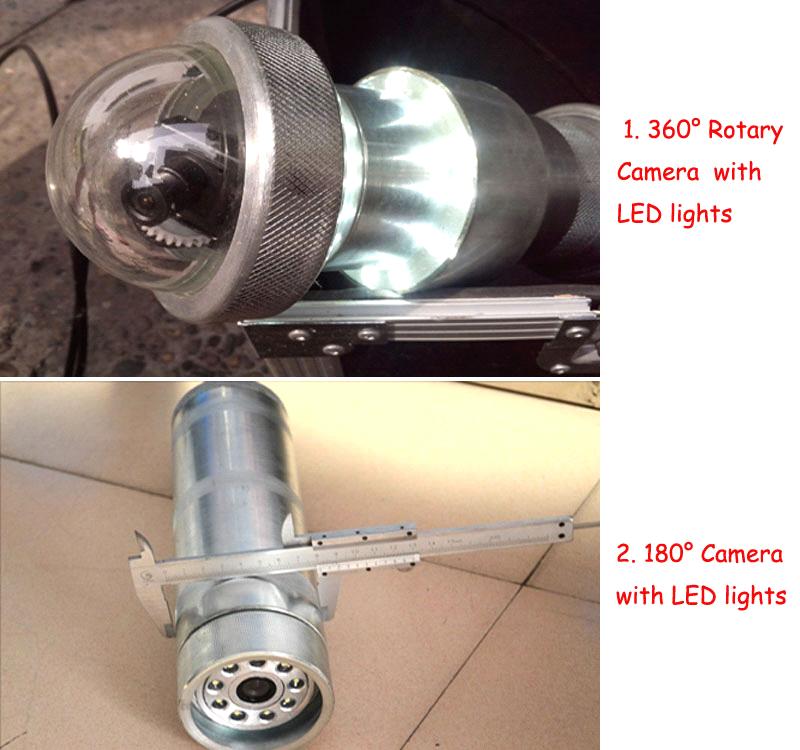

1	Probe	Dia.: 80mm Length:470mm	(1) Front lens are imported resins, (2) Not easy damaged, (3) Pressure is 16-30Mpa (can be under 3000m deep water) (4) Light: 7-11 LED Lights
2	Camera		(1) Japan SONY inductor 1/3'' CCD, (2) Image definition is HD 750 TVL (3 Watertight (4) Camera Angle: 180 degree
3	Professional logging cable	Length: 0-2500m(optional)	(1) With steel wire, (2) Tension is 150kg, (3) Destroy tension is 260kg
4	Main Control Host		(1) 220V/380V/12V optional. (2) LCD dispaly can be 8/15inches. (3) Aircraft grade aluminum alloay material
5	Downhole Pulley		Can change the booth size according to the well mouth size
6	Logging Winch		Hand/Electrical winch
7	Lithography System		(1) SONY disc-carving machine,(optional) (2) Discs and U disk can be used
