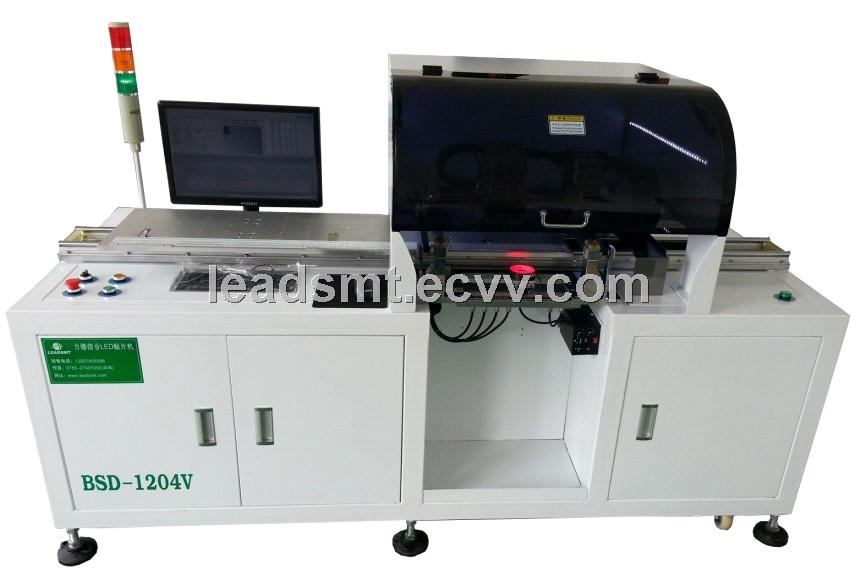

smd equipment

Supply Ability:	100 Set/Sets per Month
Payment Terms:	L/C, T/T

Inquiry Now

Related products from verified members

Side of Pole Mounts (SWMS0.85-80(8-3))

Price:

Min. Order:
CNC Turning Parts

Price:

Min. Order:
parts machining

Price:

Min. Order:1 Set
Ejector Pin DIN (9861,1530) 1530a

Price:12.00 USD/Bag

Min. Order:10 Bags

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Mid East, Eastern Asia, Western Europe
Place of Origin:	Guangdong in China
Packaging Details:	plywooden case and film

Specifications

1. Panasonic Servo Motor, imported railway to ensure its stable and accuracy.
2.X.Y axis adopts Panasonic Servo Drive, cooperated with imported liner railway ensures its accuracy and speed.
3. Four pieces of high-speed heads work at the same time, greatly improve the equipment performance to price ratio. Nozzle adopts imported railway with high precision and durable lifetime.
4.Easy operational program, much more convenient, automatic vision makes position fixing more accurate and convenient.
5.Multi Feeder optional, can meet different kinds of LED mounting.
6.Powerful software adopts numbers and images to display the program coordinate, easy and more convenient.
7. Software has powerful functions, programming coordinates using numerical and graphical display, coordinates correction and convenient change, graphical display patch schedule production process and components and re-put materials is convenient.

8. Platform: Y axis, X axis can be moved manually, speed adjustable, can achieve arbitrary point manual arrived, convenient programming.
9. Imported vacuum detection system can check the suction accurately to prevent material leakage and throwing effectively.

10. Internal negative pressure system: low noise, long service life and vacuum pressure constant.

11.Standard setting:1 PC,8 mounting heads,16 nozzles.

12.Optinal :8mm,12mm,16,,and 24mm automatic feeder, different nozzles, industrial pump, air compressor .

[Technical Parameter]:

Model	BSD-1204T
Mount head	4 pcs
Max circuit board size	1200*300mm
Max moving range	X axis1200mm, Y axis410mm
Max moving range of Z axis	20mm
Typical Mounting speed	13000 cph-15000cph
Max mount speed	18000cph
Mount accuracy	+/-0.05mm
Position method	Visual position
Component available	0603and above SMD component and LED
Programme method	Automatic data import/ video study/ keyboard input
Belt feeder	8mm,12mm,16mmand 24mm(OPT)
Operation system	WINDOWS XP
Compressed air	Vacuum air in machine
Power supply	220V,50Hz, 1Kw
Weight	500kg
Dimension	20008001250mm
