Zhangjiagang Lvhuan Machinery Co. Ltd.
China Manufacturer with main products: Injection-Blow Molding Machine, Injection-Blow mould, Plastic Extruder, Plastic Sheet Extruding |

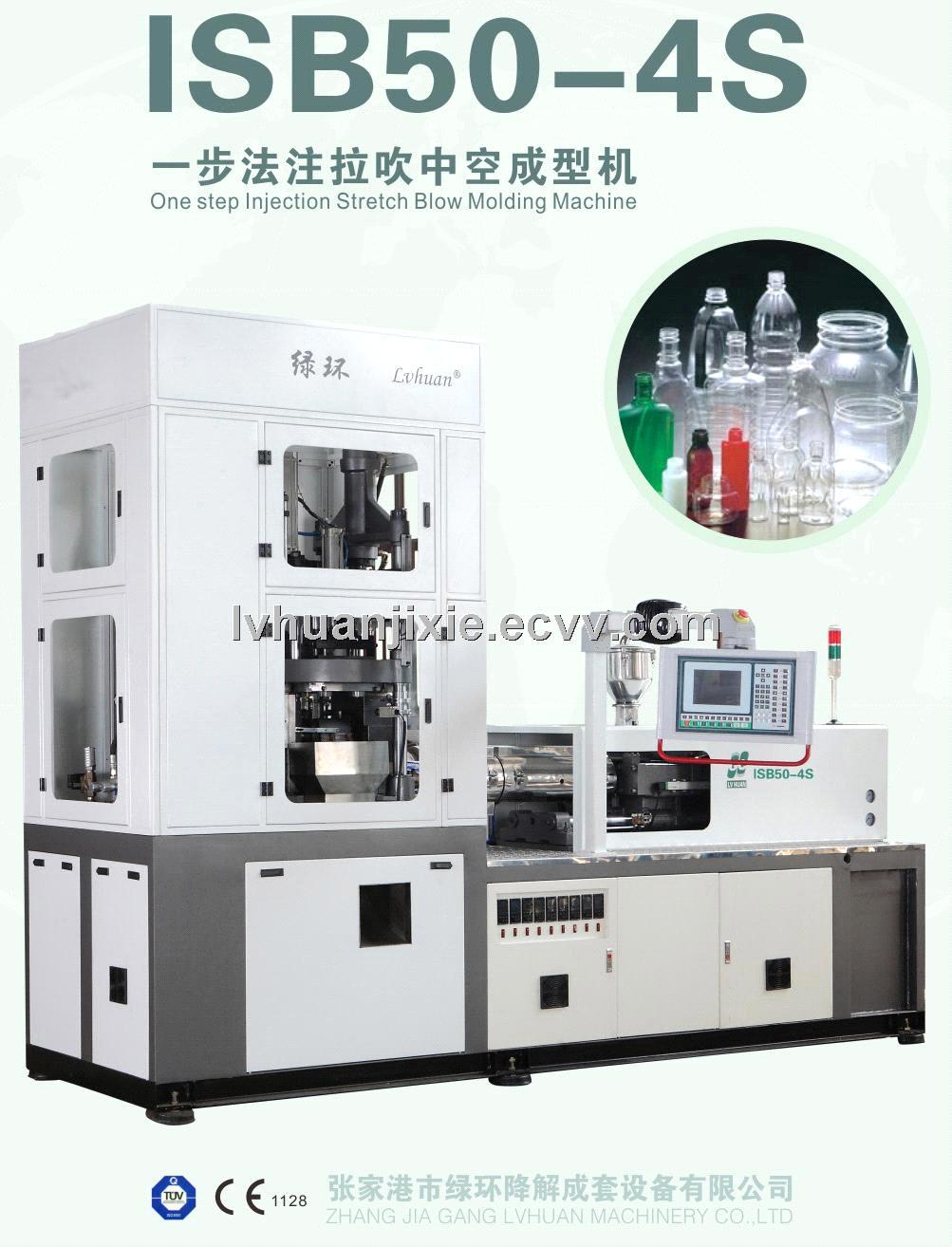

ISB 50 Injection Stretch Blow Molding Machine
| FOB Price: | 110,000.00 - 120,000.00 USD/Set |
|---|---|
| Payment Terms: | L/C, T/T |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|
Quick Details
- Condition: New
- Application: Bottle
- Plastic Processed: PET
- Blow Moulding Type: Stretch Blow Moulding
- Automatic: Yes
- Brand Name: lvhuan
- Model Number: 100
- Voltage: 380V
- Power(W): 35000
Specifications
ISB 50 Injection Stretch Blow Molding
Machine
The machines is full automatic one-step molding machines for thermoplastic materials such as PET, PC, PP, PS and PA. They are widely used for the manufacture of packaging bottles in such industries as pharmaceutical medicines, health care products, cosmetics, foods and condiments, etc. These machines have multi-cavities in one mold which can produce automatically and continuously. They adopt four working stations index head, hot runner system and multi-stage injection molding system. Injection, temperature adjustment, stretch blow molding and product out-feed stations work simultaneously to ensure high efficiency and energy saving operation of the machines. They are preferred equipment for modernized productions.
- Four-station index head fitted with high-speed servo driving system reduces the dry cycle significantly.
- The whole process of injection could set five stages of pressure and speed. It ensures the stable product quality.
- Equipment parameters and process are set by HMI for living supervising of the equipment operation and its matching up with the panel switches and buttons, enables convenient, direct and highly efficient operation of the whole unit.
- Mold is made of high class stainless steel. It is processed by special high precision numerical control equipment and fully guarantees the forming quality of bottle product.
Technical Datas of Injection Stretch Blow Molding Machines
|
Item |
ISB50-4S |
|
|
Screw Diameter |
mm |
φ40 |
|
Max. Injection Capacity |
cm3 |
180 |
|
Injection Clamping Force |
KN |
60 |
|
Blow Clamping Force |
KN |
60 |
|
Heater Power |
KW |
14 |
|
Motor Power |
KW |
18.5 |
|
Blow Air Pressure |
Mpa |
2.5 |
|
Working Air Pressure |
Mpa |
1.0 |
|
Cooling Water Pressure |
Mpa |
0.3-0.5 |
|
Overall Dimension (L×B×H) |
mm |
3750×1150×2800 |
|
Weight Approx |
kg |
4000 |
|
The manufacturer keeps the right to update technical parameters due to technolgoy innovation without advance notices to customers. |
||
Cavity Number (For Reference)
|
Item |
ISB50-4S |
|||||||
|
Cavities Number |
1 |
2 |
3 |
4 |
5 |
6 |
||
|
Max.Bottle Volume |
L |
2.5 |
1.5 |
0.6 |
0.25 |
0.1 |
0.03 |
|
|
Max.Inlet Outer Diameter |
E |
mm |
60 |
40 |
30 |
25 |
23 |
15 |
|
Max.Bottle Outer Diameter |
BD |
mm |
115 |
90 |
68 |
56 |
45 |
35 |
|
Max.Bottle Heigh |
HB |
mm |
310 |
300 |
300 |
250 |
250 |
200 |
|
Max.Bottle Weight |
g |
96 |
48 |
32 |
24 |
16 |
16 |
|
