butterfly valve

Supply Ability:	10,000 Set/Sets per Year
Shipping:	15 days
Payment Terms:	L/C, T/T

Inquiry Now

Related products from verified members

Product Details

Export Markets:	Eastern Europe, Southeast Asia, Eastern Asia, Western Europe
Place of Origin:	Hebei in China
Packaging Details:	Plywood Wooden Cases

Quick Details

Standard or Nonstandard: Standard
Pressure: High Pressure
Power: Hydraulic
Material: Casting
Temperature of Media: High Temperature
Media: Water
Port Size: 200
Model Number: DN25~DN2000
Brand Name: WAHT
casting: wafer

Specifications

Basic Info.

Model NO.:D71X-10/16

Work Pressure:Low Pressure (Pn<1.6mpa)

Material of Seal Surface:Soft Sealed

Connection Form:Wafer

Structure:Centre Sealing

Seal Form:Force Sealed

Working Temperature:Normal Temperature (-40°C

Application:Industrial Usage, Water Industrial Usage, Household Usage

Actuator:Handle or Gearbox

Standards:DIN,API 609, Bs En 593, Mss Sp-67, Bs5155,GOST

Suitable Media:Petroleum, Chemical Industry, Water, Oil, Gas etc.

Export Markets:South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe

Additional Info.

Trademark:WHAT

Packing:Plywood Wooden Cases

Standard:DN25~DN2000

Origin:China

HS Code:8481804090

Production Capacity:60000PCS/Year

Product Description

Future Valve - Dn50 GOST Standard Wafer Butterfly Valve (D71X-10/16)

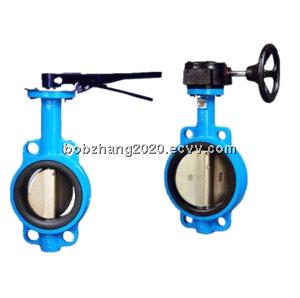

Wafer Type Butterfly Valve with Aluminum handle, butter fly valves, cast iron valve, wafer valve, wafer butterfly valve, butterfly valve manufacturer, stainless steel valves, butterfly valve with actuator, butterfly control valve, what is a butterfly valve

Related Keywords: Wafer butterfly valves, centerline butterfly valves, wafer valves, butterfly valves

Delivery & Packaging
Delivery Detail: General within 30 days or according to the order quantity.
Packaging Detail: Plywood case. (each PC into one bubble plastic bag, several PCS into one Plywood case).

Specifications
1. Working temperature: -45 to 200 Celsius.
2. Top Flange: ISO5211 or factory standard.
3. Nominal diameter: DN25~DN1200 (1"~48").
4. Design standard: API 609, BS EN 593, MSS SP-67, BS5155.
5. Suitable media: Petroleum, chemical industry, water, oil, gas etc.
6. Pressure test: API 598, ISO 5208, EN12266-1, DIN3230, BS5155.
7. Working pressure: PN10/PN16/PN25 or 10Bar/16Bar/25Bar or class 125/150.
8. Operator: Handle lever, worm gearbox(reducer), electric or pneumatic actuators etc.
9. Face-to-face conform to API 609, ISO 5752, BS EN 558, BS 5155, MS SP-67, DIN3202.
10. Flange: ANSI B 16.1 125/150, AS2129, BS4504, BS EN 1092, BS 10 table D/E, DIN 2501 PN 10/16/25, JIS 5K/10K.

Main parts materials
A) Key: Carbon Steel.
B) O-Ring: NBR, EPDM, Neoprene, Viton.
C) Bushing: PTFE, Nylon, Lubricated Bronze.
D) Seat: NBR, EPDM, Neoprene, Viton, PTFE, BUNA, Hypalon.
E) Taper Pin: Carbon steel; Stainless Steel: ASTM A276 Type 410/420/304/316, EN 1.4501.
F) Stem: Zinc Plated Carbon Steel; Stainless Steel: ASTM A276 Type 316/304/410/420, ASTM A582 Type 416.
G) Body/Disc: Cast Iron(CI): ASTM A126CL. B, DIN1691 GG25, EN 1561 EN-GJL-200, GB12226 HT200;
Ductile Iron(DI): ASTM A536 65-45-12, DIN 1693 GGG40, EN1563 EN-GJS-400-15, GB12227 QT450-10;
Stainless Steel: ASTM A351 CF8, CF8M; CF3, CF3M;
Carbon Steel: ASTM A216 WCB.
